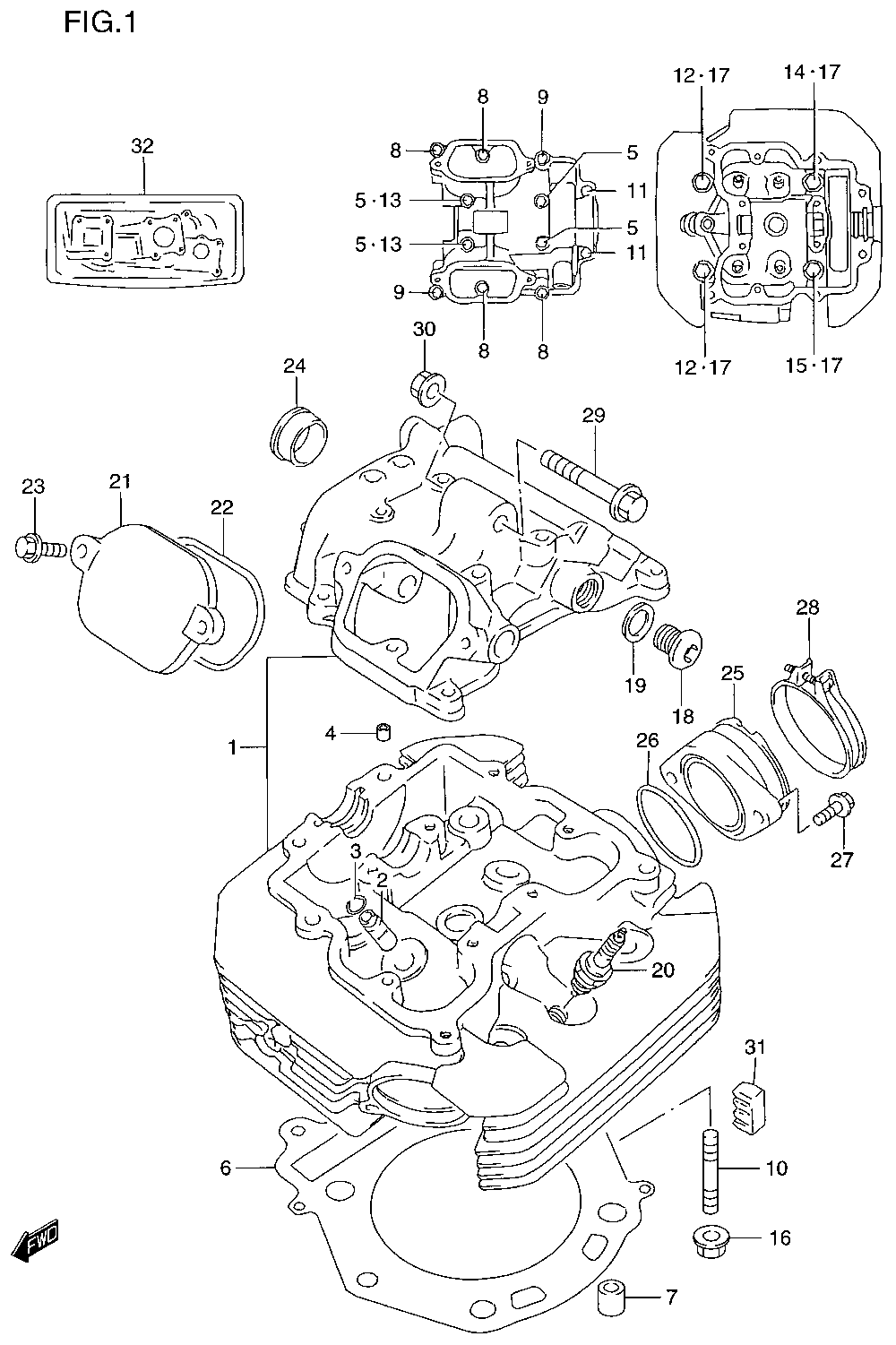

CYLINDER HEAD ASSY. для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
111100-32E00 HEAD ASSY., CYLINDERHEAD ASSY., CYLINDER
-
211115-32E70 ...GUIDE, VALVE...GUIDE, VALVE
-
309381-10004 ...RING, VALVE GUIDE...RING, VALVE GUIDE
-
409206-08001 ...PIN...PIN
-
509103-06102 ...BOLT (6X55)...BOLT (6X55)
-
611141-32E00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
704211-13189 PINPIN
-
801550-06253 BOLT (6X25)BOLT (6X25)
-
901550-06303 BOLT (6X30)BOLT (6X30)
-
1009108-08142 STUD BOLT (8X30)STUD BOLT (8X30)
-
1109103-06167 BOLT (6X115)BOLT (6X115)
-
1209103-10178 BOLT (10X180)BOLT (10X180)
-
1309168-06023 WASHERWASHER
-
1409103-10179 BOLT (10X190)BOLT (10X190)
-
1509103-10180 BOLT (10X200)BOLT (10X200)
-
1608316-10083 NUTNUT
-
1709168-10017 GASKETGASKET
-
1809248-14005 PLUG, HEAD COVERPLUG, HEAD COVER
-
1909168-14002 GASKETGASKET
-
20-109482-00460 SPARK PLUG (NGK,CR10E)SPARK PLUG (NGK,CR10E)
-
20-209482-00461 SPARK PLUG (ND,U31ESR-N)SPARK PLUG (ND,U31ESR-N)
-
20-309482-00458 SPARK PLUG (NGK,CR9E) (OPT)SPARK PLUG (NGK,CR9E) (OPT)
-
20-409482-00459 SPARK PLUG (ND,U27ESR-N) (OPT)SPARK PLUG (ND,U27ESR-N) (OPT)
-
2111175-44B00 CAP, INSPECTIONCAP, INSPECTION
-
22-211177-44B01 O-RINGO-RING
-
2301550-06203 BOLTBOLT
-
2409241-25007 PLUG, HEADPLUG, HEAD
-
2513110-32E00 PIPE, INTAKEPIPE, INTAKE
-
2609280-46002 O-RING (D:2.4 ID:45.7)O-RING (D:2.4 ID:45.7)
-
2709126-06014 SCREW (6X16)SCREW (6X16)
-
2809402-58208 CLAMPCLAMP
-
2909103-08332 BOLT (8X53)BOLT (8X53)
-
30-208319-31083 NUT (GREEN)NUT (GREEN)
-
3111151-32E00 PAD, RUBBERPAD, RUBBER
-
32-311400-32872 GASKET SETGASKET SET
