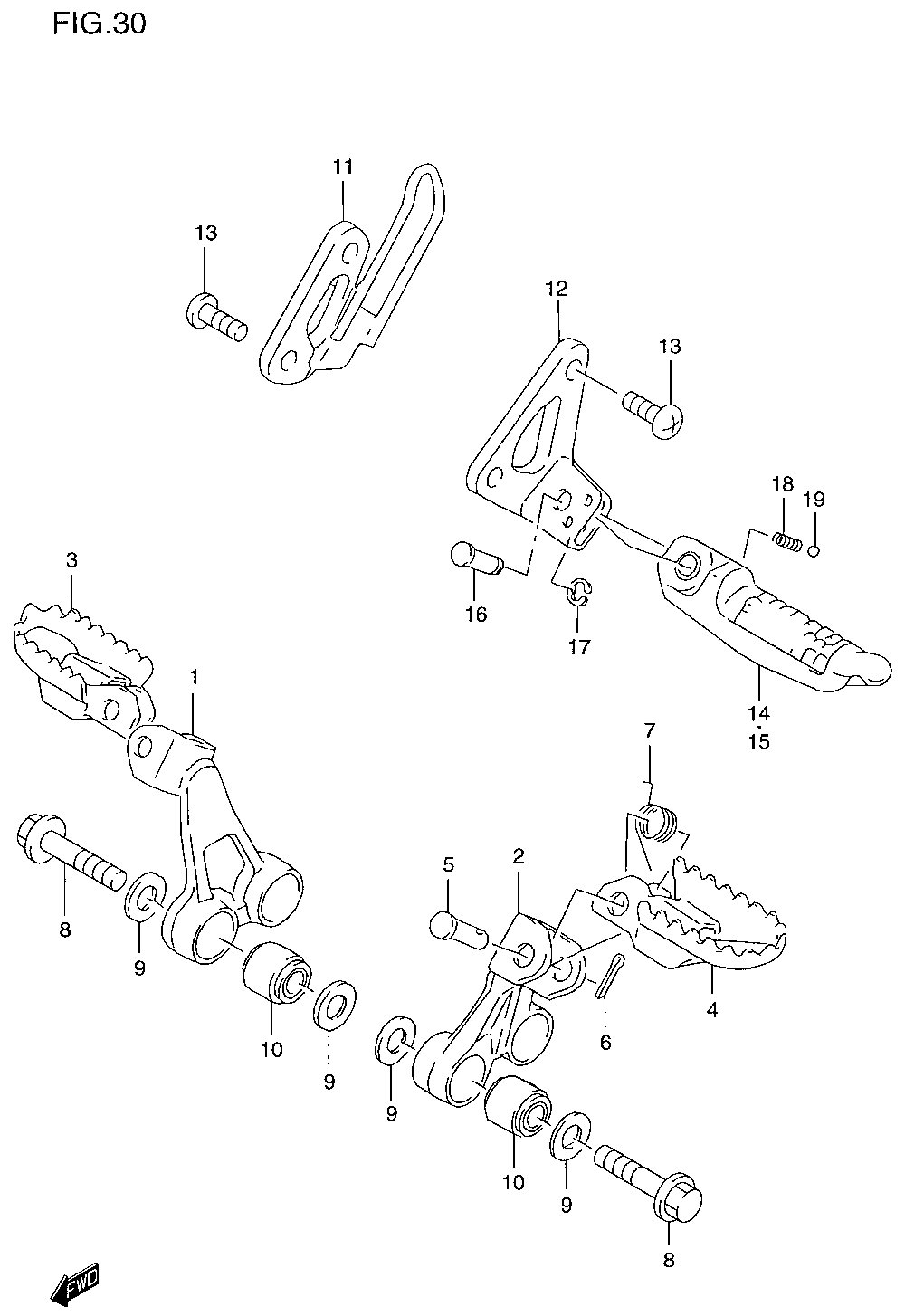

FOOTREST ASSY. для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
143510-32E00 BAR, FOOTREST (RIGHT)BAR, FOOTREST (RIGHT)
-
243520-32E00 BAR, FOOTREST (LEFT)BAR, FOOTREST (LEFT)
-
3-243550-14D30 FOOTREST (FRONT/RIGHT)FOOTREST (FRONT/RIGHT)
-
4-243560-14D30 FOOTREST (FRONT/LEFT)FOOTREST (FRONT/LEFT)
-
509200-10013 PINPIN
-
604111-20208 COTTER PINCOTTER PIN
-
709448-15004 SPRINGSPRING
-
809103-10232 BOLTBOLT
-
9-209160-10124 WASHERWASHER
-
1009319-10033 BUSHBUSH
-
1143650-32E00-019 BRACKET, PILLION (RIGHT/BLACK)BRACKET, PILLION (RIGHT/BLACK)
-
1243750-32E00-019 BRACKET, PILLION (LEFT/BLACK)BRACKET, PILLION (LEFT/BLACK)
-
1309106-08118 BOLT, BRACKETBOLT, BRACKET
-
1443610-23E00 BAR (RIGHT)BAR (RIGHT)
-
1543710-23E00 BAR (LEFT)BAR (LEFT)
-
1609208-08011 PINPIN
-
1708332-11063 E RINGE RING
-
1809440-05005 SPRINGSPRING
-
1906111-07004 BALLBALL
