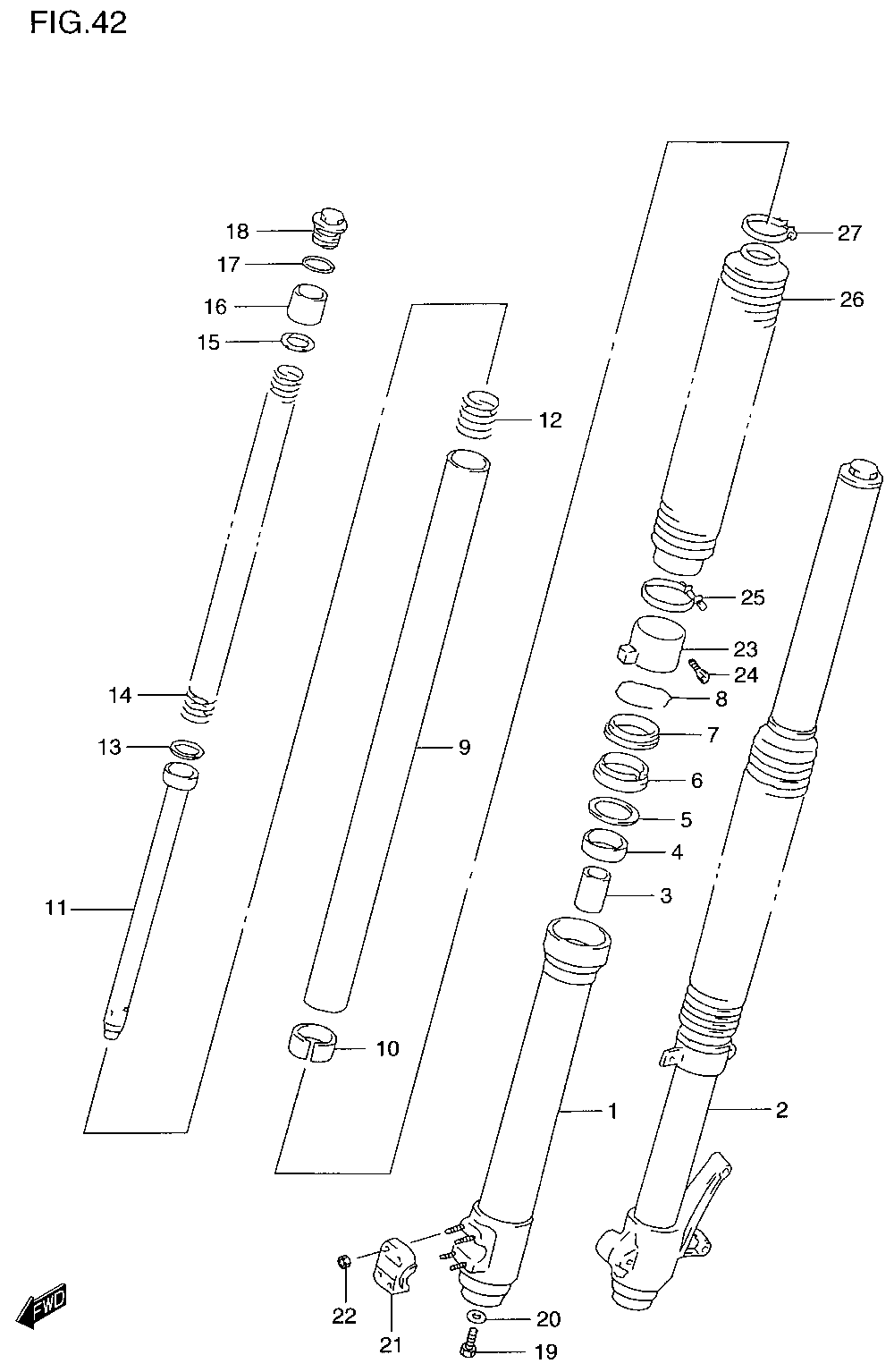

SUSPENSION - FRONT FORK для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
1A51103-32E00 DAMPER ASSY, FORK (FRONT/RIGHT)DAMPER ASSY, FORK (FRONT/RIGHT)
-
1A51104-32E00 DAMPER ASSY, FORK (FRONT/LEFT)DAMPER ASSY, FORK (FRONT/LEFT)
-
151130-32E00 ...TUBE (OUTER/RIGHT)...TUBE (OUTER/RIGHT)
-
251140-32E00 ...TUBE (OUTER/LEFT)...TUBE (OUTER/LEFT)
-
351195-06C00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
451167-40C00 ...METAL, SLIDE...METAL, SLIDE
-
551158-14200 ...WASHER...WASHER
-
651153-14330 ...SEAL, OIL...SEAL, OIL
-
751173-14330 ...SEAL, DUST...SEAL, DUST
-
851156-14200 ...RING, SNAP...RING, SNAP
-
951110-32E00 ...TUBE (INNER)...TUBE (INNER)
-
1051121-40C00 ...PISTON...PISTON
-
1151190-32E00 ...CYLINDER...CYLINDER
-
1251177-14330 ...SPRING...SPRING
-
1351196-31D00 ...RING...RING
-
1451171-32E00 ...SPRING...SPRING
-
1551172-32E00 ...WASHER...WASHER
-
1651176-32E00 ...SPACER...SPACER
-
1751117-14200 ...O-RING...O-RING
-
1851351-31D00 ...CAP...CAP
-
1951147-16510 ...BOLT...BOLT
-
2051148-41310 ...GASKET...GASKET
-
2151132-32E00 ...HOLDER, AXLE (RIGHT)...HOLDER, AXLE (RIGHT)
-
2208316-10067 ...NUT...NUT
-
2351203-32E00 GUIDE, BOOTGUIDE, BOOT
-
2407130-05207 BOLTBOLT
-
2551576-00B00 BAND, BOOT (LOWER)BAND, BOOT (LOWER)
-
26-251571-32E00-1LU BOOT (GRAY) (FOR J5F)BOOT (GRAY) (FOR J5F)
-
26-351571-32E00-019 BOOT (BLACK) (FOR N9J)BOOT (BLACK) (FOR N9J)
-
2751575-32E00 BAND, BOOT (UPPER)BAND, BOOT (UPPER)
