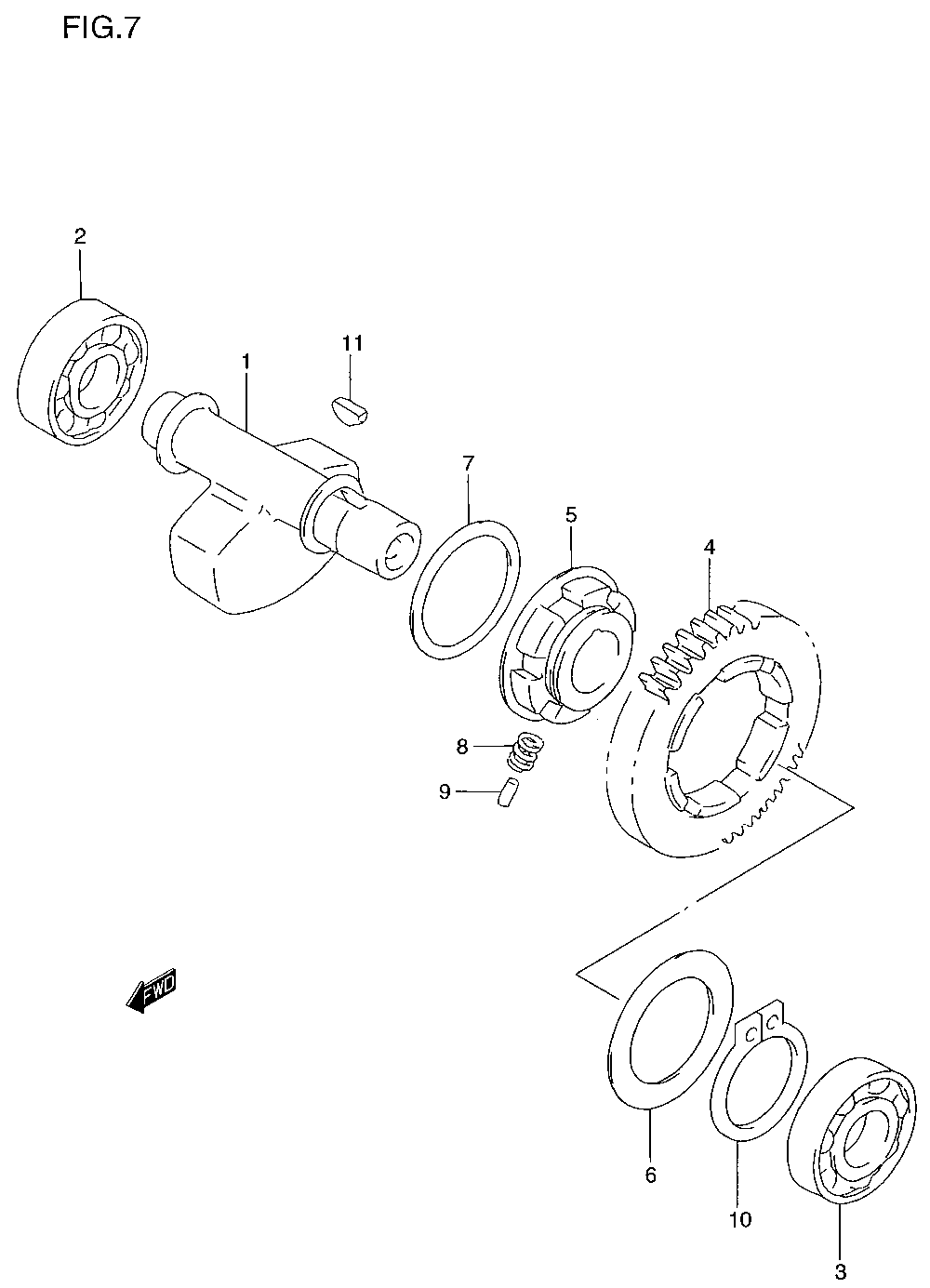

CRANK BALANCER SHAFT для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
112651-32E00 BALANCER, CRANKBALANCER, CRANK
-
209262-22029 BEARING (RIGHT) (22X56X16)BEARING (RIGHT) (22X56X16)
-
309262-20121 BEARING (LEFT) (20X47X14)BEARING (LEFT) (20X47X14)
-
412666-32E00 GEAR, BALANCER DRIVEN (TEETH 43)GEAR, BALANCER DRIVEN (TEETH 43)
-
512669-32E00 RACERACE
-
609164-38003 WASHERWASHER
-
708211-38582 WASHER, DRIVEN GEARWASHER, DRIVEN GEAR
-
809440-09031 SPRINGSPRING
-
909202-04017 PINPIN
-
1008331-31383 CIRCLIPCIRCLIP
-
1109420-04008 KEYKEY
