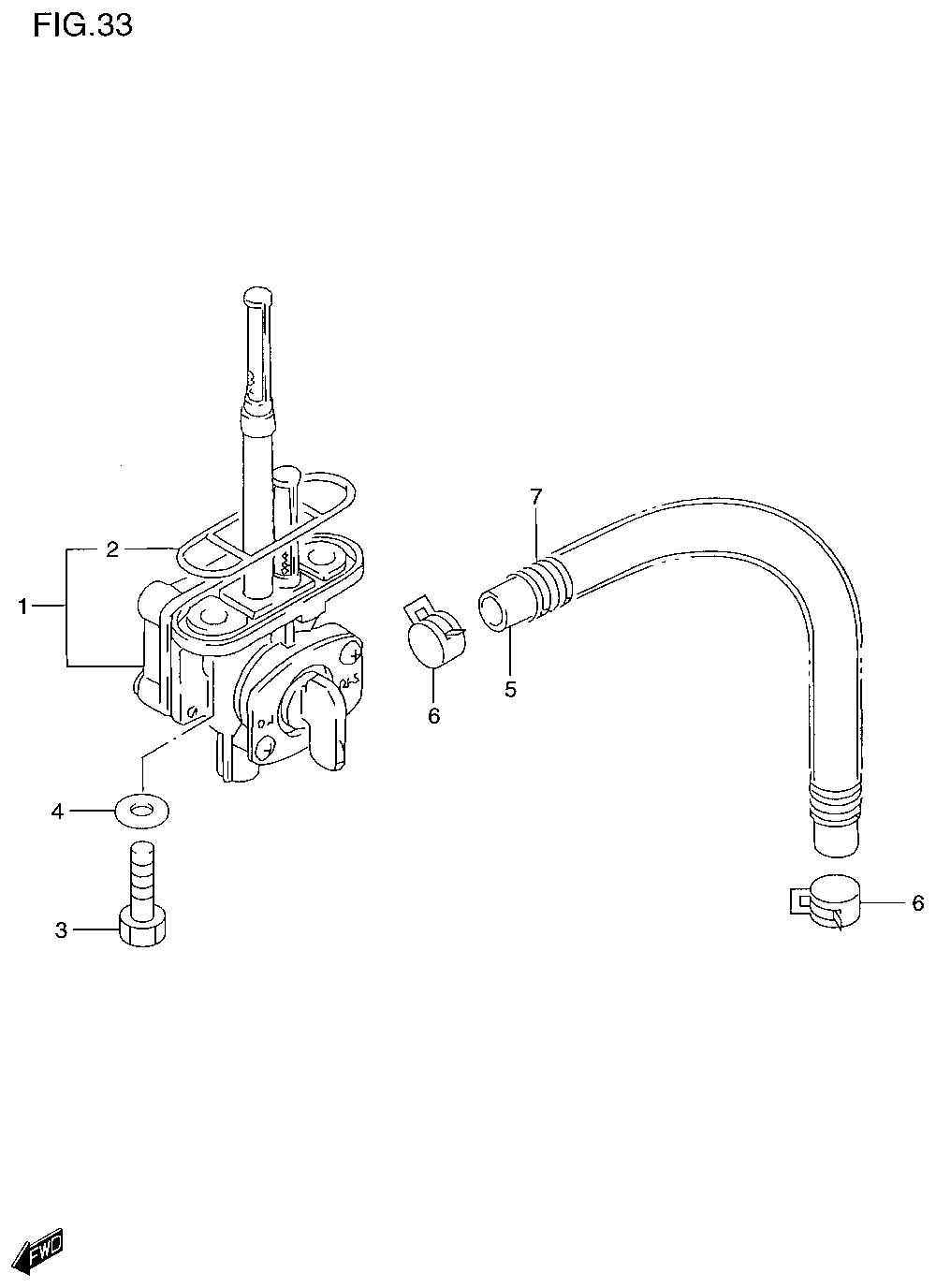

FUEL COCK для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
144300-32E00 COCK ASSY., FUELCOCK ASSY., FUEL
-
244348-87420 ...O RING...O RING
-
309128-06057 BOLTBOLT
-
409168-06026 GASKETGASKET
-
5-309354-70113-600 HOSE, FUEL (L:600)HOSE, FUEL (L:600)
-
609401-10409 CLIPCLIP
-
709440-13041 SPRINGSPRING
