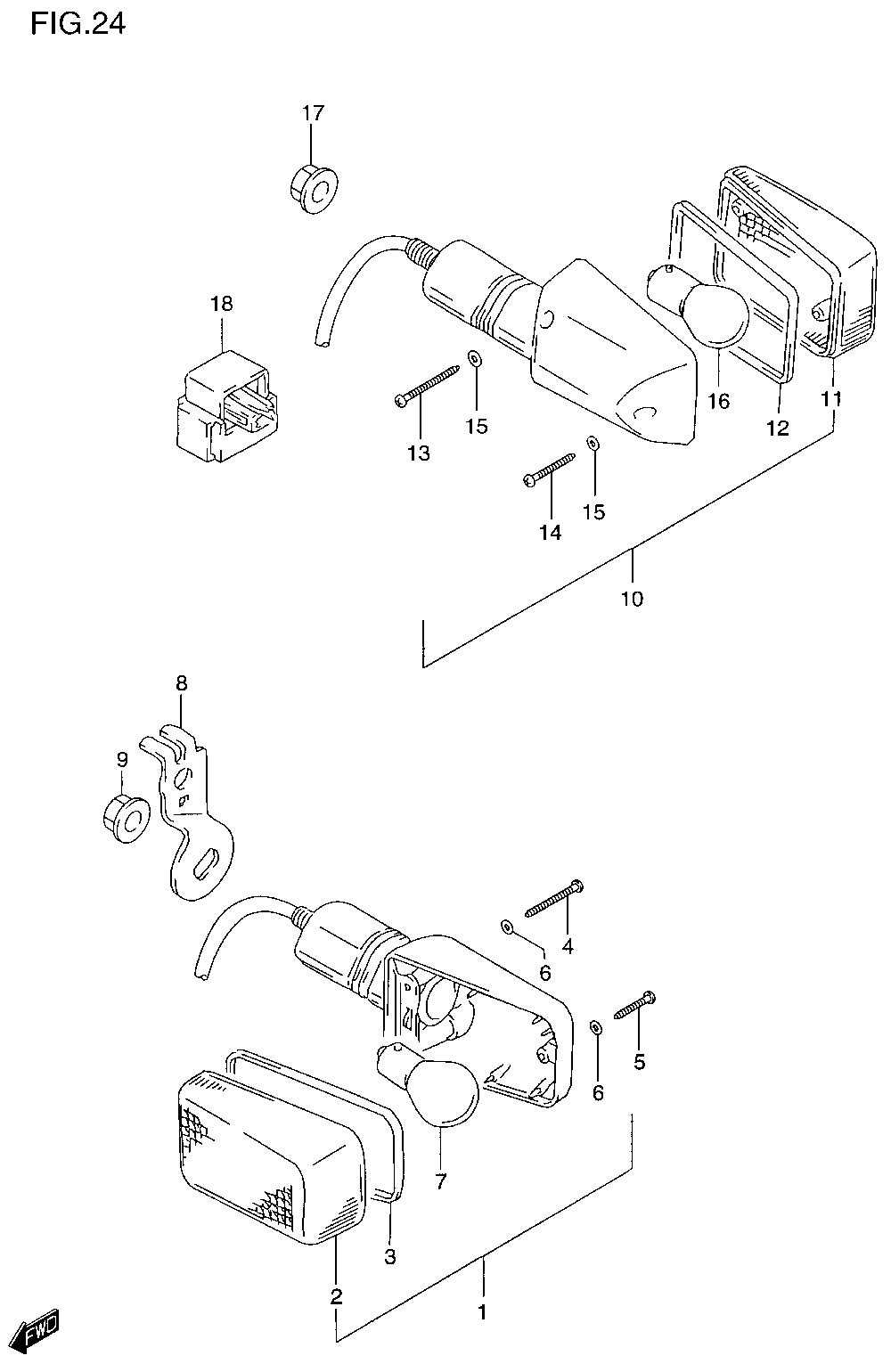

TURN SIGNAL ASSY. для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
135601-29E30 LAMP ASSY., TURNSIGNAL (FRONT)LAMP ASSY., TURNSIGNAL (FRONT)
-
235612-17C20 ...LENS...LENS
-
335613-27A00 ...GASKET...GASKET
-
435623-27A00 ...TAPPING SCREW...TAPPING SCREW
-
535725-40511 ...TAPPING SCREW...TAPPING SCREW
-
635627-27A02 ...GASKET...GASKET
-
709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
8-135671-32E00 BRACKET (FRONT/RIGHT)BRACKET (FRONT/RIGHT)
-
8-235681-32E00 BRACKET (FRONT/LEFT)BRACKET (FRONT/LEFT)
-
908316-10103 NUTNUT
-
1035603-29E90 LAMP ASSY., TURN SIGNAL (REAR)LAMP ASSY., TURN SIGNAL (REAR)
-
1135652-17C20 ...LENS...LENS
-
1235613-27A00 ...GASKET...GASKET
-
1335623-27A00 ...TAPPING SCREW...TAPPING SCREW
-
1435725-40511 ...TAPPING SCREW...TAPPING SCREW
-
1535627-27A02 ...GASKET...GASKET
-
1609471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1708316-10103 NUTNUT
-
18-238610-26E00 RELAY ASSY., TURNSIGNALRELAY ASSY., TURNSIGNAL
