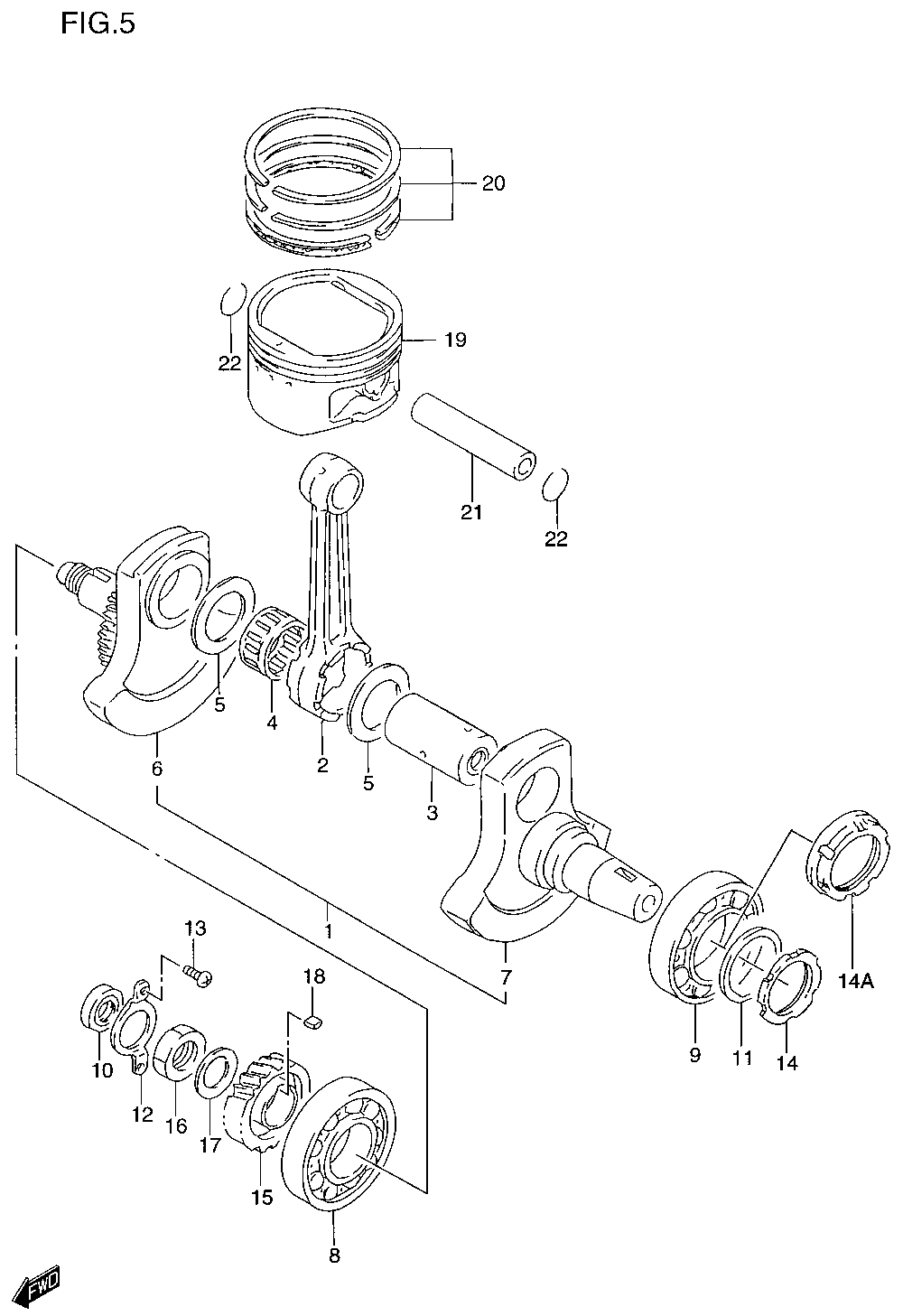

CRANKSHAFT W/ PISTONS для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
112000-32820 CRANKSHAFT SETCRANKSHAFT SET
-
212161-32E00 ...ROD, CONNECTING...ROD, CONNECTING
-
312211-32E00 ...PIN, CRANK...PIN, CRANK
-
409263-37004-0C0 ...BEARING (37X47X25)...BEARING (37X47X25)
-
509160-37006 ...WASHER...WASHER
-
612221-32810 ...CRANKSHAFT SET (RIGHT)...CRANKSHAFT SET (RIGHT)
-
712261-32E00 ...CRANKSHAFT (LEFT)...CRANKSHAFT (LEFT)
-
809262-40008 BEARING (RIGHT) (40X80X18)BEARING (RIGHT) (40X80X18)
-
909262-45011 BEARING (LEFT)BEARING (LEFT)
-
1009282-16002 OIL SEAL (RIGHT) (16X30X6)OIL SEAL (RIGHT) (16X30X6)
-
1212548-37400 PLATE (RIGHT)PLATE (RIGHT)
-
1302112-05083 SCREWSCREW
-
14A12664-04F00 NUTNUT
-
1521111-32E00 GEAR, PRIMARY DRIVE (NT:28)GEAR, PRIMARY DRIVE (NT:28)
-
1609140-20008 NUTNUT
-
1709164-20003 LOCK WASHERLOCK WASHER
-
18-209420-05007 KEY, GEARKEY, GEAR
-
1912111-32E00-0F0 PISTONPISTON
-
2012140-32E10 RING SET, PISTONRING SET, PISTON
-
2112151-14A01 PIN, PISTONPIN, PISTON
-
2209381-23003 CIRCLIPCIRCLIP
