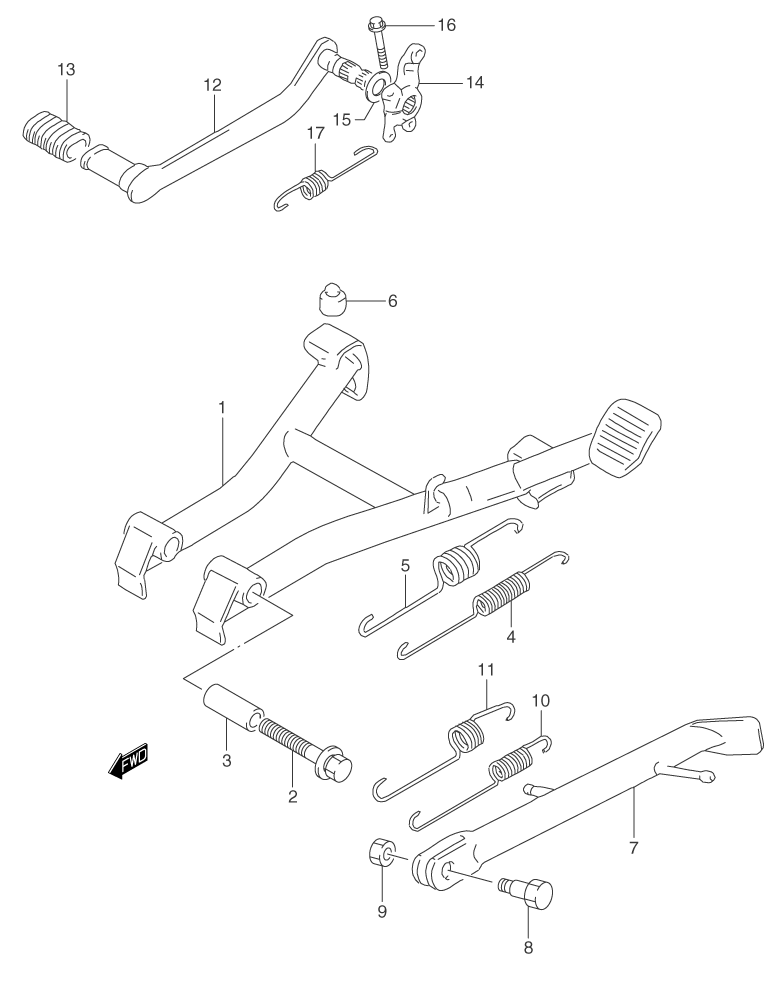

BRAKE PEDAL W/ STAND для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
142100-01D00 STAND (CENTER)STAND (CENTER)
-
201580-10603 BOLTBOLT
-
309180-10040 SPACERSPACER
-
409443-14059 SPRING (INNER)SPRING (INNER)
-
509443-22013 SPRING, (OUTER)SPRING, (OUTER)
-
609321-10017 CUSHIONCUSHION
-
742310-01D10-019 STAND, PROP (BLACK)STAND, PROP (BLACK)
-
809111-10027 BOLTBOLT
-
908319-21103 NUTNUT
-
1009443-15046 SPRING (INNER)SPRING (INNER)
-
1109443-22017 SPRING (OUTER)SPRING (OUTER)
-
1243110-01D12 PEDAL, BRAKEPEDAL, BRAKE
-
1325652-49300 RUBBERRUBBER
-
1443121-01D00 ARM, BRAKE RODARM, BRAKE ROD
-
1543212-04A00 WASHERWASHER
-
1601550-06253 BOLTBOLT
-
1709443-13028 SPRING, RETURNSPRING, RETURN
