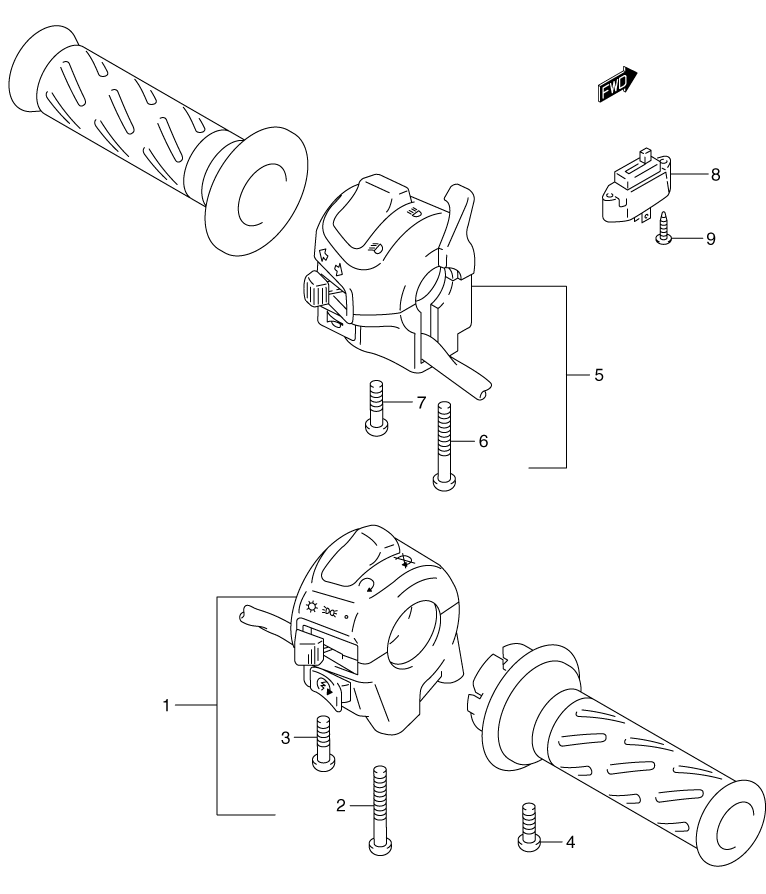

HANDLEBAR - SWITCHES для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
137200-27E31 SWITCH ASSY., HANDLE (RIGHT)SWITCH ASSY., HANDLE (RIGHT)
-
202112-05503 ...SCREW...SCREW
-
302112-05303 ...SCREW...SCREW
-
402112-05103 SCREW, THROTTLE CABLESCREW, THROTTLE CABLE
-
537400-23E30 SWITCH ASSY., HANDLE (LEFT)SWITCH ASSY., HANDLE (LEFT)
-
602112-05455 ...SCREW...SCREW
-
709125-05066 ...SCREW (5X25)...SCREW (5X25)
-
837560-38A00 SWITCH ASSY., CLUTCHSWITCH ASSY., CLUTCH
-
937564-26E00 SCREW, CLUTCH SWITCHSCREW, CLUTCH SWITCH
