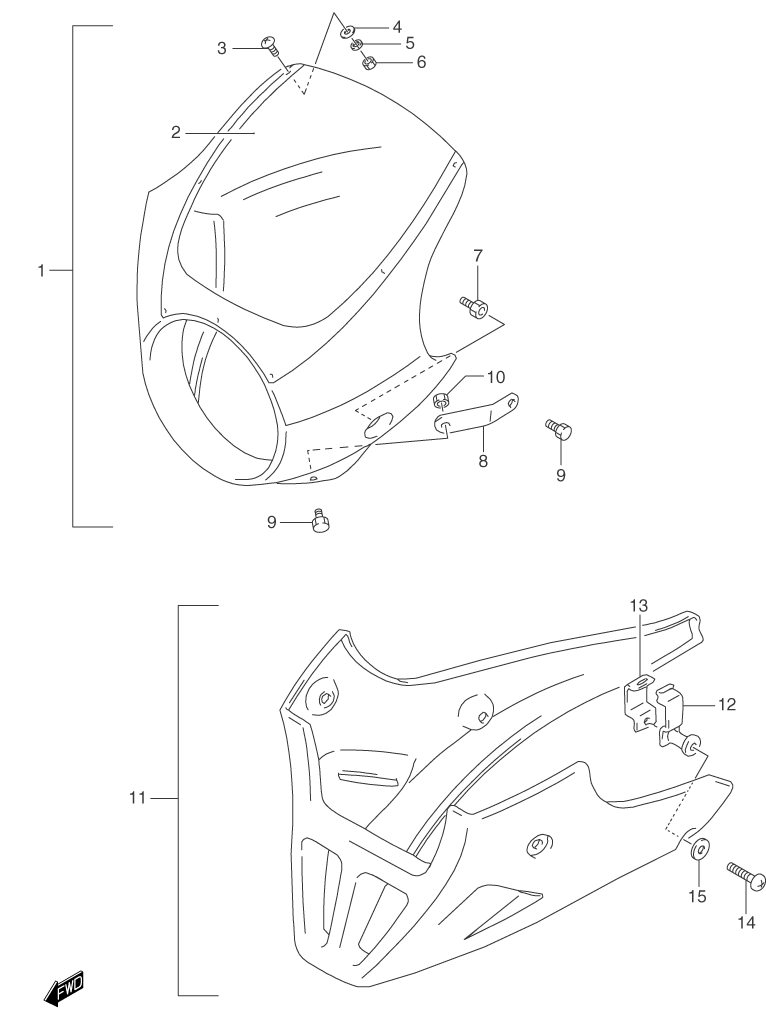

COWLING (OPTIONAL) для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-194402-01D60-YM7 COWLING ASSY. (UPPER (YM7 - BLUE) (US)COWLING ASSY. (UPPER (YM7 - BLUE) (US)
-
1-294402-01D60-YC2 COWLING ASSY. (UPPER) (YC2 - BLUE) (CANADA)COWLING ASSY. (UPPER) (YC2 - BLUE) (CANADA)
-
294432-01D60 ...SCREEN, WIND...SCREEN, WIND
-
302142-04123 ...SCREW...SCREW
-
408322-01043 ...WASHER...WASHER
-
508321-01043 ...LOCK WASHER...LOCK WASHER
-
608310-00043 ...NUT...NUT
-
794741-01D60 ...BOLT, HEADLAMP...BOLT, HEADLAMP
-
894511-01D60 ...BRACE, COWLING...BRACE, COWLING
-
901570-06167 ...BOLT...BOLT
-
1008310-00063 ...NUT...NUT
-
11-194401-01810-YM7 COWLING SET (UNDER) (YM7 - BLUE) (US)COWLING SET (UNDER) (YM7 - BLUE) (US)
-
11-294401-01810-YC2 COWLING SET (UNDER) (YC2 - BLUE) (CANADA)COWLING SET (UNDER) (YC2 - BLUE) (CANADA)
-
1294580-01D50 ...BRACKET (OUTER)...BRACKET (OUTER)
-
1394582-01D50 ...BRACKET (INNER)...BRACKET (INNER)
-
1402112-36457 ...SCREW...SCREW
-
1509160-06084 ...WASHER...WASHER
