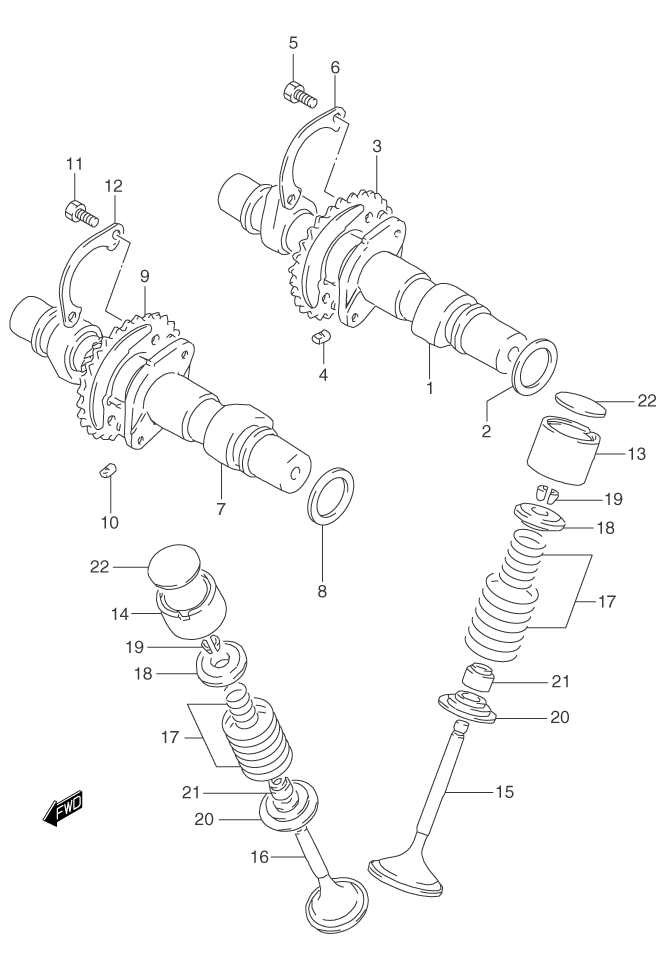

CAMSHAFT W/ VALVES для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
112710-01830 CAMSHAFT SET, INTAKECAMSHAFT SET, INTAKE
-
2-109181-22167 ...WASHER (T:1.0)...WASHER (T:1.0)
-
2-209160-22074 ...WASHER (T:1.1) (OPT)...WASHER (T:1.1) (OPT)
-
2-309160-22075 ...WASHER (T:1.2) (OPT)...WASHER (T:1.2) (OPT)
-
2-409160-22076 ...WASHER (T:1.3) (OPT)...WASHER (T:1.3) (OPT)
-
312740-45042 SPROCKET, INTAKE (NT:30)SPROCKET, INTAKE (NT:30)
-
412748-44000 PINPIN
-
509111-06027 BOLT (6X12.5)BOLT (6X12.5)
-
612747-44000 WASHERWASHER
-
712720-01820 CAMSHAFT SET, EXHAUSTCAMSHAFT SET, EXHAUST
-
8-109181-22167 ...WASHER (T:1.0)...WASHER (T:1.0)
-
8-209160-22074 ...WASHER (T:1.1) (OPT)...WASHER (T:1.1) (OPT)
-
8-309160-22075 ...WASHER (T:1.2) (OPT)...WASHER (T:1.2) (OPT)
-
8-409160-22076 ...WASHER (T:1.3) (OPT)...WASHER (T:1.3) (OPT)
-
912750-45041 SPROCKET, EXHAUST (NT:30)SPROCKET, EXHAUST (NT:30)
-
1012748-44000 PINPIN
-
1109111-06027 BOLT (6X12.5)BOLT (6X12.5)
-
1212747-44000 WASHERWASHER
-
1312891-15500 TAPPET, INTAKETAPPET, INTAKE
-
1412891-15500 TAPPET, EXHAUSTTAPPET, EXHAUST
-
1512911-01D00 VALVE, INTAKEVALVE, INTAKE
-
1612912-01D00 VALVE, EXHAUSTVALVE, EXHAUST
-
1712920-44110 SPRING SET, VALVESPRING SET, VALVE
-
1812931-45000 RETAINER, SPRINGRETAINER, SPRING
-
1912932-45010 COTTER, VALVECOTTER, VALVE
-
2012933-45001 SEAT, SPRINGSEAT, SPRING
-
2109289-07002 OIL SEAL (7X14.4X9)OIL SEAL (7X14.4X9)
-
22-112892-45000-215 SHIM, TAPPET (T:2.15)SHIM, TAPPET (T:2.15)
-
22-212892-45000-220 SHIM, TAPPET (T:2.20)SHIM, TAPPET (T:2.20)
-
22-312892-45000-225 SHIM, TAPPET (T:2.25)SHIM, TAPPET (T:2.25)
-
22-412892-45000-230 SHIM, TAPPET (T:2.30)SHIM, TAPPET (T:2.30)
-
22-512892-45000-235 SHIM, TAPPET (T:2.35)SHIM, TAPPET (T:2.35)
-
22-612892-45000-240 SHIM, TAPPET (T:2.40)SHIM, TAPPET (T:2.40)
-
22-712892-45000-245 SHIM, TAPPET (T:2.45)SHIM, TAPPET (T:2.45)
-
22-812892-45000-250 SHIM, TAPPET (T:2.50)SHIM, TAPPET (T:2.50)
-
22-912892-45000-255 SHIM, TAPPET (T:2.55)SHIM, TAPPET (T:2.55)
-
22-1012892-45000-260 SHIM, TAPPET (T:2.60)SHIM, TAPPET (T:2.60)
-
22-1112892-45000-265 SHIM, TAPPET (T:2.65)SHIM, TAPPET (T:2.65)
-
22-1212892-45000-270 SHIM, TAPPET (T:2.70)SHIM, TAPPET (T:2.70)
-
22-1312892-45000-275 SHIM, TAPPET (T:2.75)SHIM, TAPPET (T:2.75)
-
22-1412892-45000-280 SHIM, TAPPET (T:2.80)SHIM, TAPPET (T:2.80)
-
22-1512892-45000-285 SHIM, TAPPET (T:2.85)SHIM, TAPPET (T:2.85)
-
22-1612892-45000-290 SHIM, TAPPET (T:2.90)SHIM, TAPPET (T:2.90)
-
22-1712892-45000-295 SHIM, TAPPET (T:2.95)SHIM, TAPPET (T:2.95)
-
22-1812892-45000-300 SHIM, TAPPET (T:3.00)SHIM, TAPPET (T:3.00)
-
22-1912892-45000-305 SHIM, TAPPET (T:3.05)SHIM, TAPPET (T:3.05)
-
22-2012892-45000-310 SHIM, TAPPET (T:3.10)SHIM, TAPPET (T:3.10)
-
2312800-45811 SHIM SET (OPT)SHIM SET (OPT)
-
2499000-69521 ...CASE (OPT)...CASE (OPT)
