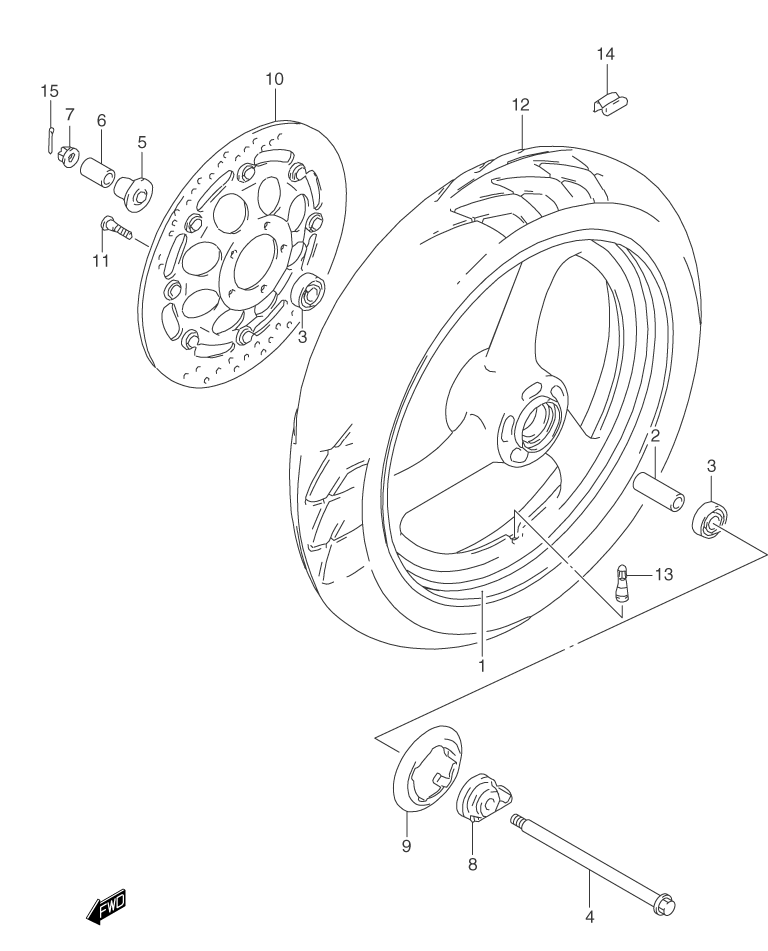

WHEEL - FRONT для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
154111-34C00-Y6G WHEEL (FRONT) (Y6G - SILVER) (MT3.00X17)WHEEL (FRONT) (Y6G - SILVER) (MT3.00X17)
-
209180-15011 SPACER (15.3X21.7X63)SPACER (15.3X21.7X63)
-
308123-63027 BEARINGBEARING
-
454711-01D00 AXLE (FRONT)AXLE (FRONT)
-
554740-33410 SPACER, AXLE (FRONT/RIGHT)SPACER, AXLE (FRONT/RIGHT)
-
654741-01D00 SPACER, AXLE (FRONT/RIGHT)SPACER, AXLE (FRONT/RIGHT)
-
709159-12027 NUTNUT
-
854600-01D01 BOX ASSY., SPEEDOMETER GEARBOX ASSY., SPEEDOMETER GEAR
-
954871-38C00-0SR COVER, HUB (FRONT/LEFT) (OSR - GRAY)COVER, HUB (FRONT/LEFT) (OSR - GRAY)
-
1059210-01D21 DISC, BRAKE (FRONT/RIGHT)DISC, BRAKE (FRONT/RIGHT)
-
1109106-08125 BOLT (8X33)BOLT (8X33)
-
1255110-01D00 TIRE (FRONT) 110/70-17 54H BRIDGESTONETIRE (FRONT) 110/70-17 54H BRIDGESTONE
-
1343130-24A00 VALVE ASSY., WHEEL RIM (TR412)VALVE ASSY., WHEEL RIM (TR412)
-
14-155411-00A00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
14-255412-00A01 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
1504111-30308 PIN, COTTERPIN, COTTER
