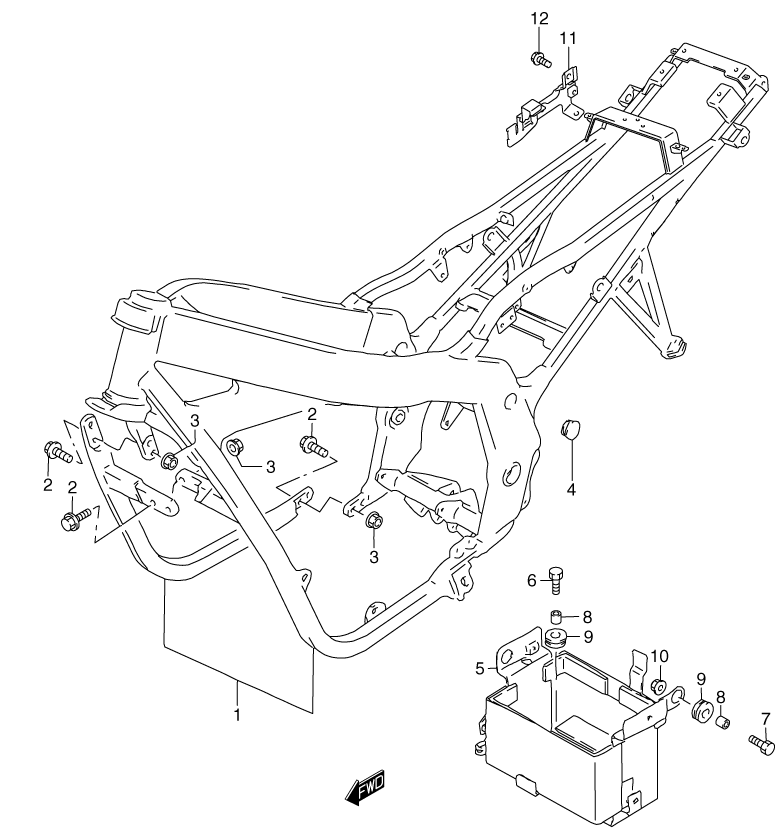

FRAME для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
141102-01880-13L FRAME SET (13L -SILVER)FRAME SET (13L -SILVER)
-
209103-10334 ...BOLT...BOLT
-
308319-31107 ...NUT...NUT
-
443585-01D00 CAP, BODYCAP, BODY
-
541540-01D31 HOLDER, BATTERYHOLDER, BATTERY
-
609116-06167 BOLT (LOWER)BOLT (LOWER)
-
709116-06168 BOLT (UPPER)BOLT (UPPER)
-
809180-06038 SPACER (6.1X9X7.5)SPACER (6.1X9X7.5)
-
909320-08021 CUSHIONCUSHION
-
1008313-20063 NUTNUT
-
1147410-01D10 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1201550-06163 BOLTBOLT
