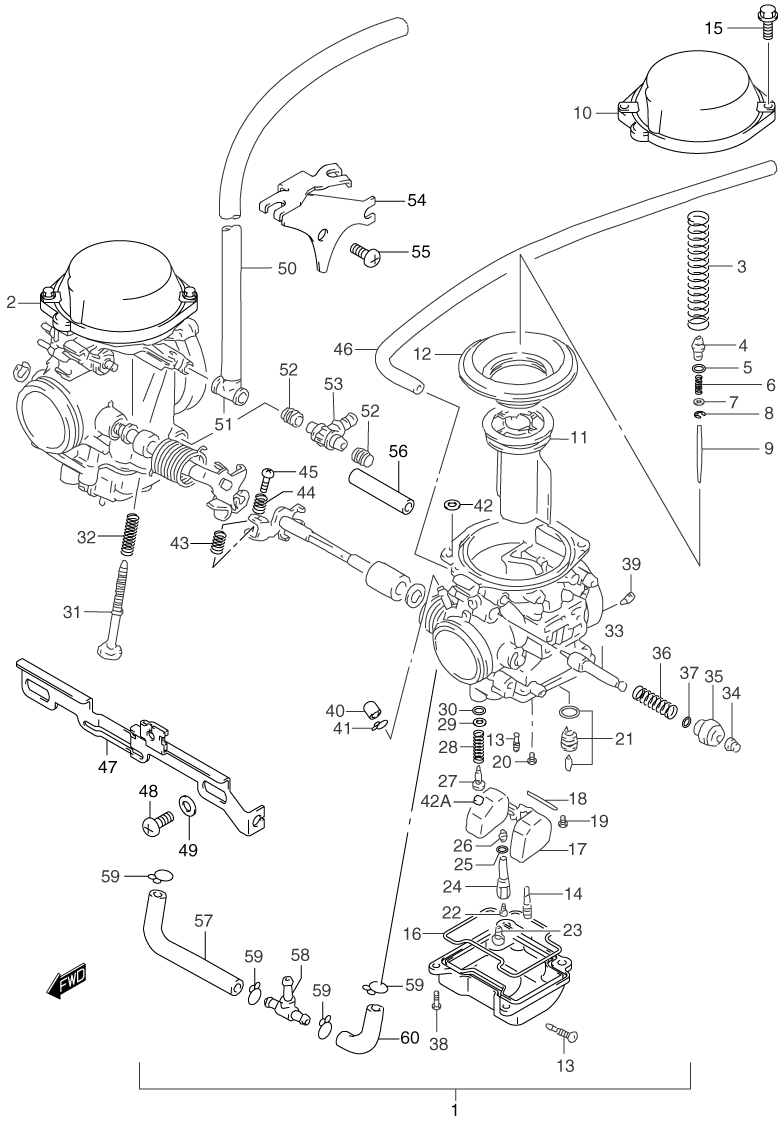

CARBURETOR ASSY. для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-113201-01DH0 CARBURETOR ASSY. (LEFT)CARBURETOR ASSY. (LEFT)
-
1-213201-01DJ0 CARBURETOR ASSY. (LEFT) (CALIFORNIA ONLY)CARBURETOR ASSY. (LEFT) (CALIFORNIA ONLY)
-
2-113202-01DH0 CARBURETOR ASSY. (RIGHT)CARBURETOR ASSY. (RIGHT)
-
2-213202-01DJ0 CARBURETOR ASSY. (RIGHT) (CALIFORNIA ONLY)CARBURETOR ASSY. (RIGHT) (CALIFORNIA ONLY)
-
313573-19E00 ...SPRING...SPRING
-
413418-33E00 ...HOLDER...HOLDER
-
509280-05004 ...O-RING (D:1.9,ID:4.8)...O-RING (D:1.9,ID:4.8)
-
613481-13F00 ...SPRING...SPRING
-
713382-19E00 ...WASHER...WASHER
-
813387-13F00 ...E-RING...E-RING
-
913383-01DH0 ...NEEDLE, JET (5DH42-1)...NEEDLE, JET (5DH42-1)
-
1013502-07F00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
1113501-29FA0 ...VALVE, PISTON...VALVE, PISTON
-
1213507-17C01 ...DIAPHRAGM...DIAPHRAGM
-
1313247-02340 ...SCREW, DRAIN...SCREW, DRAIN
-
1409492-17016 ...JET, PILOT...JET, PILOT
-
1502112-04107 ...SCREW...SCREW
-
1613258-44B00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
1713250-04F00 ...FLOAT ASSY....FLOAT ASSY.
-
1813254-01010 ...PIN, FLOAT...PIN, FLOAT
-
1902112-04083 ...SCREW...SCREW
-
2013602-05A10 ...SCREW...SCREW
-
2113370-33E80 ...VALVE ASSY., NEEDLE...VALVE ASSY., NEEDLE
-
2209491-25018 ...JET, MAIN (127.5)...JET, MAIN (127.5)
-
2309491-60010 ...JET, MAIN (60)...JET, MAIN (60)
-
2413385-07F00 ...HOLDER, JET...HOLDER, JET
-
2513246-43010 ...O-RING...O-RING
-
2609494-00949 ...JET, NEEDLE (P-5M)...JET, NEEDLE (P-5M)
-
2713279-33E00 ...SCREW, PILOT (2 1/2)...SCREW, PILOT (2 1/2)
-
2813268-47070 ...SPRING...SPRING
-
2913291-29900 ...WASHER...WASHER
-
3013295-29900 ...O-RING...O-RING
-
3113267-13F00 ...ADJUSTER (RIGHT)...ADJUSTER (RIGHT)
-
3213271-33C00 ...SPRING (RIGHT)...SPRING (RIGHT)
-
3313411-05300 ...PLUNGER ASSY....PLUNGER ASSY.
-
3413682-31210 ...CAP...CAP
-
3513418-44080 ...HOLDER, GUIDE...HOLDER, GUIDE
-
3613417-26D00 ...SPRING...SPRING
-
3713278-47090 ...O-RING...O-RING
-
3813247-33E00 ...SCREW...SCREW
-
3909493-32007 ...JET, AIR (160)...JET, AIR (160)
-
4013274-84000 ...CAP...CAP
-
4109401-06101 ...CLIP...CLIP
-
4213295-33010 ...O-RING...O-RING
-
42A13281-05A00 ...PLUG...PLUG
-
4313268-96111 SPRINGSPRING
-
4413271-44B00 SPRINGSPRING
-
4513267-44B00 SCREWSCREW
-
4613683-01DF0 HOSEHOSE
-
4713413-01DE0 PLATEPLATE
-
4813602-04F00 SCREWSCREW
-
4913557-33E00 PACKINGPACKING
-
5013683-01DE0 HOSEHOSE
-
5113683-01DB0 HOSEHOSE
-
5213673-44B00 SEALSEAL
-
5313685-33EQ0 NIPPLENIPPLE
-
5413565-01DE0 BRACKETBRACKET
-
5502122-05103 SCREWSCREW
-
5613685-01DB0 PIPEPIPE
-
5713684-48B10 HOSE (CALIFORNIA ONLY)HOSE (CALIFORNIA ONLY)
-
5813685-48B00 NIPPLE (CALIFORNIA ONLY)NIPPLE (CALIFORNIA ONLY)
-
5909401-10410 CLIP (CALIFORNIA ONLY)CLIP (CALIFORNIA ONLY)
-
6013684-48B10 HOSE (CALIFORNIA ONLY)HOSE (CALIFORNIA ONLY)
