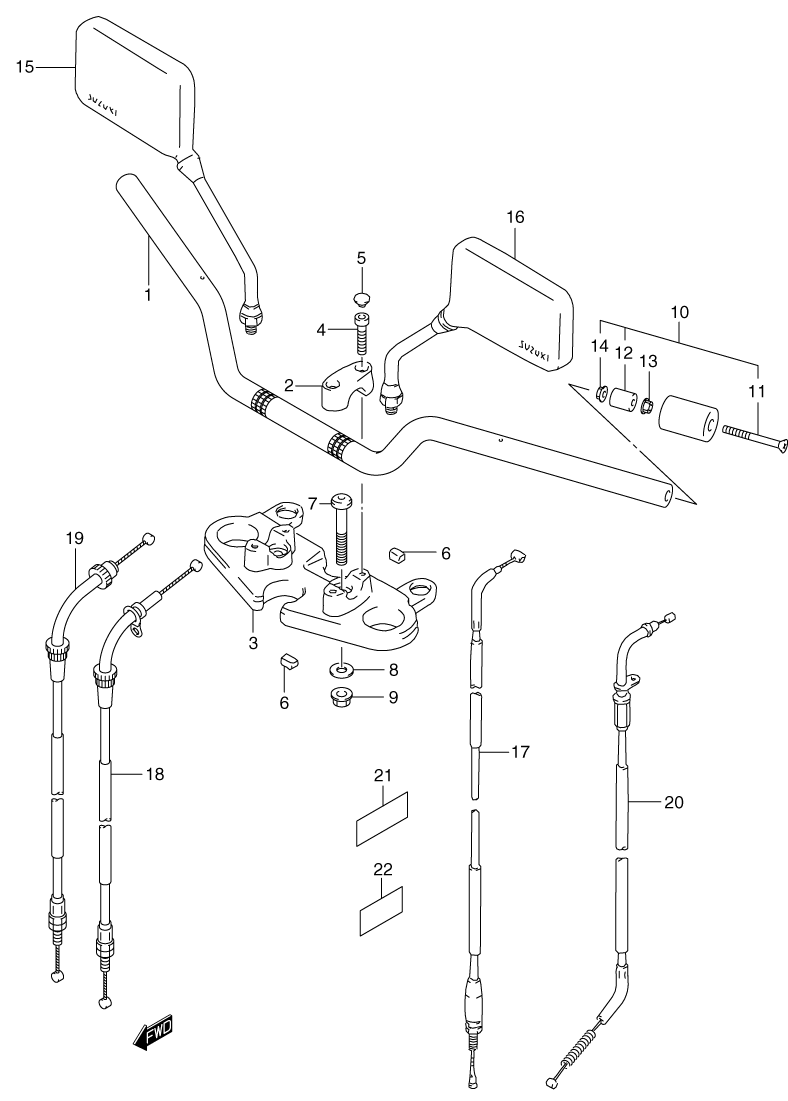

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
156111-01DA0 HANDLEBARHANDLEBAR
-
256211-31F00-0FP CLAMP (UPPER) (OFP - SILVER)CLAMP (UPPER) (OFP - SILVER)
-
356221-01D50-0FP HOLDER (LOWER) (OFP - SILVER)HOLDER (LOWER) (OFP - SILVER)
-
407130-08307 BOLTBOLT
-
509250-06011 CAPCAP
-
656241-01D00 CUSHION, HOLDERCUSHION, HOLDER
-
707130-10653 BOLTBOLT
-
809160-10094 WASHERWASHER
-
908319-31107 NUTNUT
-
1056200-01840 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
1102122-06853 ...SCREW...SCREW
-
1256272-44500 ...EXPANDER...EXPANDER
-
1308316-10083 ...NUT (OUTER)...NUT (OUTER)
-
1409159-06024 ...NUT (INNER)...NUT (INNER)
-
1556500-03F30 MIRROR ASSY., VIEW (REAR) (RIGHT)MIRROR ASSY., VIEW (REAR) (RIGHT)
-
1656600-03F30 MIRROR ASSY., VIEW (REAR) (LEFT)MIRROR ASSY., VIEW (REAR) (LEFT)
-
1758200-01DA0 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1858300-01DA0 CABLE ASSY., THROTTLE NO.1CABLE ASSY., THROTTLE NO.1
-
1958300-01DB0 CABLE ASSY., THROTTLE NO.2CABLE ASSY., THROTTLE NO.2
-
2058410-01D70 CABLE, STARTERCABLE, STARTER
-
2194474-22D00 PROTECTOR, CABLEPROTECTOR, CABLE
-
2272895-78A30 PROTECTOR, CABLEPROTECTOR, CABLE
