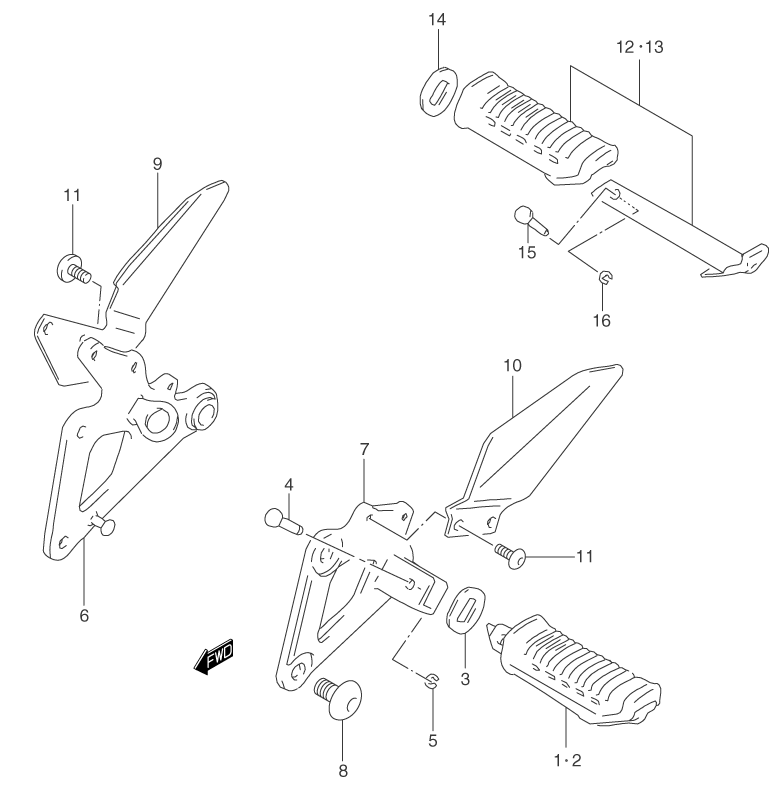

FOOTREST для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
143550-01D00 RUBBER ASSY. (FRONT) (RIGHT)RUBBER ASSY. (FRONT) (RIGHT)
-
243560-01D00 RUBBER ASSY. (FRONT) (LEFT)RUBBER ASSY. (FRONT) (LEFT)
-
343631-34A01 WASHER, RUBBERWASHER, RUBBER
-
409208-06005 PINPIN
-
508332-11043 E-RINGE-RING
-
643510-01D00-13L BRACKET, FOOTREST (FRONT) (RIGHT) (13L -SILVER)BRACKET, FOOTREST (FRONT) (RIGHT) (13L -SILVER)
-
743520-01D00-13L BRACKET, FOOTREST (FRONT) (LEFT) (13L -SILVER)BRACKET, FOOTREST (FRONT) (LEFT) (13L -SILVER)
-
809106-08094 BOLT, BRACKETBOLT, BRACKET
-
943586-01D10 GUARD, FOOTREST (FRONT) (RIGHT)GUARD, FOOTREST (FRONT) (RIGHT)
-
1043596-01D10 GUARD, FOOTREST (FRONT) (LEFT)GUARD, FOOTREST (FRONT) (LEFT)
-
1109139-06062 BOLT, GUARDBOLT, GUARD
-
1243600-12B00 FOOTREST ASSY., PILLION (RIGHT)FOOTREST ASSY., PILLION (RIGHT)
-
1343700-12B00 FOOTREST ASSY., PILLION (LEFT)FOOTREST ASSY., PILLION (LEFT)
-
1443631-34A01 WASHER, RUBBERWASHER, RUBBER
-
1509208-06005 PINPIN
-
1608332-11043 E-RINGE-RING
