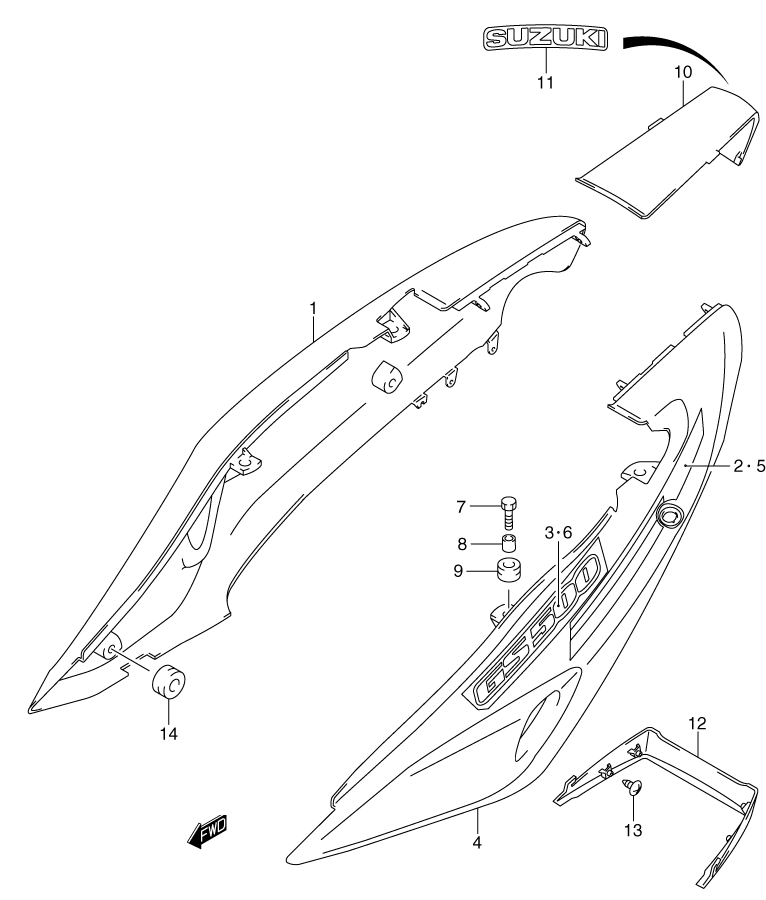

SIDE COVER для Suzuki GS500 K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-147110-01DJ0-YM7 COVER, FRAME (RIGHT) (YM7 - BLUE) (US)COVER, FRAME (RIGHT) (YM7 - BLUE) (US)
-
1-247110-01DJ0-YC2 COVER, FRAME (RIGHT (YC2 - BLUE) (CANADA)COVER, FRAME (RIGHT (YC2 - BLUE) (CANADA)
-
2-168135-01D50-FT7 ...TAPE (RIGHT) (FT7 - BLUE/SILVER/BLACK) (US)...TAPE (RIGHT) (FT7 - BLUE/SILVER/BLACK) (US)
-
2-268135-01D50-FT5 ...TAPE (FT5 - BLUE/BACK/SILVER) (CANADA)...TAPE (FT5 - BLUE/BACK/SILVER) (CANADA)
-
368131-01D40-FN3 ...EMBLEM (FN2 - BLACK/GRAY/WHITE)...EMBLEM (FN2 - BLACK/GRAY/WHITE)
-
4-147210-01DJ0-YM7 COVER, FRAME (LEFT) (YM7 - BLUE) (US)COVER, FRAME (LEFT) (YM7 - BLUE) (US)
-
4-247210-01DJO-YC2 COVER, FRAME (LEFT (YC2 - BLUE) (CANADA)COVER, FRAME (LEFT (YC2 - BLUE) (CANADA)
-
5-168145-01D50-FT7 ...TAPE (LEFT) (FT7 - BLUE/SILVER/BLACK) (US)...TAPE (LEFT) (FT7 - BLUE/SILVER/BLACK) (US)
-
5-268145-01D50-FT5 ...TAPE (FT5 - BLUE/BACK/SILVER) (CANADA)...TAPE (FT5 - BLUE/BACK/SILVER) (CANADA)
-
668131-01D40-FN3 ...EMBLEM (FN2 - BLACK/GRAY/WHITE)...EMBLEM (FN2 - BLACK/GRAY/WHITE)
-
709116-06010 BOLTBOLT
-
809180-06263 SPACERSPACER
-
909320-09016 CUSHIONCUSHION
-
10-147310-01D50-YM7 COVER (CENTER) (YM7 - BLUE) (US)COVER (CENTER) (YM7 - BLUE) (US)
-
10-247310-01D50-YC2 COVER (CENTER) (YC2 - BLUE) (CANADA)COVER (CENTER) (YC2 - BLUE) (CANADA)
-
11-168165-01D00-1ZY ...EMBLEM, "SUZUKI" (1ZY - GRAY) (US)...EMBLEM, "SUZUKI" (1ZY - GRAY) (US)
-
11-268165-01D00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (CANADA)...EMBLEM, "SUZUKI" (YD8 - SILVER) (CANADA)
-
1247321-01DA0 COVER, FRAME (LOWER)COVER, FRAME (LOWER)
-
1303541-04103 SCREWSCREW
-
1409320-08018 CUSHIONCUSHION
