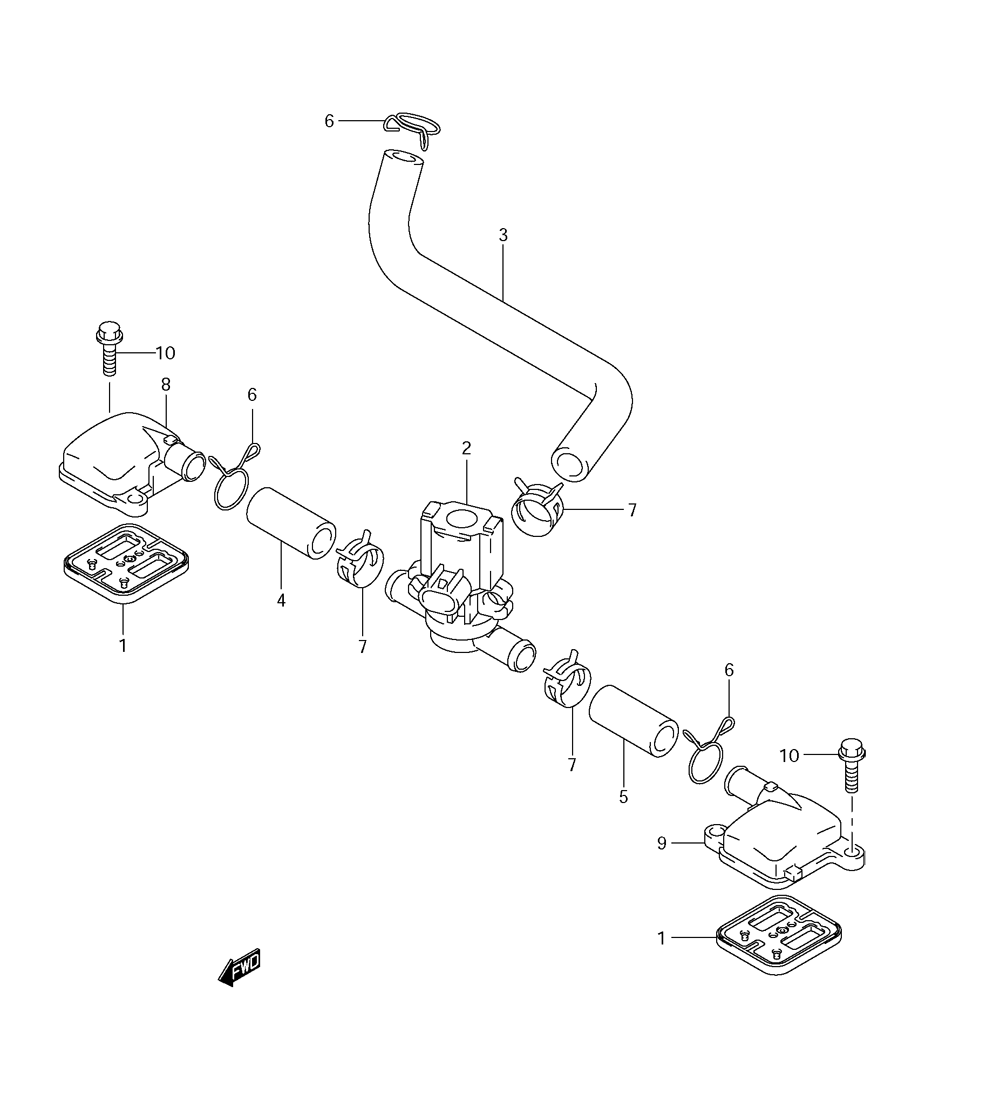

2ND AIR для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
118450-35F11 VALVE ASSEMBLY, 2ND AIR REEDVALVE ASSEMBLY, 2ND AIR REED
-
218510-29G40 VALVE ASSEMBLY, AIR CUTVALVE ASSEMBLY, AIR CUT
-
318711-47H00 HOSE, 2ND AIR CLEANERHOSE, 2ND AIR CLEANER
-
418461-47H00 HOSE, 2ND AIR VALVE, LEFT HANDHOSE, 2ND AIR VALVE, LEFT HAND
-
518471-47H00 HOSE, 2ND AIR VALVE, RIGHT HANDHOSE, 2ND AIR VALVE, RIGHT HAND
-
609401-17201 CLIPCLIP
-
709401-17401 CLIPCLIP
-
818531-47H00 COVER, 2ND AIR REED VALVE RIGHT HANDCOVER, 2ND AIR REED VALVE RIGHT HAND
-
918532-47H00 COVER, 2ND AIR REED VALVE LEFT HANDCOVER, 2ND AIR REED VALVE LEFT HAND
-
1009103-06201 BOLTBOLT
