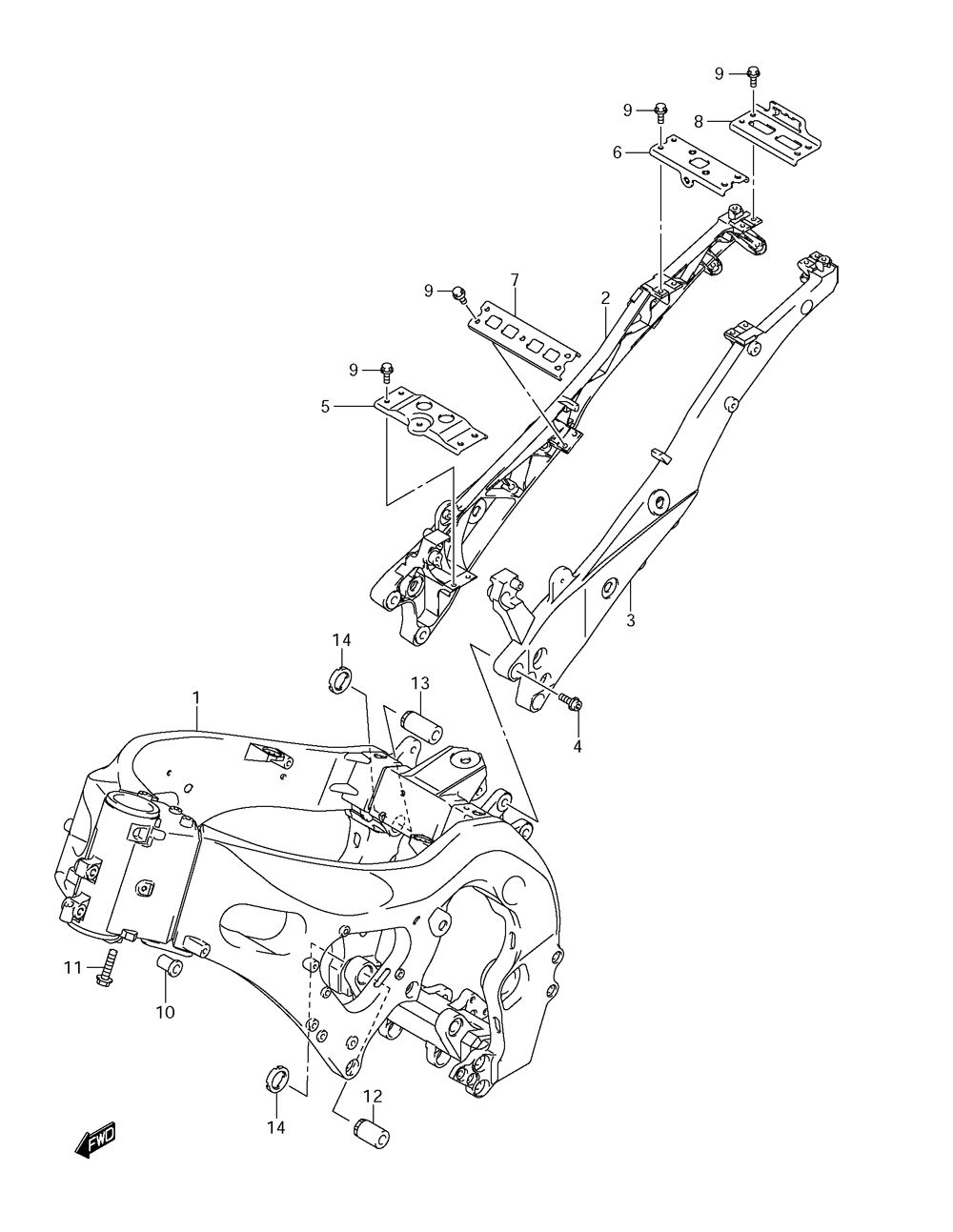

FRAME для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
141100-47H00-YAP FRAME (BLACK)FRAME (BLACK)
-
241211-47H00 RAIL, SEAT RIGHT HANDRAIL, SEAT RIGHT HAND
-
341221-47H00 RAIL, SEAT LEFT HANDRAIL, SEAT LEFT HAND
-
441233-18G20 BOLT, SEAT RAILBOLT, SEAT RAIL
-
541770-01H00 BRIDGE, FRONTBRIDGE, FRONT
-
642730-47H00 BRIDGE, UPPERBRIDGE, UPPER
-
742741-37H00 BRIDGE, LOWERBRIDGE, LOWER
-
842751-47H00 BRIDGE, REARBRIDGE, REAR
-
909103-06285 BOLT, BRIDGEBOLT, BRIDGE
-
1041911-40F01 SPACER, MOUNTSPACER, MOUNT
-
1109103-08512 BOLT, SPACERBOLT, SPACER
-
1241921-47H00 BOLT, ADJUSTBOLT, ADJUST
-
1341921-47H10 BOLT, ADJUST UPPERBOLT, ADJUST UPPER
-
1441922-47H00 NUT, ADJUST BOLTNUT, ADJUST BOLT
