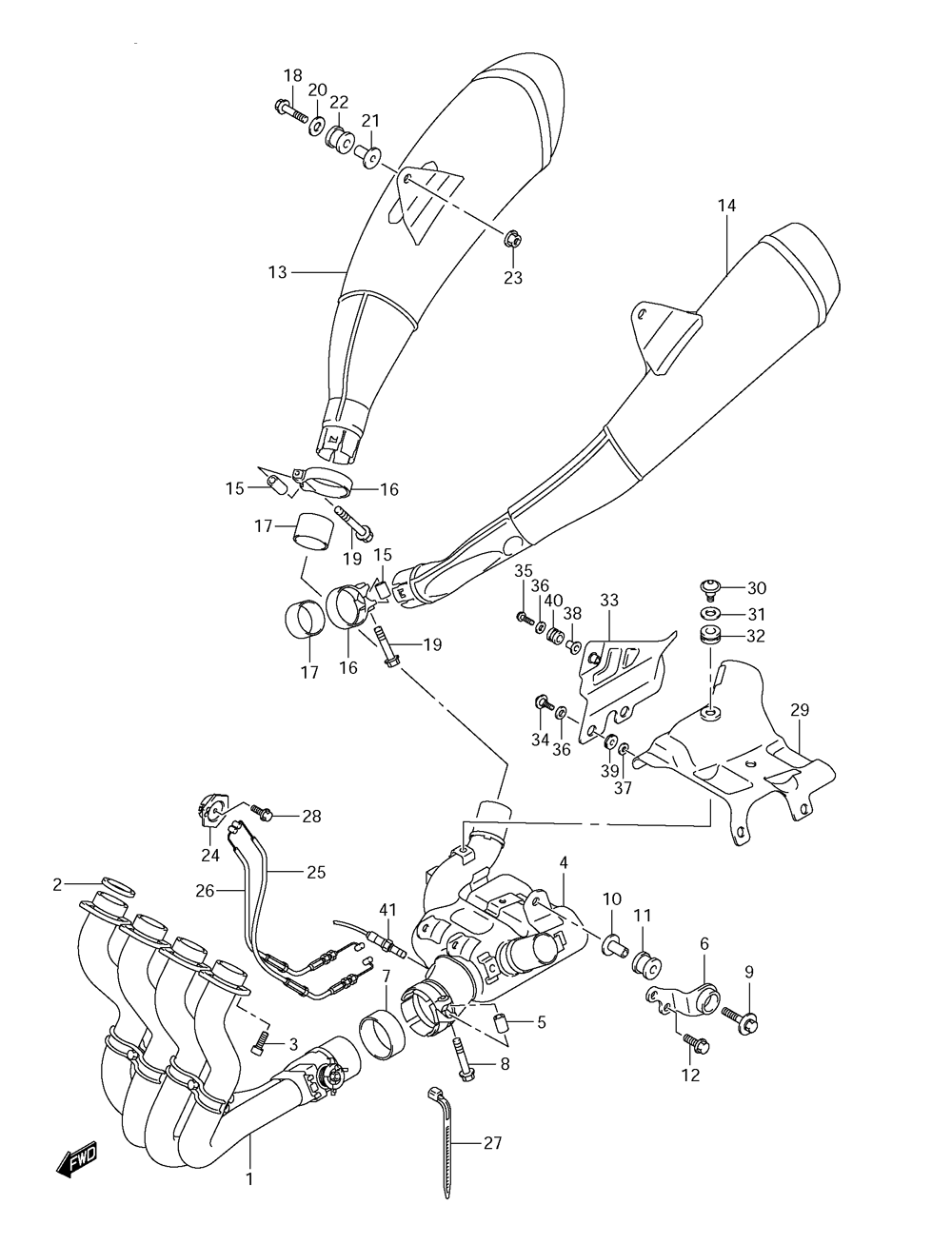

MUFFLER для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
114100-47H00 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-22D01 GASKETGASKET
-
309106-08165 BOLTBOLT
-
414200-47H00 CHAMBER W/CATALYSTCHAMBER W/CATALYST
-
514458-06H00 SPACERSPACER
-
614770-47H00 BRACKETBRACKET
-
714771-21H00 CONNECTORCONNECTOR
-
809103-08392 BOLTBOLT
-
909118-08152 BOLTBOLT
-
1009180-08152 SPACERSPACER
-
1109320-12077 CUSHIONCUSHION
-
1201550-0816A BOLTBOLT
-
1314310-47H00-H01 BODY, MUFFLER RIGHT HANDBODY, MUFFLER RIGHT HAND
-
1414340-47H00-H01 BODY, MUFFLER LEFT HANDBODY, MUFFLER LEFT HAND
-
1514458-06H00 SPACERSPACER
-
1614459-21H30 CLAMPCLAMP
-
1714771-42F10 CONNECTORCONNECTOR
-
1809103-08358 BOLTBOLT
-
1909103-08392 BOLTBOLT
-
2009160-08142 WASHERWASHER
-
2109180-08152 SPACERSPACER
-
2209320-12077 CUSHIONCUSHION
-
2308361-2508A NUTNUT
-
2411269-18G00 PULLEY, CONTROLLERPULLEY, CONTROLLER
-
2511276-47H00 CABLE, EXH VALVE NO.1CABLE, EXH VALVE NO.1
-
2611277-47H00 CABLE, EXH VALVE NO.2CABLE, EXH VALVE NO.2
-
2709407-14403 CLAMPCLAMP
-
2801547-0516A BOLTBOLT
-
2914731-47H00 GUARD, CHAMBER HEAT NO.1GUARD, CHAMBER HEAT NO.1
-
3009139-06124 SCREWSCREW
-
3109160-08043 WASHERWASHER
-
3209320-08030 CUSHIONCUSHION
-
3314732-47H00 GUARD, CHAMBER HEAT NO.2GUARD, CHAMBER HEAT NO.2
-
3409139-06028 SCREWSCREW
-
3509139-06029 SCREWSCREW
-
3609160-06094 WASHERWASHER
-
3709169-06040 WASHERWASHER
-
3809180-06331 SPACERSPACER
-
3909320-08030 CUSHIONCUSHION
-
4009320-09501 CUSHIONCUSHION
-
4118213-18H00 SENSOR, OXYGENSENSOR, OXYGEN
