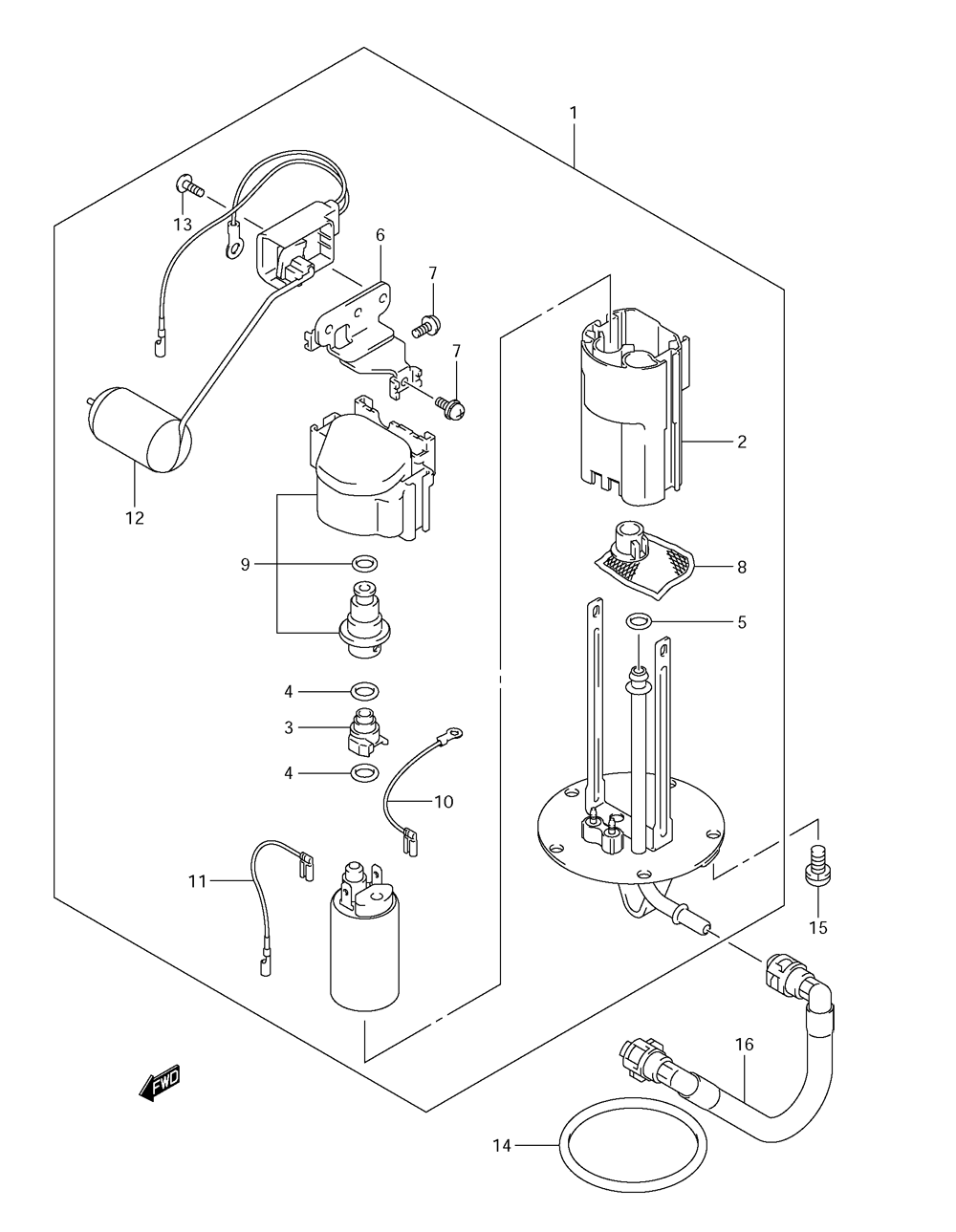

FUEL PUMP для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
115100-47H00 PUMP ASSEMBLY, FUELPUMP ASSEMBLY, FUEL
-
215111-27G00 ...CUP...CUP
-
315112-05H00 ...JOINT...JOINT
-
415113-05H00 ...O RING...O RING
-
515113-35F00 ...O RING...O RING
-
615181-47H00 ...BRACKET, FUEL GAUGE...BRACKET, FUEL GAUGE
-
715116-10F00 ...SCREW...SCREW
-
815420-05H00 ...STRAINER, FUEL PUMP...STRAINER, FUEL PUMP
-
915610-27G00 ...REGULATOR, FUEL...REGULATOR, FUEL
-
1015114-27G00 ...WIRE, EARTH...WIRE, EARTH
-
1115115-27G00 ...WIRE, LEAD...WIRE, LEAD
-
1234810-47H00 ...GAUGE ASSEMBLY, FUEL LEVEL...GAUGE ASSEMBLY, FUEL LEVEL
-
1315116-44H00 ...SCREW...SCREW
-
1415201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1507120-0612A BOLTBOLT
-
1615810-47H00 HOSE, FUELHOSE, FUEL
