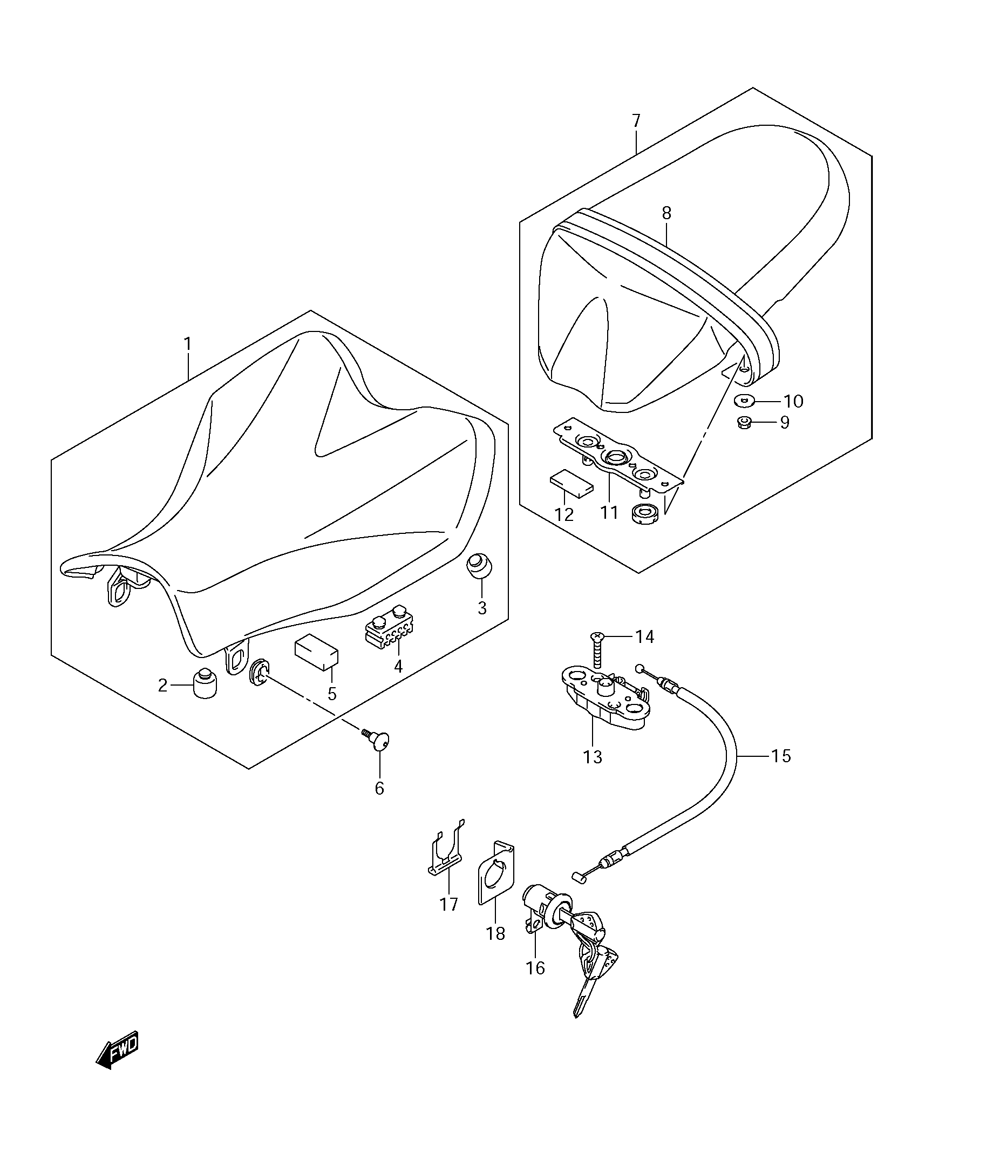

SEAT для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
145100-47H00-6BY SEAT ASSEMBLY (BLACK)SEAT ASSEMBLY (BLACK)
-
209321-10039 ...CUSHION, FRONT...CUSHION, FRONT
-
309321-10011 ...CUSHION...CUSHION
-
445149-19D00 ...CUSHION...CUSHION
-
545149-31E00 ...CUSHION...CUSHION
-
609139-06126 SCREW, SEATSCREW, SEAT
-
745300-47H00-6BY SEAT ASSEMBLY, PILLION (BLACK)SEAT ASSEMBLY, PILLION (BLACK)
-
845180-47H00-6BY ...BAND ASSEMBLY, SEAT (BLACK)...BAND ASSEMBLY, SEAT (BLACK)
-
908319-3106A ...NUT...NUT
-
1009160-06088 ...WASHER...WASHER
-
1145290-47H00 ...STRIKER...STRIKER
-
1245149-31E00 ...CUSHION...CUSHION
-
1345220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1402122-0630A SCREW, REARSCREW, REAR
-
1545280-47H00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1695700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1745289-11F00 PLATE, SEAT LOCK ASSEMBLYPLATE, SEAT LOCK ASSEMBLY
-
1845288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
