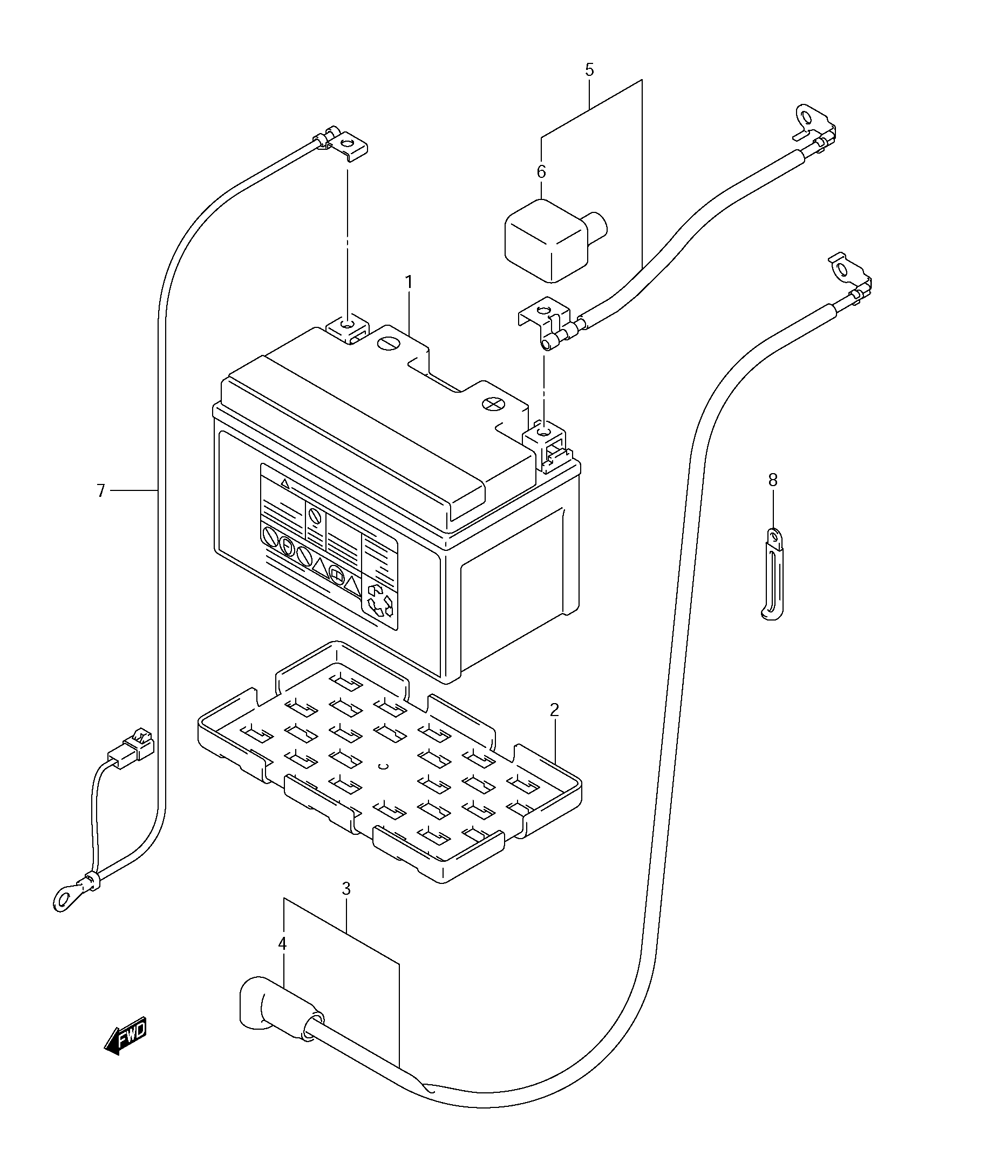

BATTERY для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
133610-14G10 BATTERY ASSEMBLYBATTERY ASSEMBLY
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333810-47H00 WIRE, STARTER MOTOR LEADWIRE, STARTER MOTOR LEAD
-
436618-43410 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
533820-47H00 WIRE, BATTERY PLUS LEADWIRE, BATTERY PLUS LEAD
-
633624-16G00 ...CAP, BATTERY PLUS...CAP, BATTERY PLUS
-
733860-47H00 WIRE, BATTERY MINUS LEADWIRE, BATTERY MINUS LEAD
-
809404-06429 CLAMP (LENGTH: 45)CLAMP (LENGTH: 45)
