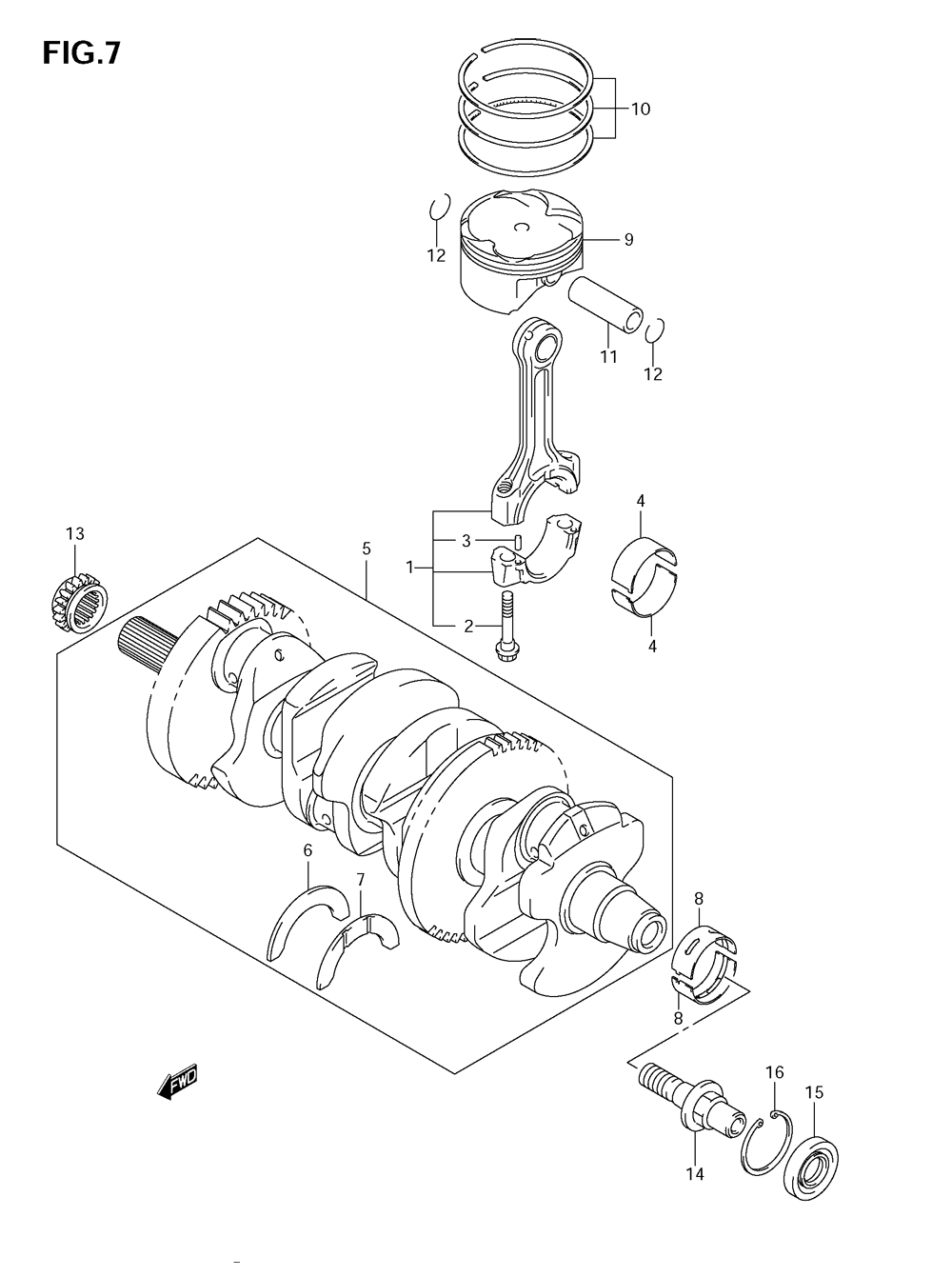

CRANKSHAFT W/ PISTON для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112160-47H00 ROD ASSEMBLY, CONNECTINGROD ASSEMBLY, CONNECTING
-
212163-24F10 ...BOLT...BOLT
-
312165-27A50 ...PIN, CONNROD...PIN, CONNROD
-
412164-47H00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-47H00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-47H00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-47H00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-47850 CRANKSHAFT SETCRANKSHAFT SET
-
612228-48B00-0E0 ...BEARING, THRUST RIGHT HAND (GREEN)...BEARING, THRUST RIGHT HAND (GREEN)
-
712228-48B00-0B0 ...BEARING, THRUST LEFT HAND (BROWN)...BEARING, THRUST LEFT HAND (BROWN)
-
712228-48B00-0C0 ...BEARING, THRUST LEFT HAND (RED)...BEARING, THRUST LEFT HAND (RED)
-
712228-48B00-0D0 ...BEARING, THRUST LEFT HAND (YELLOW)...BEARING, THRUST LEFT HAND (YELLOW)
-
712228-48B00-0E0 ...BEARING, THRUST LEFT HAND (GREEN)...BEARING, THRUST LEFT HAND (GREEN)
-
712228-48B00-0F0 ...BEARING, THRUST LEFT HAND (BLUE)...BEARING, THRUST LEFT HAND (BLUE)
-
712228-48B00-0G0 ...BEARING, THRUST LEFT HAND (ORANGE)...BEARING, THRUST LEFT HAND (ORANGE)
-
712228-48B00-0H0 ...BEARING, THRUST LEFT HAND (BLACK)...BEARING, THRUST LEFT HAND (BLACK)
-
812229-47H10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-47H10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-47H10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-47H10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
812229-47H10-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
912111-47H00-0F0 PISTONPISTON
-
1012140-47H00 RING SET, PISTONRING SET, PISTON
-
1112151-41G00 PIN, PISTONPIN, PISTON
-
1209381-15001 CIRCLIPCIRCLIP
-
1312731-47H00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1412224-47H00 BOLT, GENERATOR ROTORBOLT, GENERATOR ROTOR
-
1509282-14007 SEAL, OIL LEFT HANDSEAL, OIL LEFT HAND
-
1608331-4132A CIRCLIP PART NUMBER 99104-BRGKT-034CIRCLIP PART NUMBER 99104-BRGKT-034
