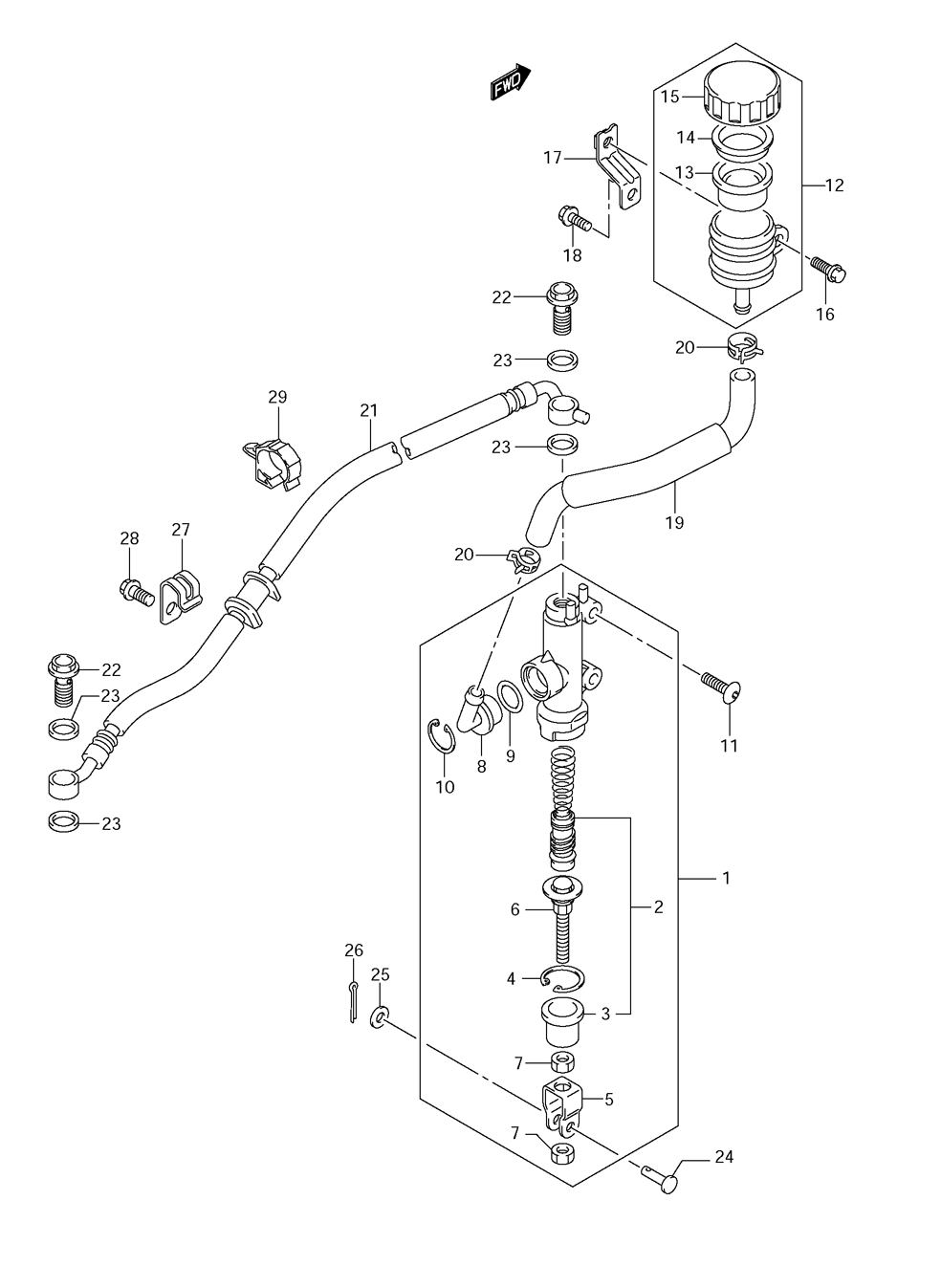

BRAKE - REAR MASTER CYLINDER для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
169600-47H00 CYLINDER ASSEMBLY, REAR MASTERCYLINDER ASSEMBLY, REAR MASTER
-
269600-34810 ...PISTON / CAP SET...PISTON / CAP SET
-
369691-00A00 ......BOOT......BOOT
-
469665-47H00 ...CIRCLIP...CIRCLIP
-
569692-27A30 ...YOKE...YOKE
-
669670-48B00 ...ROD, PUSH...ROD, PUSH
-
769693-05A00 ...NUT...NUT
-
869672-00B20 ...CONNECTOR...CONNECTOR
-
969686-34200 ...O RING...O RING
-
1069674-00B20 ...CIRCLIP...CIRCLIP
-
1109139-06125 BOLTBOLT
-
1269740-47H00 TANK ASSEMBLY, REAR RESERVOIRTANK ASSEMBLY, REAR RESERVOIR
-
1369667-00B20 ...DIAPHRAGM...DIAPHRAGM
-
1469668-00B20 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
1569669-47H00 ...CAP...CAP
-
1601547-0616A BOLTBOLT
-
1769750-47H00 BRACKET, RR RESERVOIR TANKBRACKET, RR RESERVOIR TANK
-
1801547-0612A BOLTBOLT
-
1969730-47H00 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
2009401-12404 CLAMPCLAMP
-
2169480-47H00 HOSE, REAR BRAKEHOSE, REAR BRAKE
-
2209360-10065 BOLT (10X1.25X22)BOLT (10X1.25X22)
-
2309161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2409200-06068 PINPIN
-
2508322-0106A WASHERWASHER
-
2604111-2015A PIN, COTTERPIN, COTTER
-
2769268-21H00 CLAMP, RR BRAKE HOSECLAMP, RR BRAKE HOSE
-
2801547-0612A BOLTBOLT
-
2909403-17306 GUIDE, RR BRAKE HOSE NO.2GUIDE, RR BRAKE HOSE NO.2
