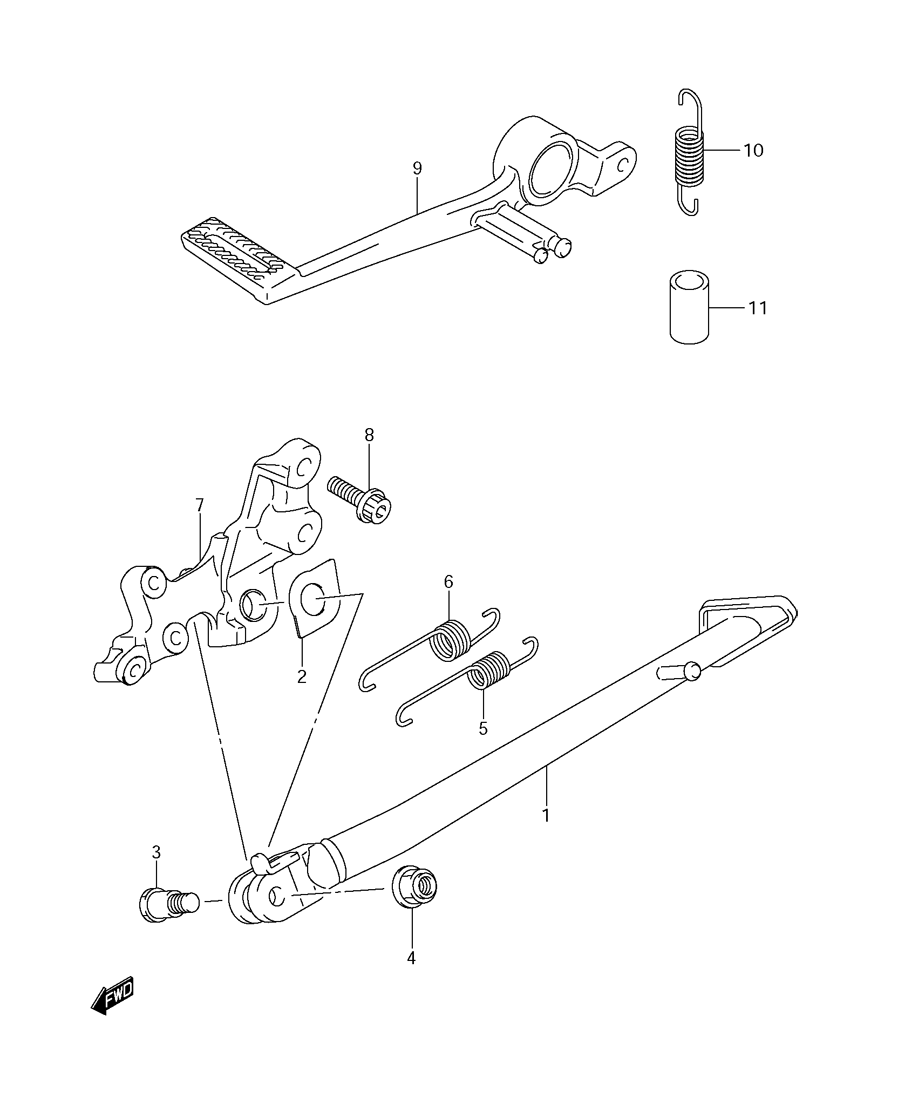

BRAKE PEDAL W/ STAND для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
142310-47H00 STAND, PROPSTAND, PROP
-
242335-47H00 WASHERWASHER
-
342411-47H00 BOLTBOLT
-
409159-10103 NUTNUT
-
509443-14070 SPRING, INNERSPRING, INNER
-
609443-19016 SPRING, OUTERSPRING, OUTER
-
742330-47H00 BRACKET, PROP STANDBRACKET, PROP STAND
-
809106-10064 BOLTBOLT
-
943110-47H00 PEDAL, BRAKEPEDAL, BRAKE
-
1009443-11033 SPRINGSPRING
-
1109352-11153-600 TUBE (LENGTH: 600->22)TUBE (LENGTH: 600->22)
