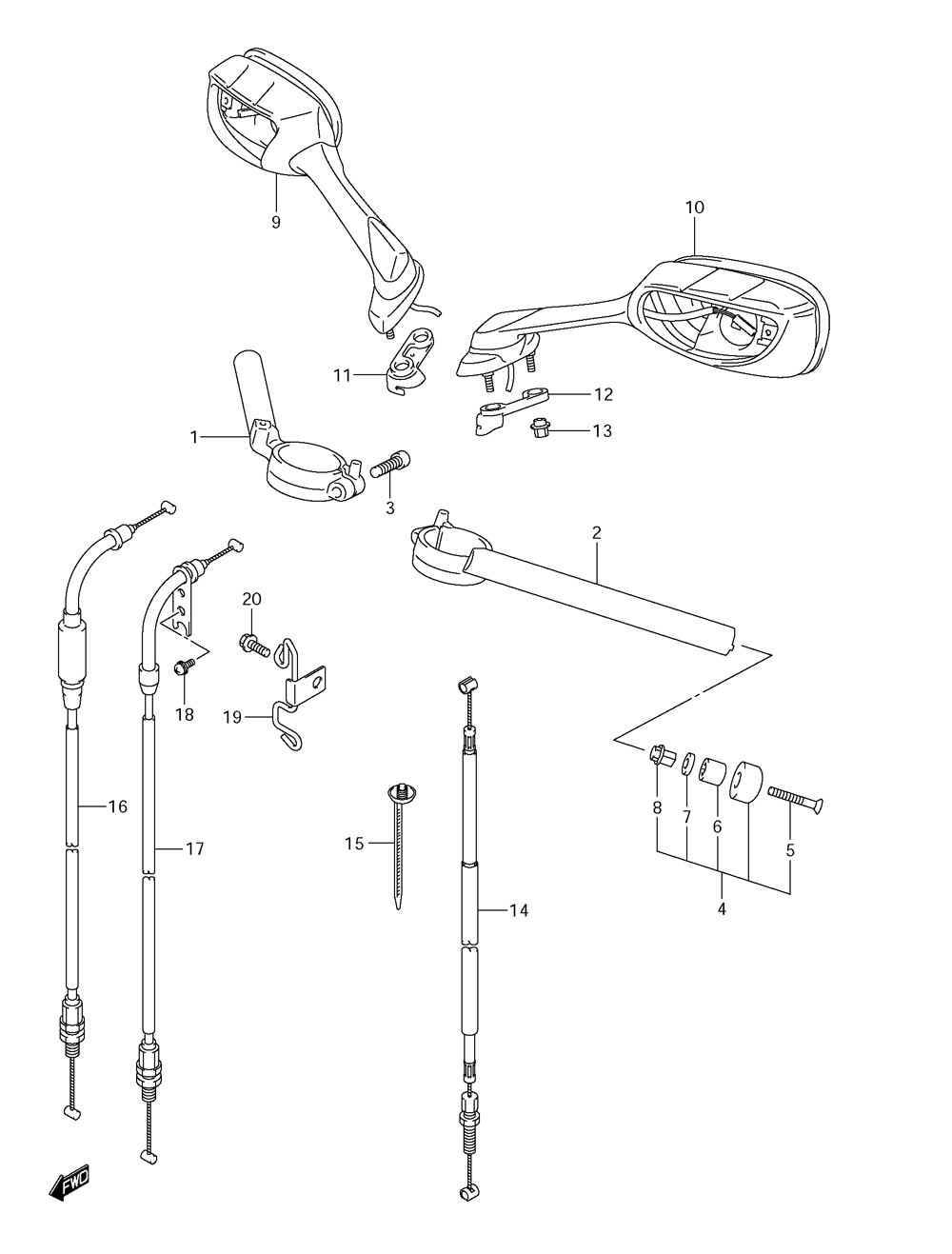

HANDLEBAR для Suzuki GSX-R1000 K9 - 2009 года выпуска
-
№АртикулНазвание
-
156111-47H00 HANDLEBAR, RIGHT HANDHANDLEBAR, RIGHT HAND
-
256151-47H00 HANDLEBAR, LEFT HANDHANDLEBAR, LEFT HAND
-
309106-08185 BOLTBOLT
-
456200-41822 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
502122-0640B ...SCREW...SCREW
-
609160-06131 ...WASHER...WASHER
-
756272-10G00 ...EXPANDER...EXPANDER
-
856273-10G10 ...NUT...NUT
-
956500-47H00 MIRROR ASSEMBLY, REAR VIEW RIGHT HANDMIRROR ASSEMBLY, REAR VIEW RIGHT HAND
-
1056600-47H00 MIRROR ASSEMBLY, REAR VIEW LEFT HANDMIRROR ASSEMBLY, REAR VIEW LEFT HAND
-
1194575-47H00 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
1294576-47H00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1356619-41G01 NUTNUT
-
1458200-47H00 CABLE ASSEMBLY, CLUTCHCABLE ASSEMBLY, CLUTCH
-
1509407-17403 CLAMPCLAMP
-
1658300-47H00 CABLE ASSEMBLY, THROTTLE NO.1CABLE ASSEMBLY, THROTTLE NO.1
-
1758300-47H10 CABLE ASSEMBLY, THROTTLE NO.2CABLE ASSEMBLY, THROTTLE NO.2
-
1809125-05042 SCREW, CASESCREW, CASE
-
1958620-47H00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
2001547-0612A BOLTBOLT
