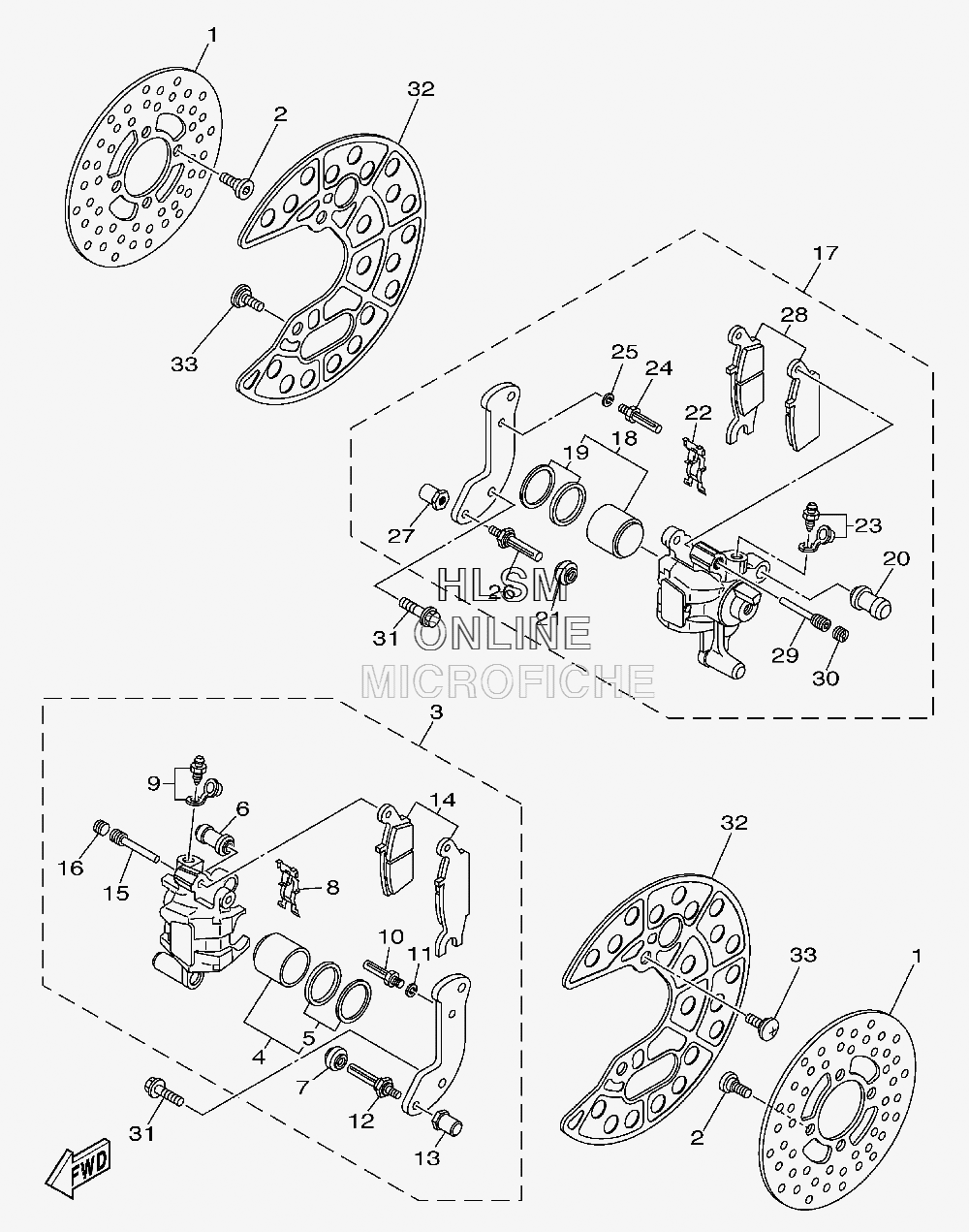

BRAKE - FRONT CALIPER для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKEDISC, BRAKE
-
290109-08082-00 BOLTBOLT
-
34D3-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
43B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
61UY-25937-51-00 BOOT 2BOOT 2
-
73JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
85DH-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
91UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
101UY-25926-51-00 BOLTBOLT
-
111UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
123JD-25926-00-00 BOLTBOLT
-
133JD-25961-00-00 NUTNUT
-
144D3-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
155DH-25933-00-00 PIN, PADPIN, PAD
-
168CR-25926-00-00 BOLTBOLT
-
174D3-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
183B4-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
193B4-W0047-00-00 CALIPER SEAL KITCALIPER SEAL KIT
-
201UY-25937-51-00 BOOT 2BOOT 2
-
213JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
225DH-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
231UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
241UY-25926-51-00 BOLTBOLT
-
251UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
263JD-25926-00-00 BOLTBOLT
-
273JD-25961-00-00 NUTNUT
-
284D3-W0045-10-00 BRAKE PAD KITBRAKE PAD KIT
-
295DH-25933-00-00 PIN, PADPIN, PAD
-
308CR-25926-00-00 BOLTBOLT
-
3190105-08161-00 BOLT, FLANGEBOLT, FLANGE
-
324D3-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3390154-06014-00 SCREW, BINDINGSCREW, BINDING
