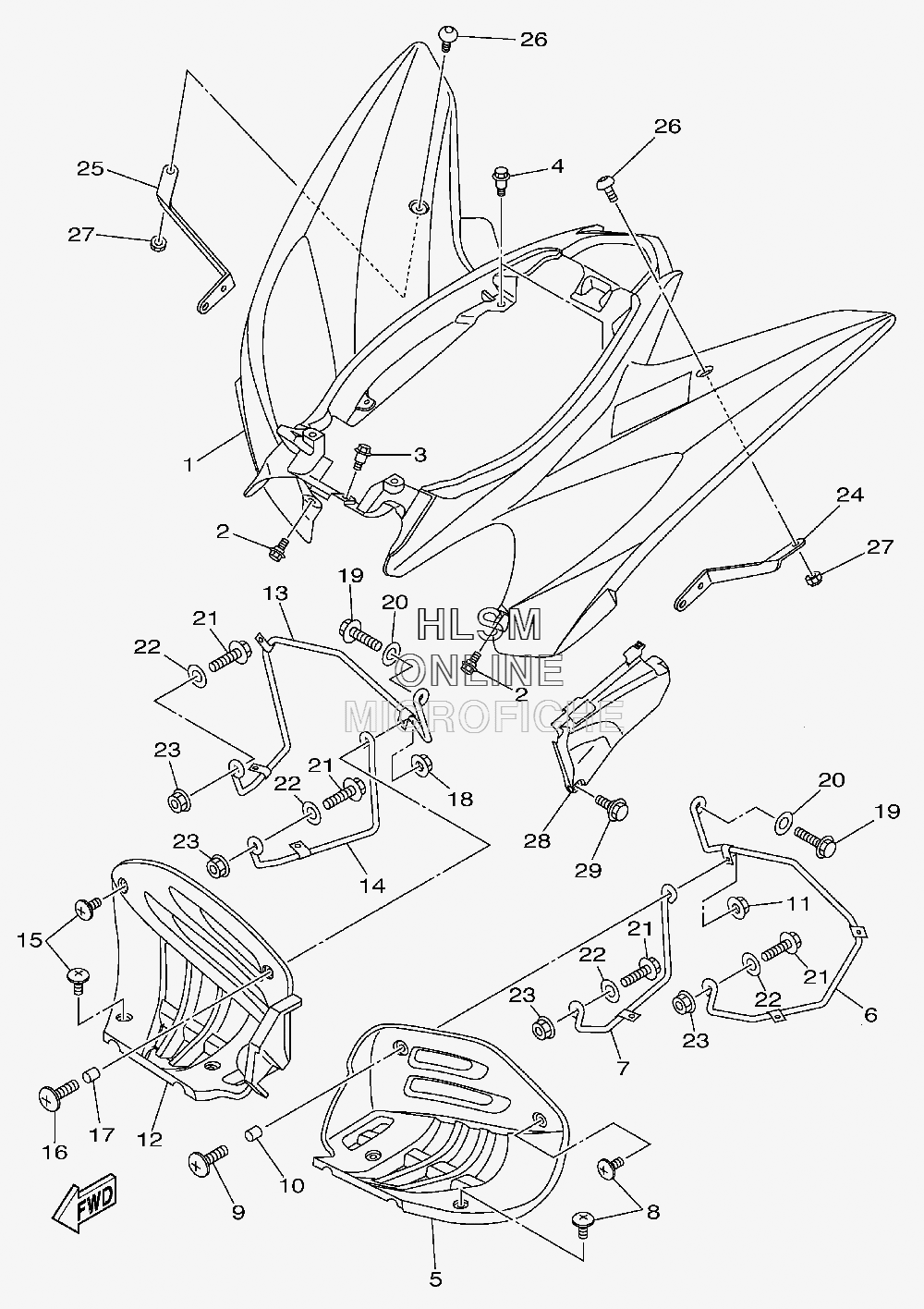

FENDER - REAR для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
14D3-W2161-40-00 REAR FENDER COMP. (FOR BWS1)REAR FENDER COMP. (FOR BWS1)
-
290109-06172-00 BOLTBOLT
-
390109-06241-00 BOLTBOLT
-
490109-06241-00 BOLTBOLT
-
54D3-21621-00-00 FLAPFLAP
-
64D3-2164F-00-00 STAY 1STAY 1
-
74D3-2164H-00-00 STAY 3STAY 3
-
890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
990154-06061-00 SCREW, BINDINGSCREW, BINDING
-
1090387-062E0-00 COLLARCOLLAR
-
1195602-06200-00 NUT-UNUT-U
-
125LP-21691-00-00 FLAPFLAP
-
134D3-2164G-00-00 STAY 2STAY 2
-
145YT-2164J-10-00 STAY 4STAY 4
-
1590154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1690154-06061-00 SCREW, BINDINGSCREW, BINDING
-
1790387-062E0-00 COLLARCOLLAR
-
1895602-06200-00 NUT-UNUT-U
-
1995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-08048-00 WASHER, PLATEWASHER, PLATE
-
2195822-08025-00 BOLT,FLANGE(4LN)BOLT,FLANGE(4LN)
-
2290201-08048-00 WASHER, PLATEWASHER, PLATE
-
2395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
244D3-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
254D3-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
2690110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2795602-06200-00 NUT-UNUT-U
-
284D3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
2990109-06172-00 BOLTBOLT
