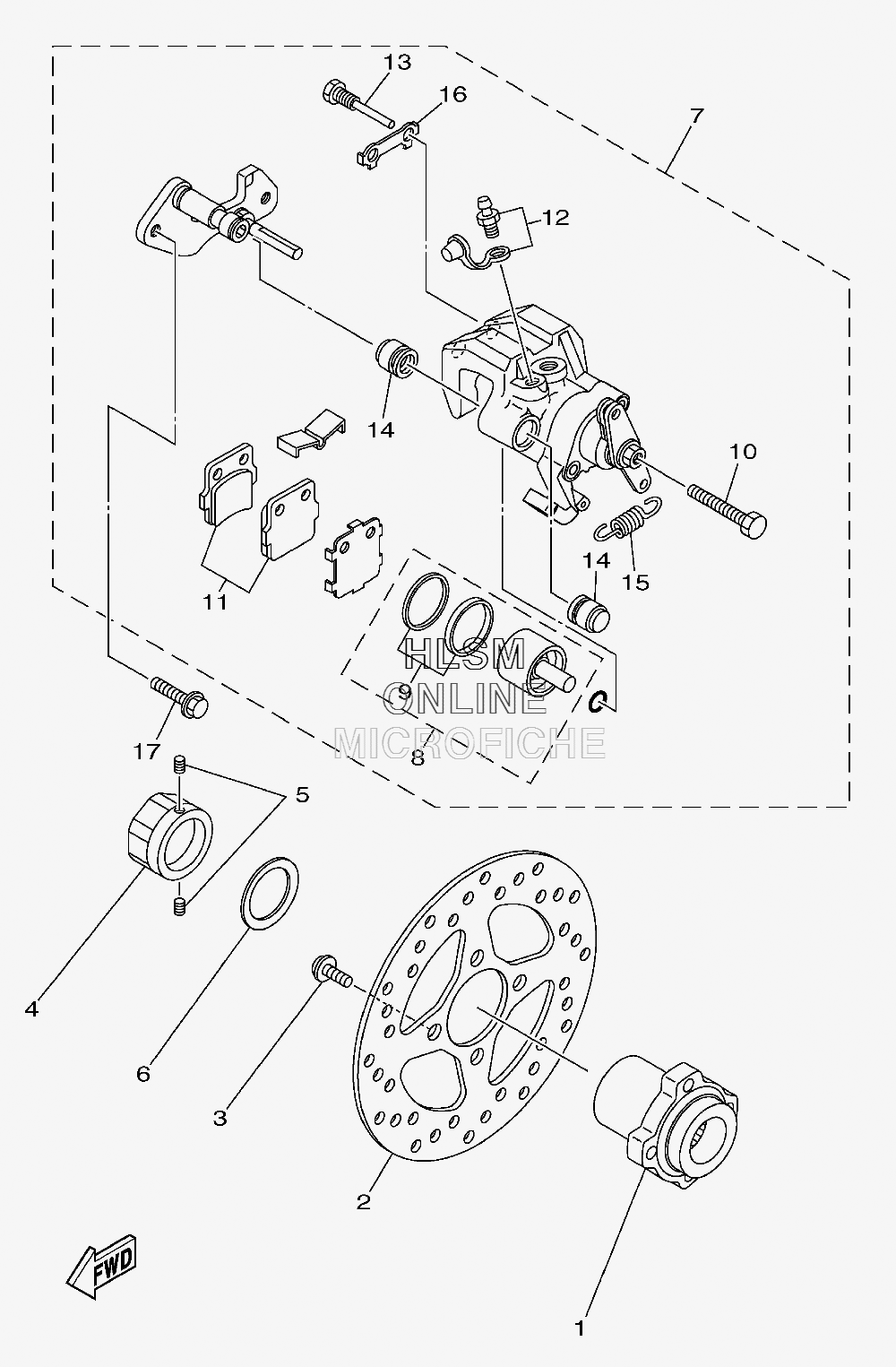

BRAKE - REAR CALIPER для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
15YT-25712-00-00 BRACKET, DISCBRACKET, DISC
-
24D3-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
490170-33010-00 NUTNUT
-
590113-06055-00 BOLT, SETBOLT, SET
-
690208-34001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
75YT-2580W-10-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
85LP-W0057-50-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
95LP-W0047-50-00 CALIPER SEAL KITCALIPER SEAL KIT
-
101UY-25972-51-00 ADJUST BOLTADJUST BOLT
-
114D3-W0046-50-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
121UY-W0048-50-00 BLEED SCREW KITBLEED SCREW KIT
-
131UY-25924-51-00 PIN, PADPIN, PAD
-
141UY-25917-51-00 BOOT, CALIPERBOOT, CALIPER
-
155YT-25977-50-00 SPRING, RETURNSPRING, RETURN
-
161UY-25933-51-00 WASHER, PAD PINWASHER, PAD PIN
-
1790105-08183-00 BOLT, FLANGEBOLT, FLANGE
