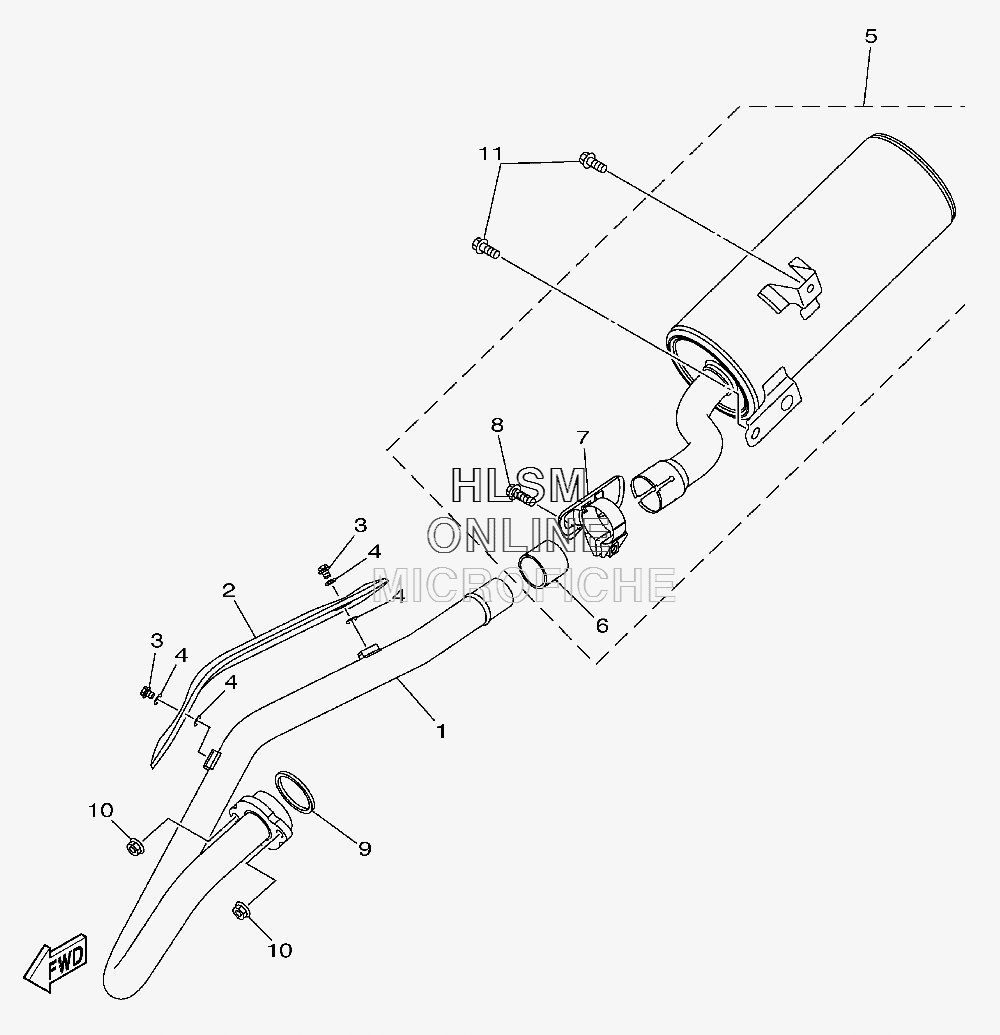

EXHAUST для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
14D3-14611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
24D3-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
398902-06008-00 SCREW, BINDSCREW, BIND
-
490201-05017-00 WASHER, PLATEWASHER, PLATE
-
54D3-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
63YF-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
74D3-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
895024-08025-00 BOLT, FLG. (SMALL HEAD)BOLT, FLG. (SMALL HEAD)
-
93GD-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1095702-08500-00 NUT,FLANGE (JN5)NUT,FLANGE (JN5)
-
1195812-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
