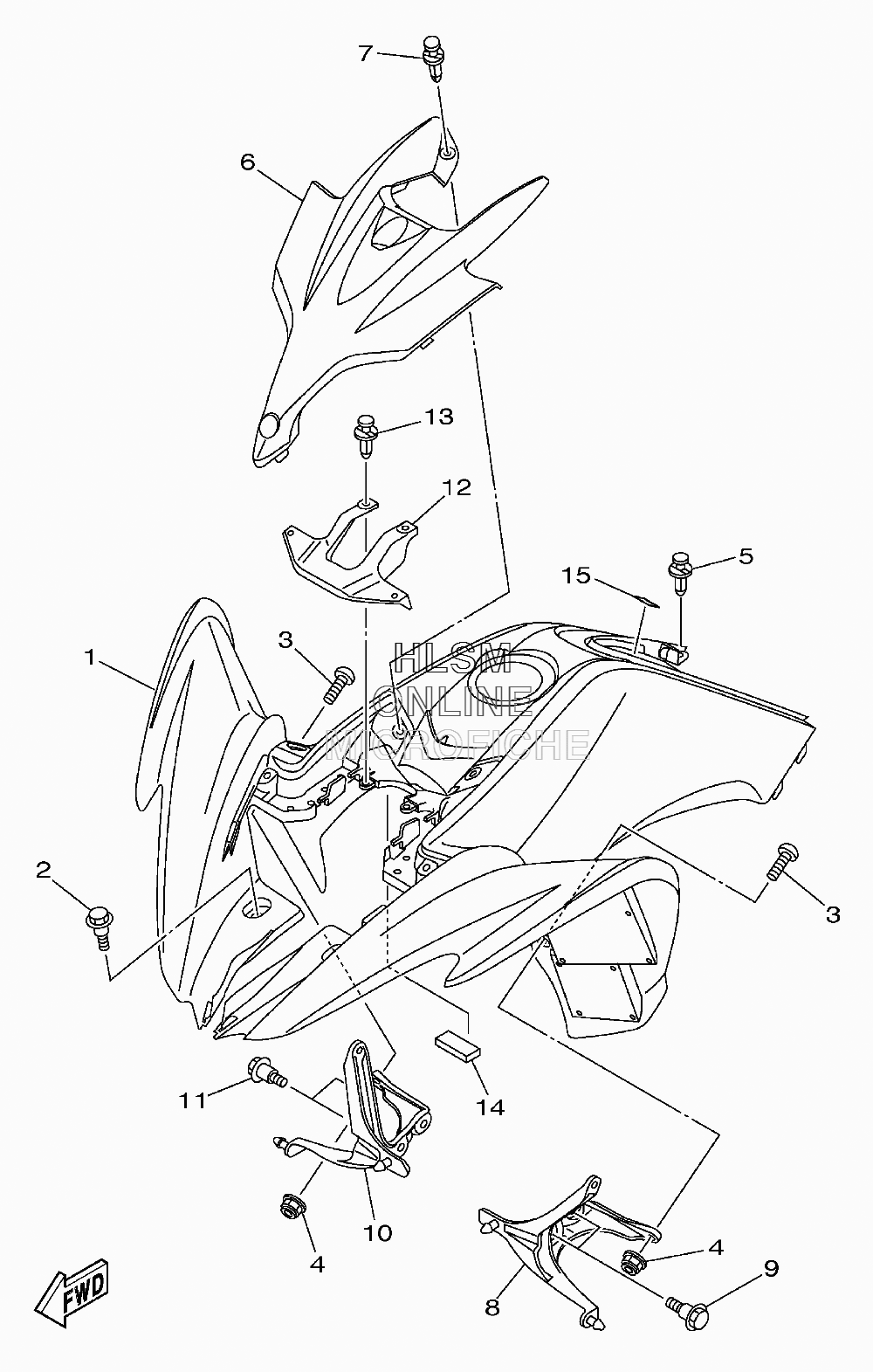

FENDER - FRONT для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
14D3-W2151-40-00 FRONT FENDER COMP. (BWS1)FRONT FENDER COMP. (BWS1)
-
290109-06172-00 BOLTBOLT
-
390111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
495602-06200-00 NUT-UNUT-U
-
590269-07010-00 RIVETRIVET
-
64D3-23391-00-00 PANEL, FRONTPANEL, FRONT
-
790269-07010-00 RIVETRIVET
-
84D3-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
990109-06214-00 BOLTBOLT
-
104D3-21514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1190109-06214-00 BOLTBOLT
-
124D3-21523-00-00 PLATE 1PLATE 1
-
1390269-07010-00 RIVETRIVET
-
148ET-21747-00-00 DAMPERDAMPER
-
153MA-27491-00-00 PROTECTORPROTECTOR
