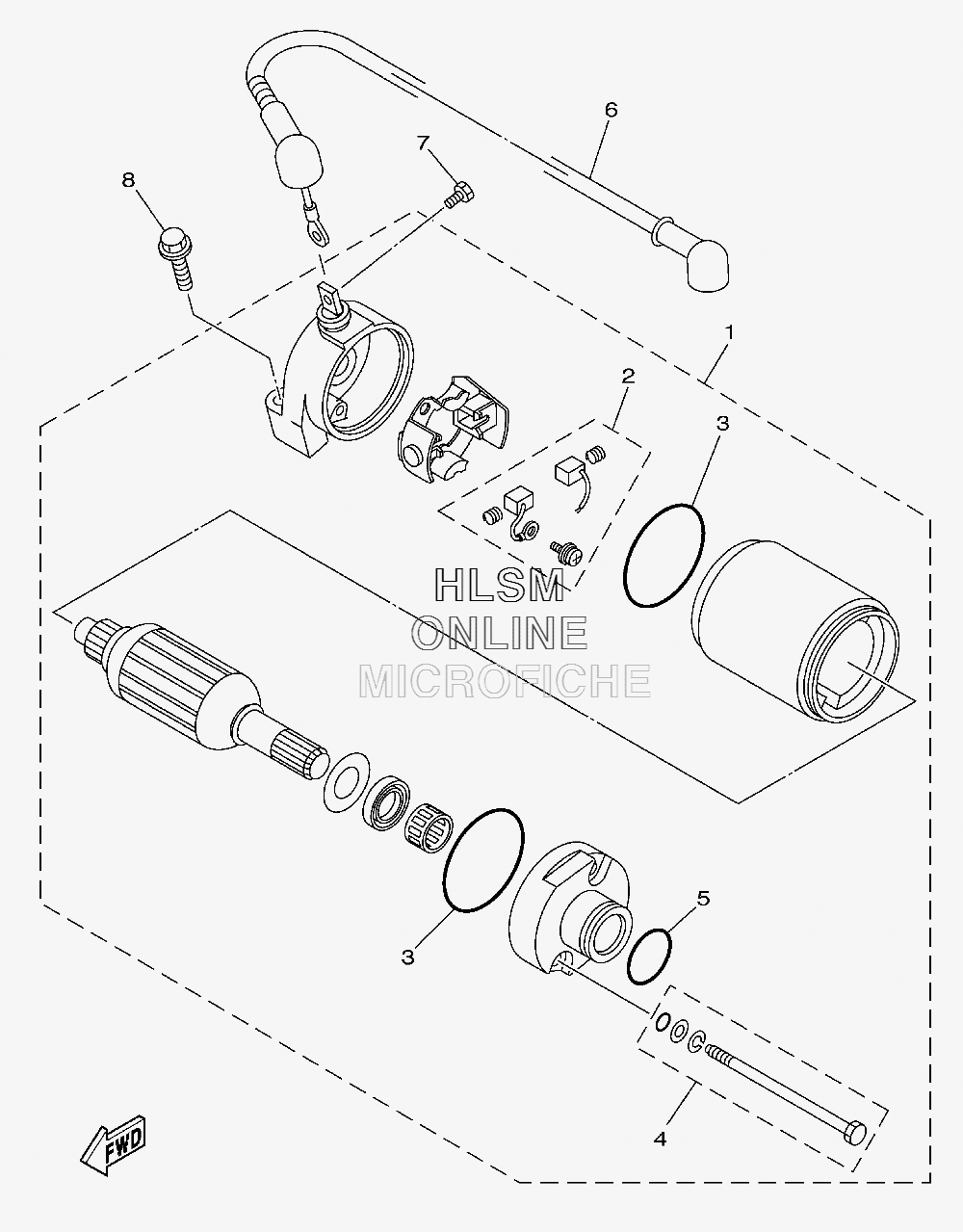

STARTING MOTOR для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
13C5-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23C5-81801-00-00 BRUSH SETBRUSH SET
-
35HP-8182M-00-00 O-RINGO-RING
-
45HP-81828-00-00 BOLT 2BOLT 2
-
593210-25711-00 O-RINGO-RING
-
64D3-8183G-00-00 CORD COMP.CORD COMP.
-
75TJ-81828-01-00 BOLT 2BOLT 2
-
890105-06125-00 BOLT, FLANGEBOLT, FLANGE
