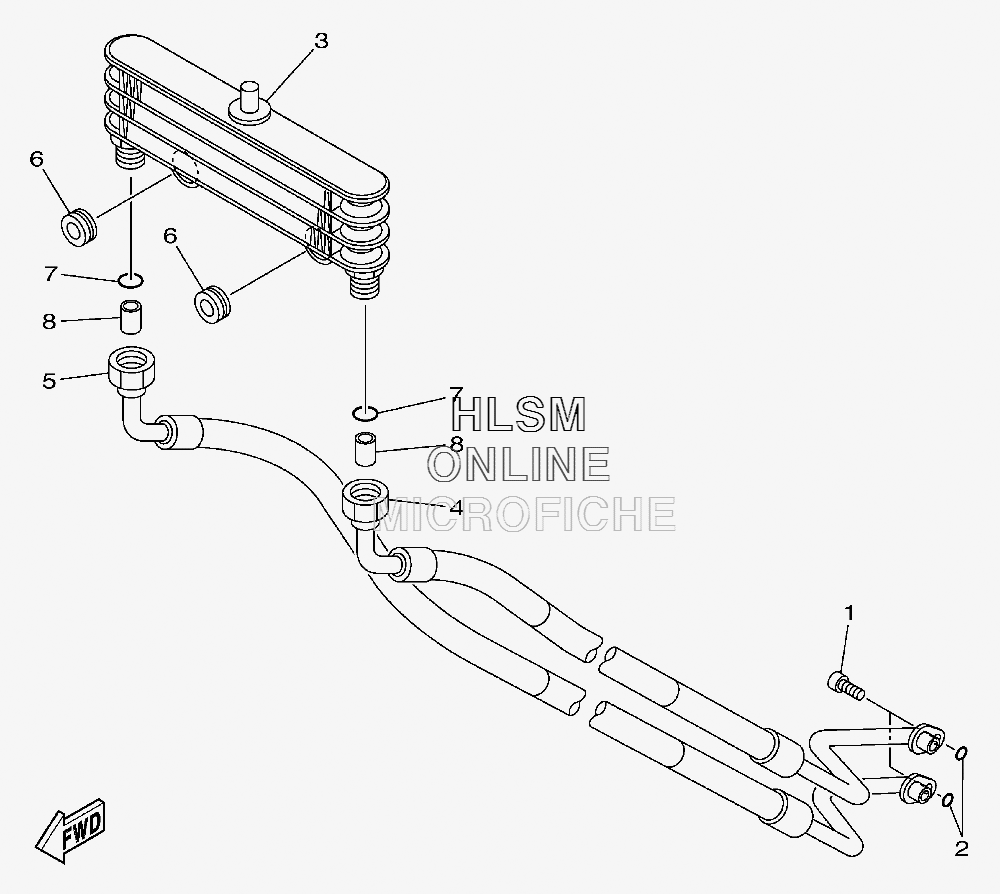

OIL COOLER для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
191312-06016-00 BOLTBOLT
-
293210-10197-00 O-RINGO-RING
-
34KB-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
44D3-13464-00-00 HOSE, OIL 1HOSE, OIL 1
-
54D3-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
690480-15235-00 GROMMETGROMMET
-
793210-12152-00 O-RINGO-RING
-
893612-16254-00 PIN, DOWELPIN, DOWEL
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- EMBLEMS
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR - SWITCHES/LEVERS
- HANDLEBAR W/ CABLES
- HEADLIGHT
- LABELS
- MODEL INFO - MANUALS
- • OIL COOLER
- OIL PUMP
- RACK AND BUMPER
- SEAT
- SHIFT CAM W/ FORK
- STAND - FOOTREST
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
