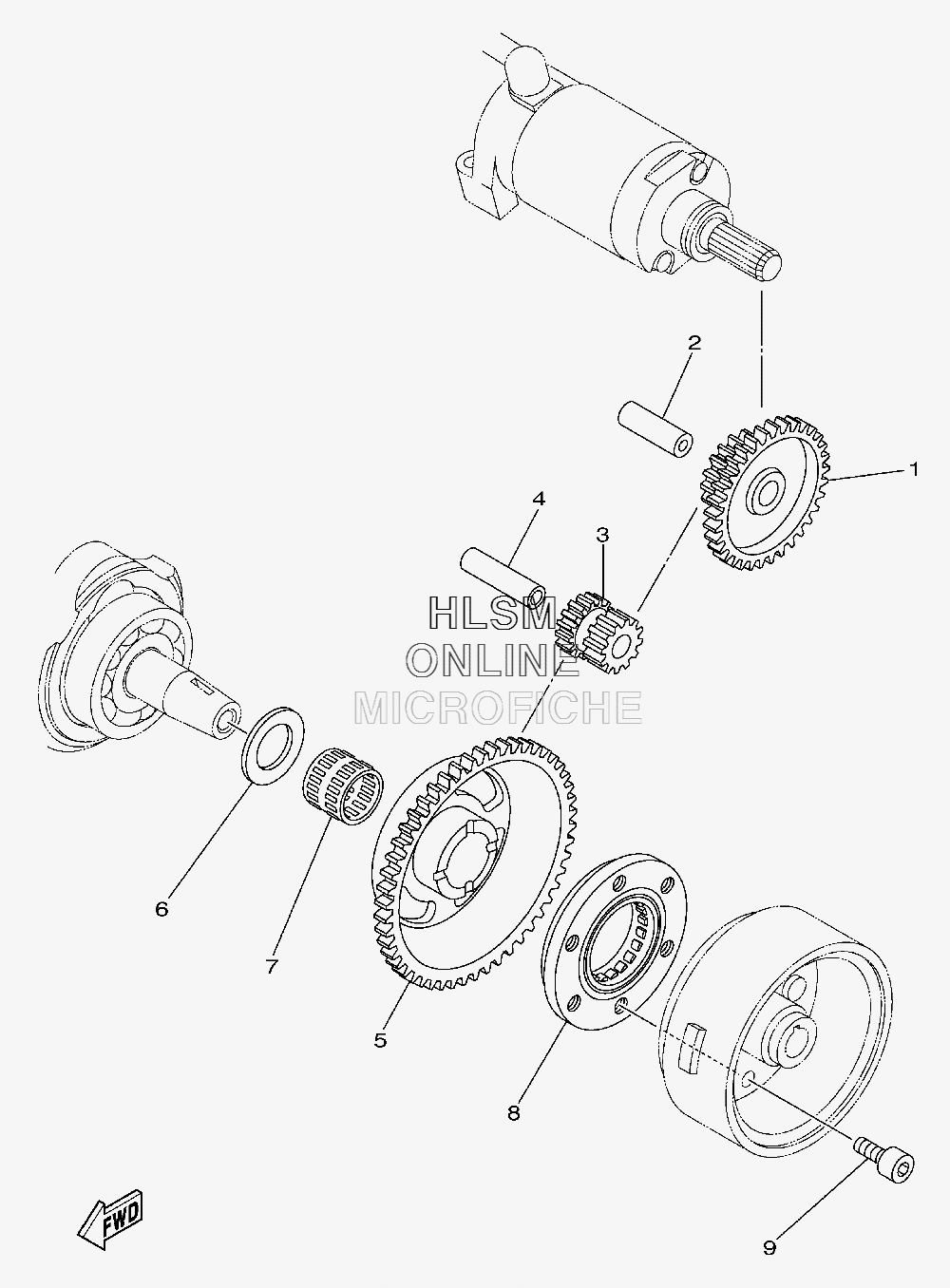

STARTER CLUTCH для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
15XT-15512-00-00 GEAR, IDLER 1 (19T/72T)GEAR, IDLER 1 (19T/72T)
-
21VJ-15521-00-00 SHAFT 1SHAFT 1
-
35XT-15517-00-00 GEAR, IDLER 2 (16T/14T)GEAR, IDLER 2 (16T/14T)
-
436Y-15521-01-00 SHAFT 1SHAFT 1
-
55XT-15515-00-00 GEAR 3 (71T)GEAR 3 (71T)
-
690201-25291-00 WASHER, PLATEWASHER, PLATE
-
793310-225N0-00 BEARINGBEARING
-
85BP-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
990110-08053-00 BOLTBOLT
