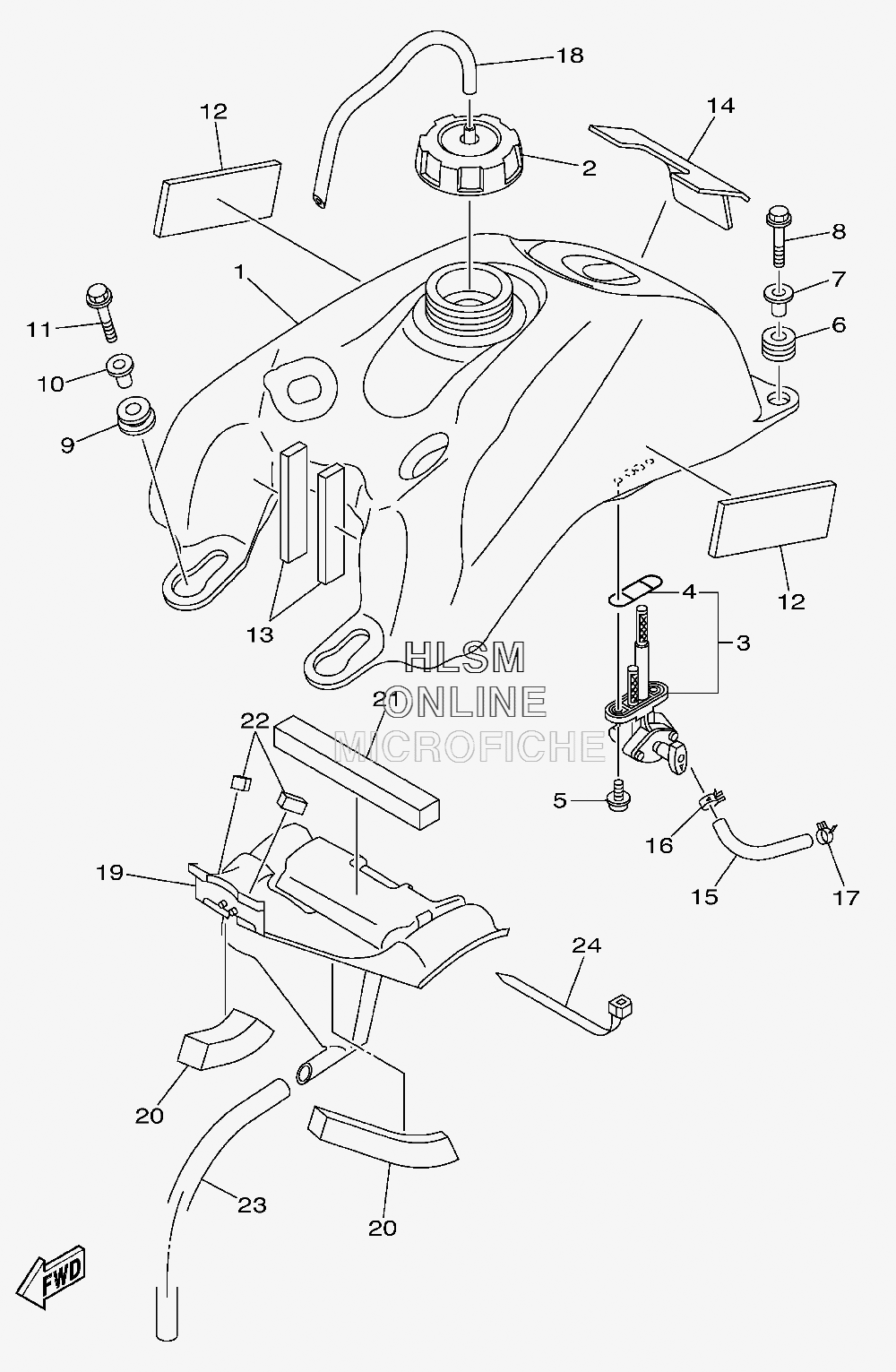

FUEL TANK для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
14D3-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
34D3-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
41P6-24512-00-00 O-RINGO-RING
-
590149-06108-00 SCREWSCREW
-
690480-18290-00 GROMMETGROMMET
-
790387-066J1-00 COLLARCOLLAR
-
895802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
990480-18004-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1195802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
125TG-21541-00-00 DAMPER 1DAMPER 1
-
134D3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
144D3-21541-00-00 DAMPER 1DAMPER 1
-
1590445-11050-00 HOSE (L105)HOSE (L105)
-
1690467-09037-00 CLIPCLIP
-
1790467-100A2-00 CLIPCLIP
-
1890445-08376-00 HOSEHOSE
-
194D3-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
204D3-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
214D3-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
224D3-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
2390445-16007-00 HOSE (L400)HOSE (L400)
-
2490464-15195-00 CLAMPCLAMP
