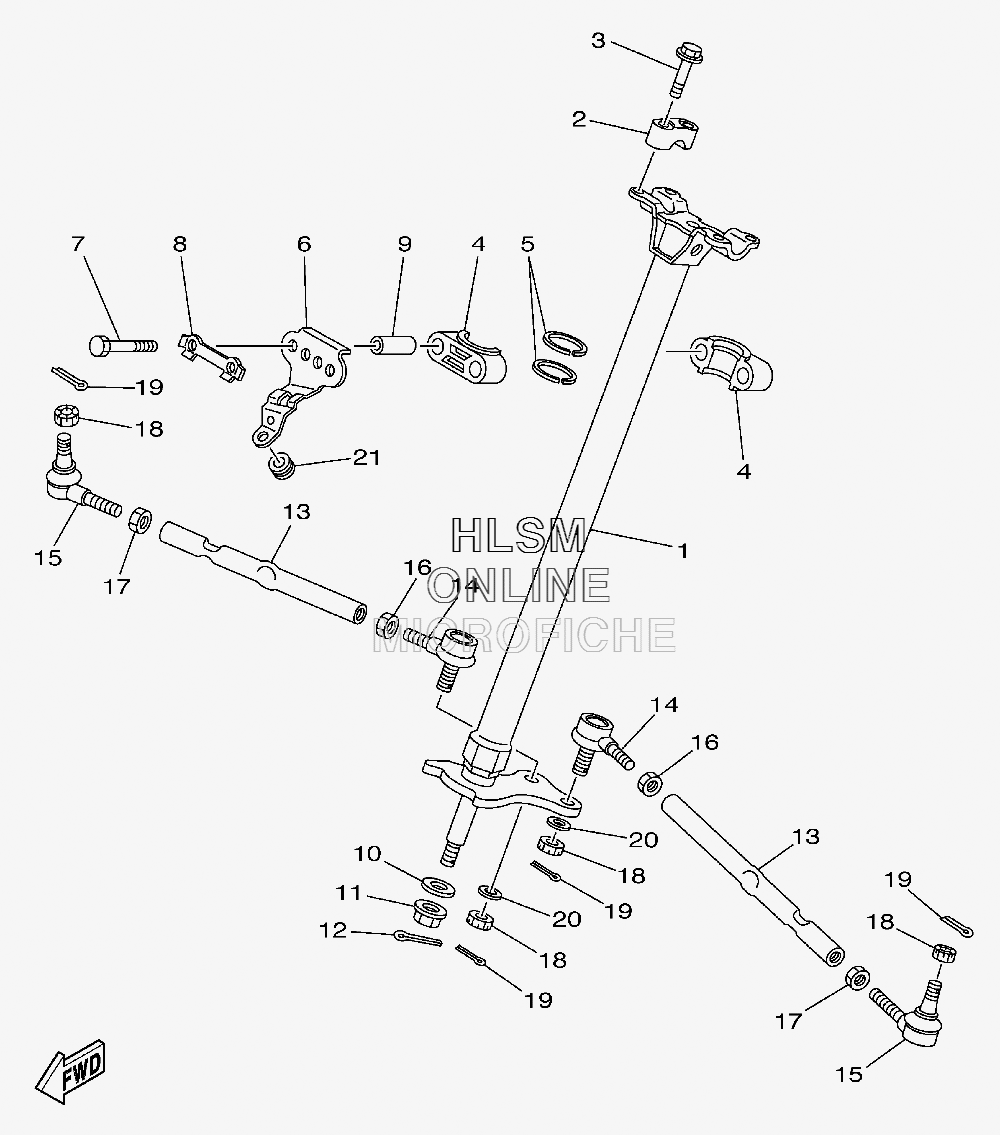

STEERING для Yamaha RAPTOR 250 - 2010 года выпуска
-
№АртикулНазвание
-
14D3-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
28K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
395822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
41UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
593112-31011-00 OIL SEALOIL SEAL
-
64D3-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
797022-08055-00 BOLT,HEXAGONBOLT,HEXAGON
-
81UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
990387-090R0-00 COLLARCOLLAR
-
1090201-10036-00 WASHER, PLATEWASHER, PLATE
-
1190185-10019-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1291401-20020-00 PIN, COTTERPIN, COTTER
-
134D3-23831-00-00 ROD, TIEROD, TIE
-
141UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
151UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1695302-10700-00 NUTNUT
-
1790170-10010-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
1890171-10001-00 NUT, CASTLENUT, CASTLE
-
1991401-20020-00 PIN, COTTERPIN, COTTER
-
2090209-10229-00 WASHERWASHER
-
2190480-15235-00 GROMMETGROMMET
