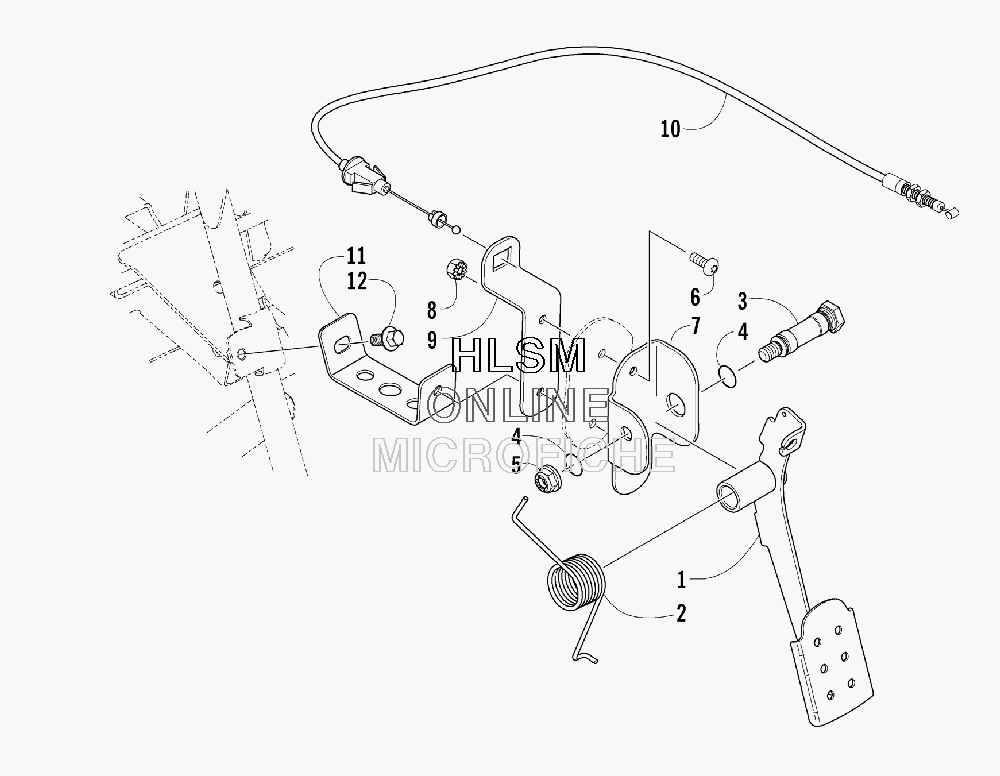

ACCELERATOR ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10502-974 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
20405-233 SPRINGSPRING
-
30402-872 AXLEAXLE
-
41602-213 O-RINGO-RING
-
58422-002 NUTNUT
-
68468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
70502-991 BRACKET,ACCELERATOR-PAINTEDBRACKET,ACCELERATOR-PAINTED
-
80623-038 NUT, HEX W/WASHERNUT, HEX W/WASHER
-
90502-990 BRACKET, THROTTLE CABLE-PAINTEDBRACKET, THROTTLE CABLE-PAINTED
-
100487-048 CABLE, ACCELERATORCABLE, ACCELERATOR
-
112506-476 SUPPORT, PEDAL-PAINTED-BLACKSUPPORT, PEDAL-PAINTED-BLACK
-
128408-816 SCREWSCREW
