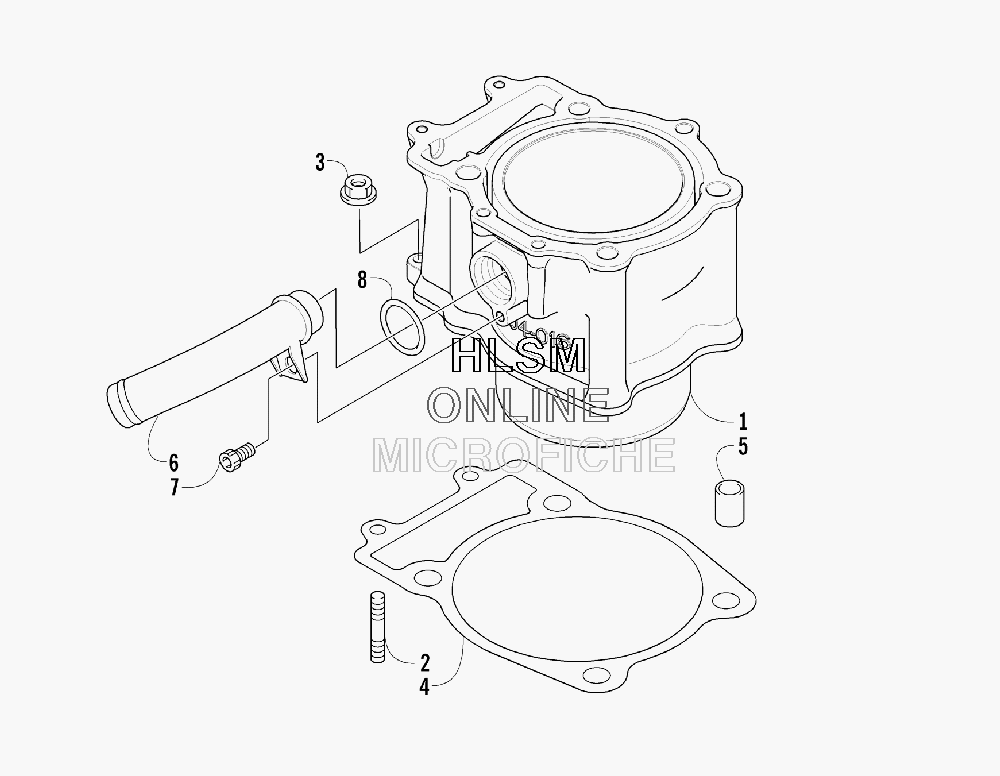

CYLINDER ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10804-016 CYLINDERCYLINDER
-
20827-002 BOLT, STUDBOLT, STUD
-
38424-604 NUTNUT
-
40830-084 GASKET, BASEGASKET, BASE
-
50829-002 PIN, DOWELPIN, DOWEL
-
60804-002 UNION, WATER HOSEUNION, WATER HOSE
-
78468-612 SCREW,MACH-TSPNH M6X1.0X12 CL8.8 BLKSCREW,MACH-TSPNH M6X1.0X12 CL8.8 BLK
-
80830-007 O-RINGO-RING
