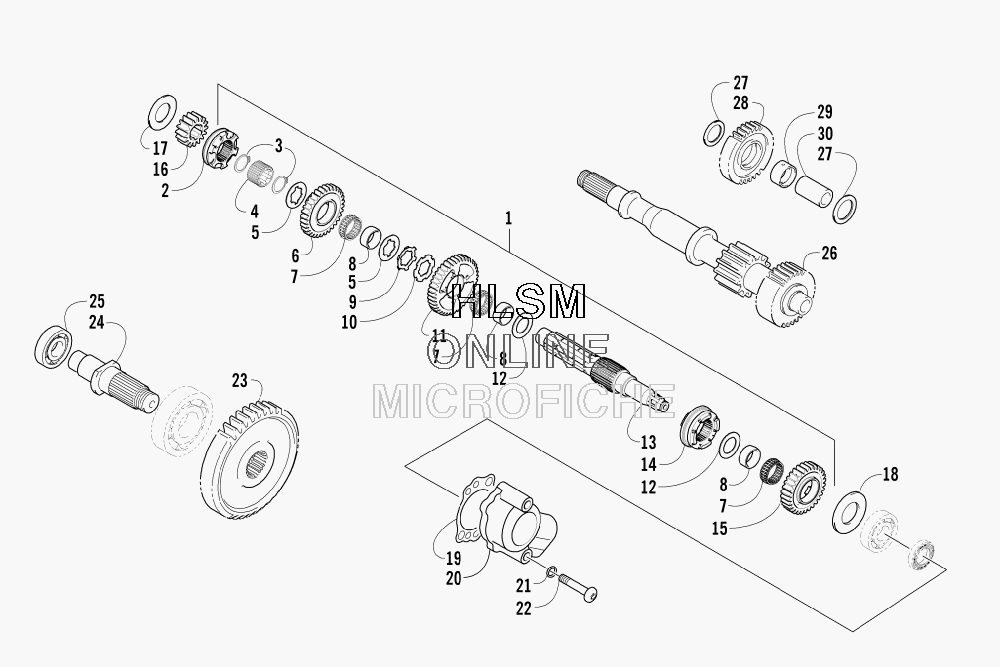

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10822-048 COUNTERSHAFT ASSEMBLY (INC. 2-16)COUNTERSHAFT ASSEMBLY (INC. 2-16)
-
20822-014 ...DOG, REVERSE DRIVEN GEAR...DOG, REVERSE DRIVEN GEAR
-
30831-011 ...CIRCLIP...CIRCLIP
-
40822-045 ...SPACER, REVERSE DRIVEN GEAR...SPACER, REVERSE DRIVEN GEAR
-
50828-008 ...WASHER...WASHER
-
60822-013 ...GEAR, REVERSE DRIVEN...GEAR, REVERSE DRIVEN
-
70832-011 ...BEARING...BEARING
-
80822-005 ...BUSHING...BUSHING
-
90828-014 ...WASHER, LOCK...WASHER, LOCK
-
100828-015 ...WASHER, LOCK...WASHER, LOCK
-
110822-004 ...GEAR, DRIVEN - LOW...GEAR, DRIVEN - LOW
-
120822-046 ...WASHER, DRIVEN GEAR...WASHER, DRIVEN GEAR
-
130822-003 ...COUNTERSHAFT...COUNTERSHAFT
-
140822-007 ...DOG, SLIDING...DOG, SLIDING
-
150822-006 ...GEAR, DRIVEN - HIGH...GEAR, DRIVEN - HIGH
-
160822-008 ...GEAR, DRIVE...GEAR, DRIVE
-
170828-010 WASHER, DRIVE GEAR - RIGHTWASHER, DRIVE GEAR - RIGHT
-
180828-011 WASHER, DRIVE GEAR - LEFTWASHER, DRIVE GEAR - LEFT
-
190830-129 GASKETGASKET
-
200822-093 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
218468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
220830-107 SEAL, FASTENERSEAL, FASTENER
-
230822-009 GEAR, DRIVENGEAR, DRIVEN
-
240822-067 SHAFT, OUTPUTSHAFT, OUTPUT
-
250832-014 BEARINGBEARING
-
260822-001 DRIVESHAFTDRIVESHAFT
-
270828-016 WASHER, REVERSE IDLE GEARWASHER, REVERSE IDLE GEAR
-
280822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
290822-012 BUSHING, REVERSE IDLE GEARBUSHING, REVERSE IDLE GEAR
-
300822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
