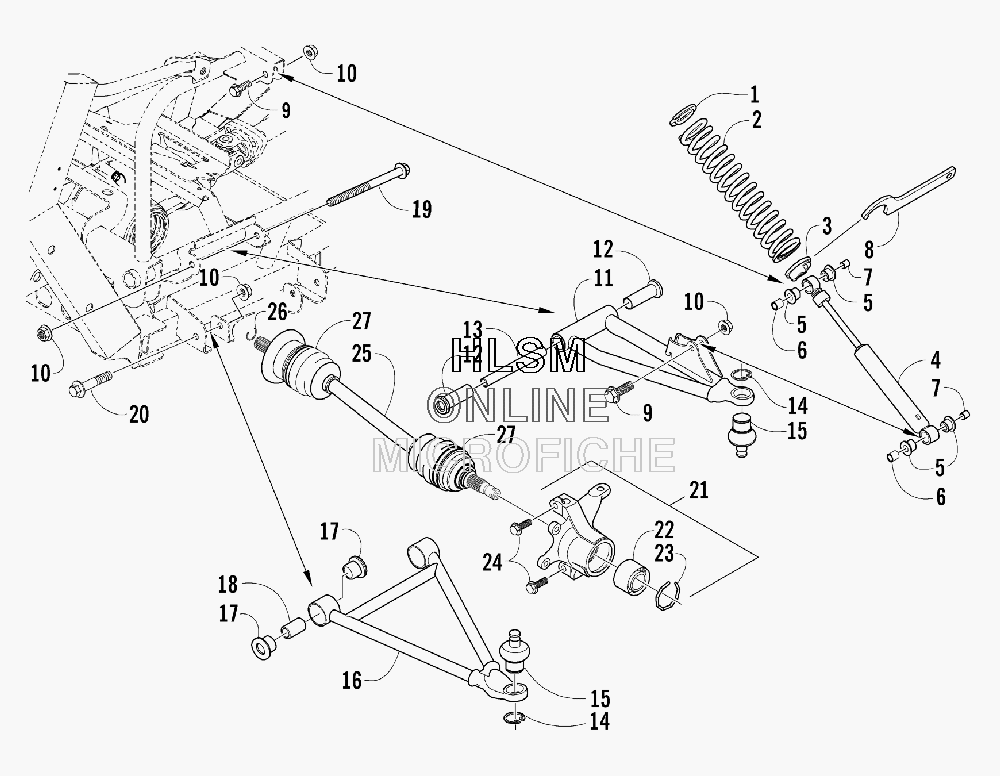

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
20403-161 SPRING, SHOCK ABSORBER (220LB/IN X 13.3) - BLACKSPRING, SHOCK ABSORBER (220LB/IN X 13.3) - BLACK
-
30403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
40403-147 SHOCK ABSORBER - FRONT (INC. 5-6)SHOCK ABSORBER - FRONT (INC. 5-6)
-
50603-955 ...BUSHING...BUSHING
-
61603-209 ...SLEEVE...SLEEVE
-
70404-116 SLEEVE, SHOCKSLEEVE, SHOCK
-
80441-587 WRENCH, SPANNER-66MMWRENCH, SPANNER-66MM
-
98409-040 SCREW, CAPSCREW, CAP
-
108428-002 NUT, LOCKNUT, LOCK
-
110503-196 A-ARM, UPPER RIGHT - BLACK (INC. 12-15)A-ARM, UPPER RIGHT - BLACK (INC. 12-15)
-
110503-197 A-ARM, UPPER LEFT - BLACK (INC. 12-15)A-ARM, UPPER LEFT - BLACK (INC. 12-15)
-
120403-081 ...BUSHING...BUSHING
-
130403-080 ...COLLAR...COLLAR
-
140423-009 ...CLIP, BALL JOINT...CLIP, BALL JOINT
-
150405-115 ...BALL JOINT...BALL JOINT
-
160503-252 A-ARM, LOWER RIGHT - BLACK (INC. 14-15 AND 17-18)A-ARM, LOWER RIGHT - BLACK (INC. 14-15 AND 17-18)
-
160503-253 A-ARM, LOWER LEFT - BLACK (INC. 14-15 AND 17-18)A-ARM, LOWER LEFT - BLACK (INC. 14-15 AND 17-18)
-
170403-115 ...BUSHING...BUSHING
-
180403-114 ...COLLAR...COLLAR
-
190423-723 SCREW, CAP-HFH M10-1.25X170 Z & Y CL 10.9SCREW, CAP-HFH M10-1.25X170 Z & Y CL 10.9
-
208409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & YSCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y
-
210505-480 KNUCKLE - ASSEMBLY - RIGHT (INC. 22-23)KNUCKLE - ASSEMBLY - RIGHT (INC. 22-23)
-
210505-481 KNUCKLE - ASSEMBLY - LEFT (INC. 22-23)KNUCKLE - ASSEMBLY - LEFT (INC. 22-23)
-
221402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
230423-423 ...RING, RETAINING...RING, RETAINING
-
248409-030 SCREW, CAPSCREW, CAP
-
250502-733 AXLE - FRONT - LEFT (INC. 26-27)AXLE - FRONT - LEFT (INC. 26-27)
-
250502-734 AXLE - FRONT - RIGHT (INC. 26-27)AXLE - FRONT - RIGHT (INC. 26-27)
-
261441-109 ...CLIP, RETAINING...CLIP, RETAINING
-
270436-276 ...REPAIR KIT, BOOT - FRONT AXLE...REPAIR KIT, BOOT - FRONT AXLE
