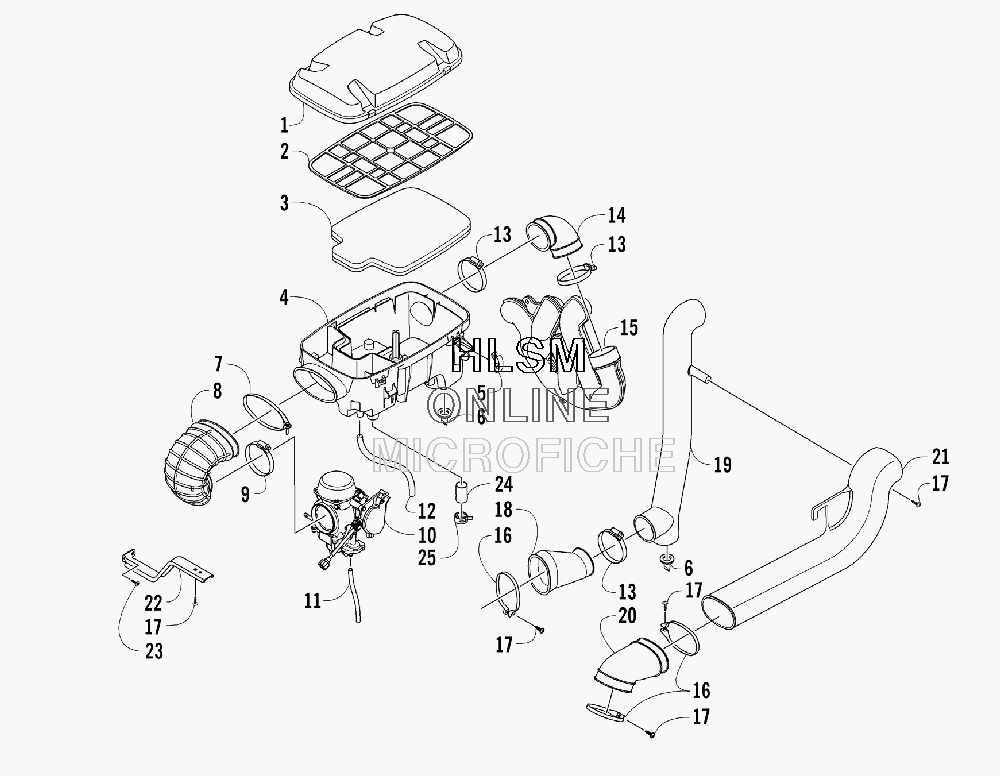

AIR INTAKE ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10470-755 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-558 FILTER, AIRFILTER, AIR
-
30470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
40470-675 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
60470-442 VALVE, DRAINVALVE, DRAIN
-
70423-554 CLAMP, BOOTCLAMP, BOOT
-
80470-525 BOOT, CARBURETORBOOT, CARBURETOR
-
90423-019 CLAMP, HOSECLAMP, HOSE
-
100470-742 CARBURETOR, CVK36-AECARBURETOR, CVK36-AE
-
110510-593 HOSE, CARBURETOR DRAINHOSE, CARBURETOR DRAIN
-
120410-079 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
130423-380 CLAMP, BOOTCLAMP, BOOT
-
140413-098 BOOT, AIR-INBOOT, AIR-IN
-
150513-024 DUCT, AIR-INDUCT, AIR-IN
-
160423-550 CLAMPCLAMP
-
170423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180413-049 BOOT, DUCTBOOT, DUCT
-
190413-188 DUCTDUCT
-
200413-109 BOOT, AIR-OUT - CLUTCHBOOT, AIR-OUT - CLUTCH
-
210413-189 DUCT, AIR-OUT - CLUTCHDUCT, AIR-OUT - CLUTCH
-
222506-651 BRACKET, MOUNT-AIR BOX-PAINTED BLACKBRACKET, MOUNT-AIR BOX-PAINTED BLACK
-
230623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW,SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
240423-766 CAP, DRAIN - HOUSINGCAP, DRAIN - HOUSING
-
251623-287 CLAMP, HOSECLAMP, HOSE
