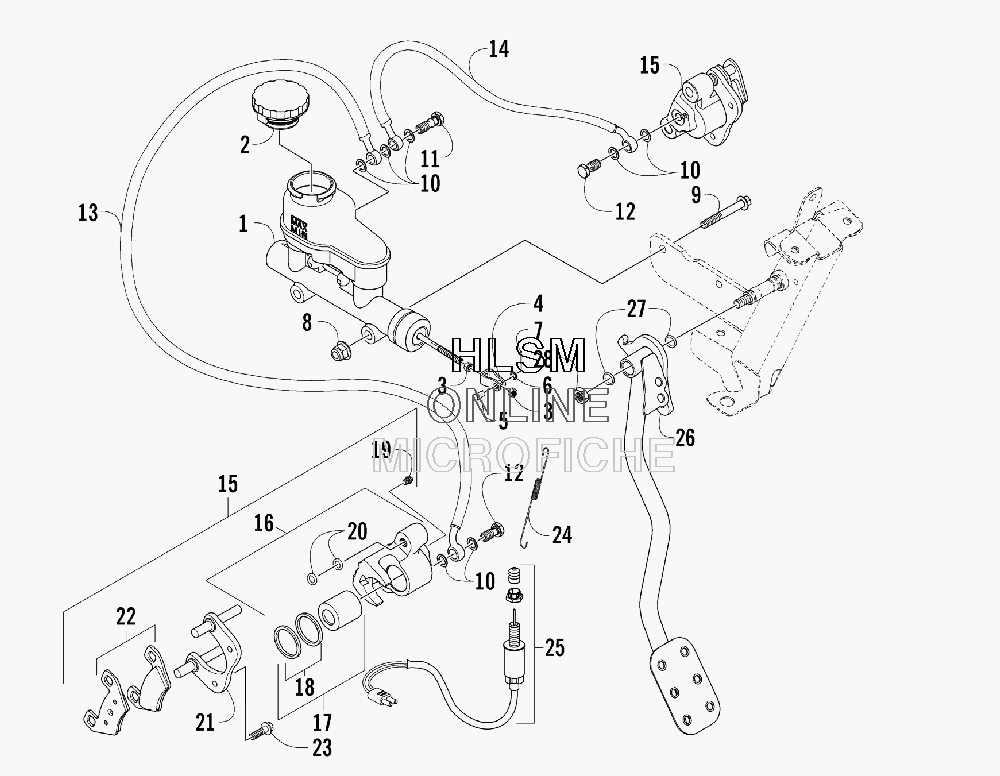

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10502-786 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 2-4)CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 2-4)
-
20405-225 ...CAP, BRAKE FLUID RESERVOIR...CAP, BRAKE FLUID RESERVOIR
-
30402-592 ...NUT, CLEVIS...NUT, CLEVIS
-
41402-520 ...CLEVIS...CLEVIS
-
51402-377 PIN, CLEVISPIN, CLEVIS
-
68050-217 WASHERWASHER
-
70117-868 PIN, COTTERPIN, COTTER
-
88424-802 NUTNUT
-
98408-860 SCREW, CAPSCREW, CAP
-
100423-178 WASHER, CRUSHWASHER, CRUSH
-
110423-610 BOLT, BANJO-FITTING - DOUBLEBOLT, BANJO-FITTING - DOUBLE
-
120423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
131402-389 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
141402-290 HOSE, BRAKE - FRONT RIGHTHOSE, BRAKE - FRONT RIGHT
-
150502-958 KIT, CALIPER ASSEMBLY-RH (0502-948) (INC. 16-22)KIT, CALIPER ASSEMBLY-RH (0502-948) (INC. 16-22)
-
150502-959 KIT, CALIPER ASSEMBLY-LH (0502-949) (INC. 16-22)KIT, CALIPER ASSEMBLY-LH (0502-949) (INC. 16-22)
-
160502-603 KIT-HOUSING,PISTONS,SEALS,BLEADER-RH (INC. 17-19)KIT-HOUSING,PISTONS,SEALS,BLEADER-RH (INC. 17-19)
-
160502-611 KIT-HOUSING,PISTONS,SEALS,BLEADER-LH (INC. 17-19)KIT-HOUSING,PISTONS,SEALS,BLEADER-LH (INC. 17-19)
-
170502-606 ......SET,PISTONS/SEALS (INC. 18)......SET,PISTONS/SEALS (INC. 18)
-
180502-607 ......SET, SEALS-CALIPER (FC)......SET, SEALS-CALIPER (FC)
-
190502-609 ......VALVE, BLEED......VALVE, BLEED
-
200502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
210502-960 ...KIT, BRACKET ASSEMBLY (9.95" DISC)...KIT, BRACKET ASSEMBLY (9.95" DISC)
-
220502-875 ...KIT-PAD,BRAKE-SET (TYPE 97)...KIT-PAD,BRAKE-SET (TYPE 97)
-
238408-825 SCREW, CAP-HFH M8X1.25X25 CL8.8 Z & YSCREW, CAP-HFH M8X1.25X25 CL8.8 Z & Y
-
240502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
250409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
261502-042 LEVER, BRAKE-BLACKLEVER, BRAKE-BLACK
-
271602-213 O-RINGO-RING
-
288427-002 NUTNUT
