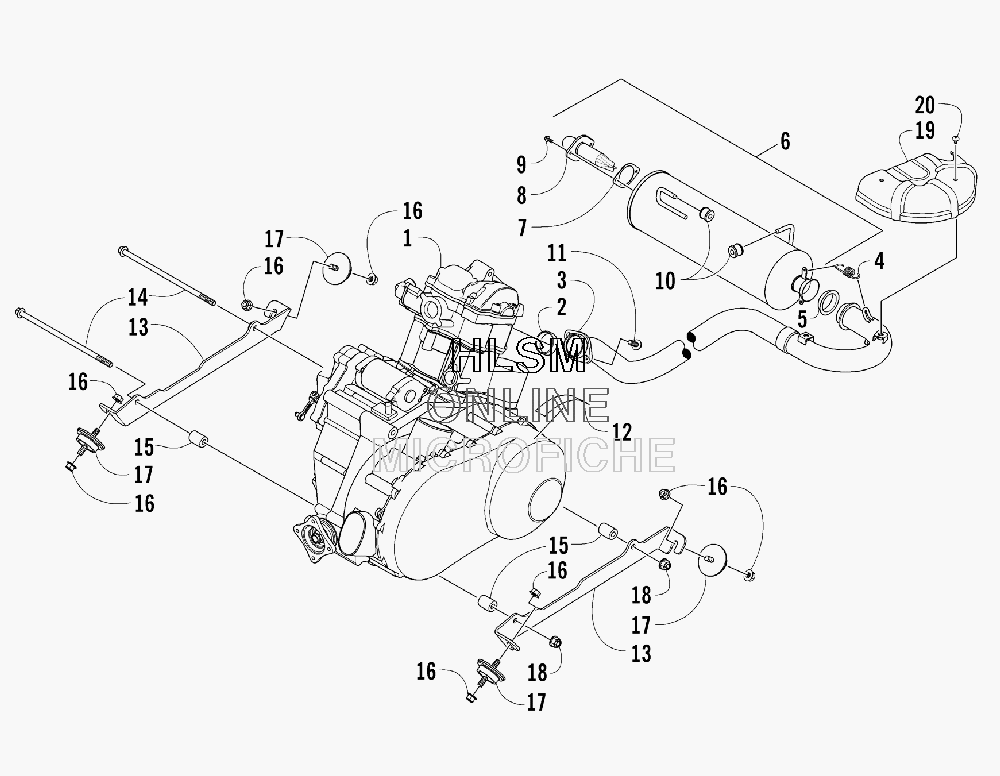

ENGINE AND EXHAUST для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10800-049 ENGINE, A650H H1-ASSY (PRLR)ENGINE, A650H H1-ASSY (PRLR)
-
20412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
30512-427 PIPE, EXHAUST-BLACKPIPE, EXHAUST-BLACK
-
40612-668 SPRINGSPRING
-
50412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
60512-401 MUFFLER - ASSEMBLY (BLACK) (INC. 7-9)MUFFLER - ASSEMBLY (BLACK) (INC. 7-9)
-
70412-438 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
80512-432 ...SPARK ARRESTER-BLACK (SERVICE PART)...SPARK ARRESTER-BLACK (SERVICE PART)
-
98408-616 ...SCREW, CAP...SCREW, CAP
-
100412-215 BUSHING, EXHAUST PIPEBUSHING, EXHAUST PIPE
-
118408-820 SCREW, CAPSCREW, CAP
-
120411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
131506-998 BRACKET, ENGINE - RIGHT (BLACK)BRACKET, ENGINE - RIGHT (BLACK)
-
131506-999 BRACKET, ENGINE - LEFT (BLACK)BRACKET, ENGINE - LEFT (BLACK)
-
140423-537 BOLTBOLT
-
150423-042 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
168424-002 NUTNUT
-
170408-014 MOUNT, ENGINEMOUNT, ENGINE
-
188428-002 NUTNUT
-
190412-462 SHIELD, HEATSHIELD, HEAT
-
208477-610 SCREW, MACH-TSTRH M6X1.0X10 Z & BLKSCREW, MACH-TSTRH M6X1.0X10 Z & BLK
