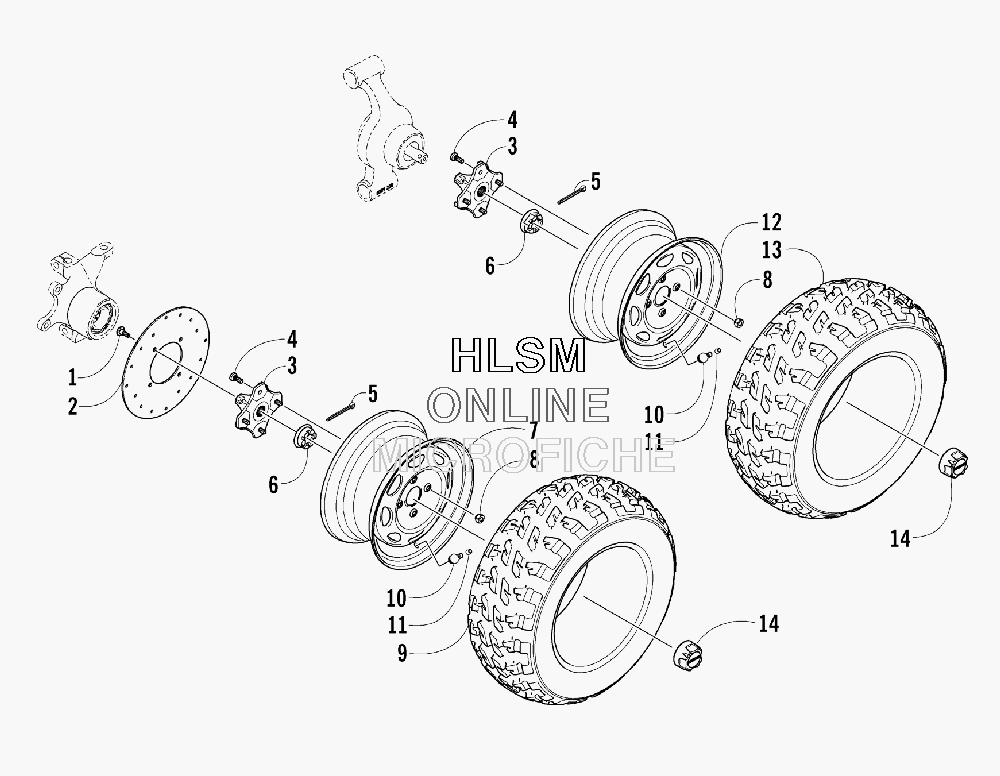

WHEEL AND TIRE ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, MACHINESCREW, MACHINE
-
21402-455 DISC, BRAKEDISC, BRAKE
-
30502-980 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
30503-322 HUB, WHEEL - REAR (INC. 4)HUB, WHEEL - REAR (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50423-407 PIN, COTTERPIN, COTTER
-
60423-607 NUT, CASTLENUT, CASTLE
-
71402-511 WHEEL, FRONT-GRAY (14X6.5)WHEEL, FRONT-GRAY (14X6.5)
-
80423-408 NUT, MOUNTING - WHEEL - CHROMENUT, MOUNTING - WHEEL - CHROME
-
91402-392 TIRE - FRONTTIRE - FRONT
-
100402-064 STEM, VALVE (INC. 11)STEM, VALVE (INC. 11)
-
110402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
121402-514 WHEEL, REAR-GRAY (14X8.0)WHEEL, REAR-GRAY (14X8.0)
-
131402-393 TIRE, GOODYEAR MTR-26X11R14NHS - REARTIRE, GOODYEAR MTR-26X11R14NHS - REAR
-
140403-181 CAP, WHEELCAP, WHEEL
