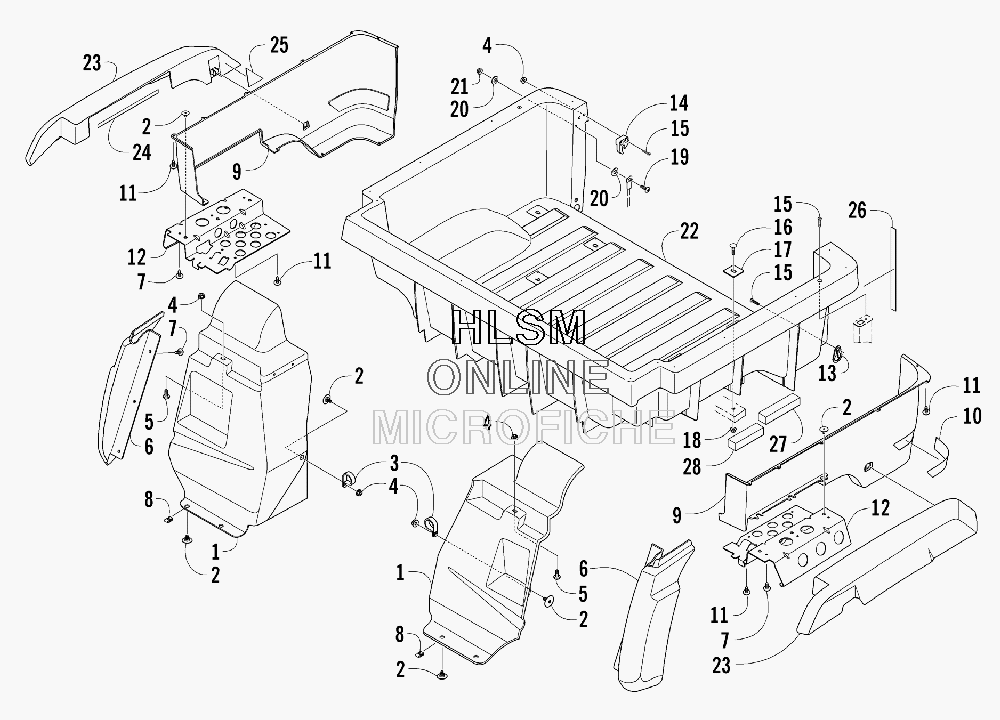

REAR BODY PANEL AND CARGO BOX ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
12406-070 PANEL, SPLASH - REAR - RIGHTPANEL, SPLASH - REAR - RIGHT
-
12406-071 PANEL, SPLASH - REAR - LEFTPANEL, SPLASH - REAR - LEFT
-
20423-101 SCREW, BODYSCREW, BODY
-
30423-403 CLAMP, TUBECLAMP, TUBE
-
48424-602 NUT, HEXNUT, HEX
-
58476-616 SCREW, MACHINESCREW, MACHINE
-
61406-810 FENDER, REAR - LOWER - RIGHT (GREEN)FENDER, REAR - LOWER - RIGHT (GREEN)
-
61406-809 FENDER, REAR - LOWER - LEFT (GREEN)FENDER, REAR - LOWER - LEFT (GREEN)
-
70623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
80423-577 CLIP, UCLIP, U
-
91406-762 PANEL, BOX-RIGHT-BLACK (INC. 10)PANEL, BOX-RIGHT-BLACK (INC. 10)
-
91406-761 PANEL, BOX-LEFT-BLACK (INC. 10)PANEL, BOX-LEFT-BLACK (INC. 10)
-
101411-128 ...DECAL, REFLECTOR - REAR - RIGHT...DECAL, REFLECTOR - REAR - RIGHT
-
101411-129 ...DECAL, REFLECTOR - REAR - LEFT...DECAL, REFLECTOR - REAR - LEFT
-
110423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
121506-776 BRACKET, FENDER SUPPORT (BLACK) - RIGHTBRACKET, FENDER SUPPORT (BLACK) - RIGHT
-
121506-777 BRACKET, FENDER SUPPORT (BLACK) - LEFTBRACKET, FENDER SUPPORT (BLACK) - LEFT
-
131506-539 BRACKET, TAILGATE (BLACK)BRACKET, TAILGATE (BLACK)
-
142506-664 STRIKER, TAILGATE-RH-COATEDSTRIKER, TAILGATE-RH-COATED
-
142506-665 STRIKER, TAILGATE-LH-COATEDSTRIKER, TAILGATE-LH-COATED
-
158474-630 SCREW, MACH-TSFH M6X1.0X30 CL8.8 BLKSCREW, MACH-TSFH M6X1.0X30 CL8.8 BLK
-
160423-623 BOLT, CARRIAGEBOLT, CARRIAGE
-
171506-933 PLATE, RETAINING-BLACK (MATTE)PLATE, RETAINING-BLACK (MATTE)
-
188424-802 NUT, HEXNUT, HEX
-
198476-620 SCREW, MACHINESCREW, MACHINE
-
208050-217 WASHERWASHER
-
210624-250 NUT, LOCKNUT, LOCK
-
222406-417 BOX, CARGOBOX, CARGO
-
232506-660 FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (GREEN)FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (GREEN)
-
232506-661 FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (GREEN)FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (GREEN)
-
240417-007 ...STRIP, FOAM...STRIP, FOAM
-
250417-008 ...PAD, FOAM...PAD, FOAM
-
260417-006 STRIP, FOAMSTRIP, FOAM
-
270417-010 FOAM, CARGO BOXFOAM, CARGO BOX
-
280417-011 FOAM, CARGO BOXFOAM, CARGO BOX
