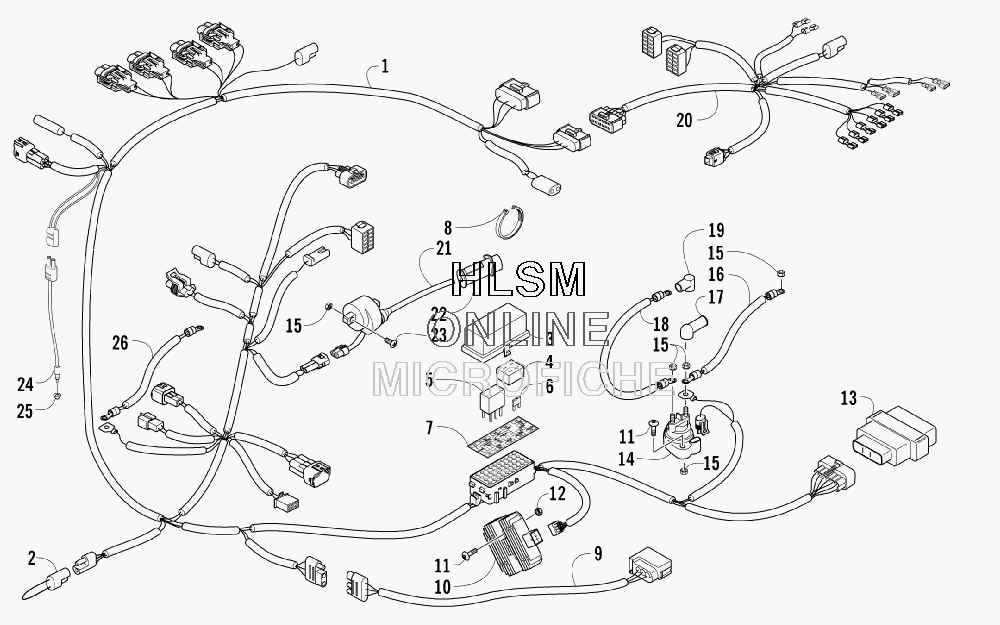

WIRING HARNESS ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
10486-254 HARNESS, MAIN (INC. 2-7)HARNESS, MAIN (INC. 2-7)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-033 ...RELAY (5-PIN) - 20 AMP...RELAY (5-PIN) - 20 AMP
-
50430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
60430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
60430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
60430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
71411-576 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
80123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
90486-176 HARNESS ADAPTER, TAILLIGHTHARNESS ADAPTER, TAILLIGHT
-
100824-037 REGULATOR, VOLTAGE (W/TACH SIGNAL)REGULATOR, VOLTAGE (W/TACH SIGNAL)
-
118476-625 SCREW, MACHINESCREW, MACHINE
-
128424-602 NUT, HEXNUT, HEX
-
130824-048 CDI UNITCDI UNIT
-
140445-058 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160445-061 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
170645-327 BOOT, TERMINALBOOT, TERMINAL
-
180445-049 CABLE, BATTERY/SOLENOID (INC. ONE NO. 19)CABLE, BATTERY/SOLENOID (INC. ONE NO. 19)
-
190645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
200486-255 HARNESS, CONSOLEHARNESS, CONSOLE
-
210824-036 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
220824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
238476-620 SCREW, MACHINESCREW, MACHINE
-
240409-009 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
250402-991 RETAINER, BRAKE SWITCHRETAINER, BRAKE SWITCH
-
260445-050 CABLE, BATTERY/ENGINECABLE, BATTERY/ENGINE
