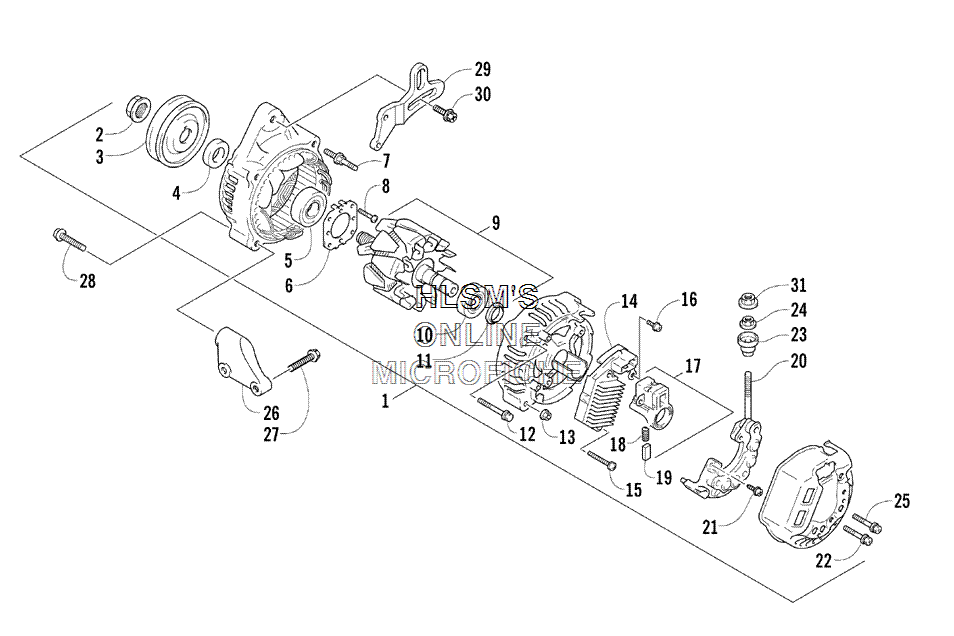

ALTERNATOR ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
13006-261 ALTERNATOR ASSEMBLY (INC. 2, 25)ALTERNATOR ASSEMBLY (INC. 2, 25)
-
23006-276 NUTNUT
-
33006-250 PULLEYPULLEY
-
43006-277 SPACERSPACER
-
53006-263 BEARINGBEARING
-
63006-264 RETAINER, BEARINGRETAINER, BEARING
-
73006-266 BOLT, STUDBOLT, STUD
-
83006-265 SCREWSCREW
-
93006-610 ROTOR ASSEMBLY (INC. 10, 11)ROTOR ASSEMBLY (INC. 10, 11)
-
103006-267 BEARINGBEARING
-
113006-268 COVER, BEARINGCOVER, BEARING
-
123006-272 BOLTBOLT
-
133004-853 NUTNUT
-
143006-841 REGULATOR, ALTERNATOR, ASSEMBLYREGULATOR, ALTERNATOR, ASSEMBLY
-
153004-379 SCREWSCREW
-
160694-025 SCREWSCREW
-
173006-612 BRUSH HOLDER ASSEMBLY (INC. 18, 19)BRUSH HOLDER ASSEMBLY (INC. 18, 19)
-
183006-271 SPRING, BRUSHSPRING, BRUSH
-
193006-270 BRUSHBRUSH
-
203006-611 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
213004-645 SCREWSCREW
-
223006-274 BOLTBOLT
-
233006-262 INSULATOR, TERMINALINSULATOR, TERMINAL
-
243004-851 NUTNUT
-
253006-613 BOLTBOLT
-
263006-144 BRACKET, ALTERNATORBRACKET, ALTERNATOR
-
270693-397 BOLTBOLT
-
283006-376 BOLTBOLT
-
293006-143 ARM, ADJUSTER, ALTERNATORARM, ADJUSTER, ALTERNATOR
-
303006-108 BOLTBOLT
-
313004-488 NUTNUT
