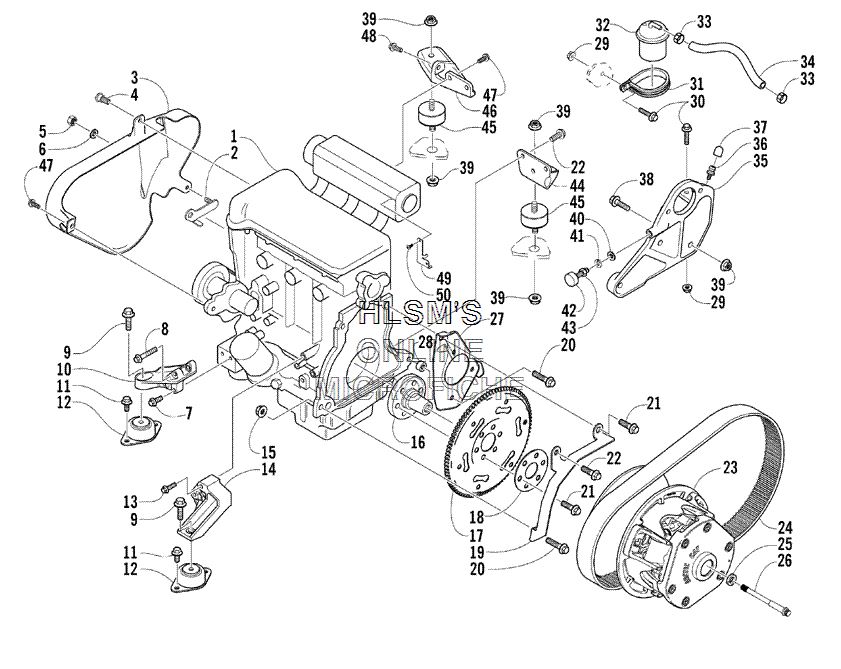

ENGINE AND RELATED PARTS для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
10662-397 ENGINEENGINE
-
21706-930 BRACKET, BELT COVERBRACKET, BELT COVER
-
32606-720 COVER, ENGINE BELTCOVER, ENGINE BELT
-
48408-616 SCREW, SHOULDERSCREW, SHOULDER
-
50624-250 NUT, LOCKNUT, LOCK
-
68050-217 WASHERWASHER
-
78408-840 SCREW, CAPSCREW, CAP
-
88408-870 SCREW, CAPSCREW, CAP
-
98020-220 SCREW, CAPSCREW, CAP
-
100708-432 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
110623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120608-347 MOUNT, ENGINE (FRONT)MOUNT, ENGINE (FRONT)
-
138408-850 SCREW, CAPSCREW, CAP
-
140708-464 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
158428-002 NUTNUT
-
161670-245 ADAPTER, PTOADAPTER, PTO
-
170745-192 GEAR, RINGGEAR, RING
-
180745-187 PLATE, RING GEARPLATE, RING GEAR
-
190745-164 GUARD, RING GEARGUARD, RING GEAR
-
208409-040 SCREW, CAPSCREW, CAP
-
218409-030 SCREW, CAPSCREW, CAP
-
228409-020 SCREW, CAPSCREW, CAP
-
230725-462 CLUTCH, DRIVECLUTCH, DRIVE
-
240627-028 BELT, DRIVEBELT, DRIVE
-
250623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
260623-804 BOLT, DRIVE CLUTCHBOLT, DRIVE CLUTCH
-
270745-162 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
281623-063 BUSHINGBUSHING
-
298048-366 NUT, LOCKNUT, LOCK
-
308020-040 SCREW, CAPSCREW, CAP
-
311623-134 CLAMP, FUEL FILTERCLAMP, FUEL FILTER
-
321670-469 FILTER, FUELFILTER, FUEL
-
330610-419 CLAMP, HOSECLAMP, HOSE
-
340610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
350708-409 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 36, 37)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 36, 37)
-
361623-010 FITTING, GREASEFITTING, GREASE
-
370623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
388020-224 SCREW, CAPSCREW, CAP
-
398048-486 NUT, LOCKNUT, LOCK
-
408050-277 WASHERWASHER
-
418051-277 WASHER, LOCKWASHER, LOCK
-
420608-358 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
438042-516 NUTNUT
-
440708-128 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
450608-118 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
460708-126 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
478408-820 SCREW, CAPSCREW, CAP
-
488408-825 SCREW, CAPSCREW, CAP
-
492706-751 BRACKET, FILLER NECKBRACKET, FILLER NECK
-
508477-610 SCREW, CAPSCREW, CAP
