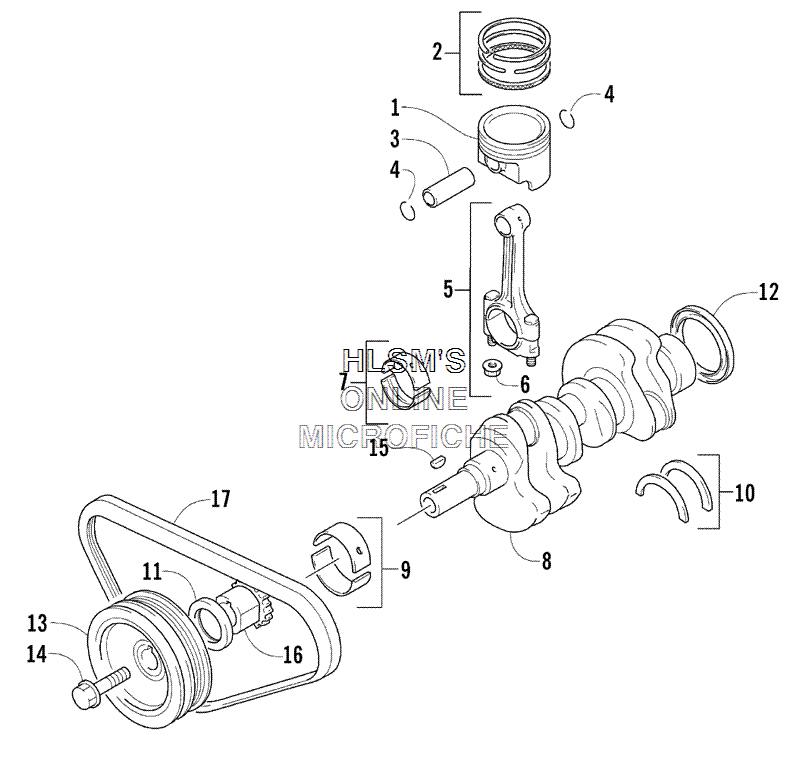

CRANKSHAFT ASSEMBLY для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
13006-761 PISTON (MARK 1)PISTON (MARK 1)
-
13006-762 PISTON (MARK 2)PISTON (MARK 2)
-
13006-760 PISTON (OVERSIZED 0.5 MM)PISTON (OVERSIZED 0.5 MM)
-
23006-859 RING SET, PISTONRING SET, PISTON
-
23006-860 RING SET, PISTON (OVERSIZED 0.5 MM)RING SET, PISTON (OVERSIZED 0.5 MM)
-
33006-763 PIN, PISTONPIN, PISTON
-
43423-069 CIRCLIPCIRCLIP
-
53006-764 CONNECTING ROD ASSEMBLY (INC. 6)CONNECTING ROD ASSEMBLY (INC. 6)
-
63006-110 NUTNUT
-
73006-861 BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
83006-151 CRANKSHAFTCRANKSHAFT
-
93006-863 BEARING SET (GREEN)BEARING SET (GREEN)
-
93006-864 BEARING SET (BLACK)BEARING SET (BLACK)
-
93006-865 BEARING SET (NO COLOR)BEARING SET (NO COLOR)
-
93006-866 BEARING SET (YELLOW)BEARING SET (YELLOW)
-
93006-862 BEARING SET (BROWN)BEARING SET (BROWN)
-
103006-157 BEARING SET, CRANKSHAFT THRUSTBEARING SET, CRANKSHAFT THRUST
-
103006-299 BEARING SET, CRANKSHAFT THRUST (UNDERSIZED)BEARING SET, CRANKSHAFT THRUST (UNDERSIZED)
-
110693-562 SEAL, OIL, CRANKSHAFT (FRONT)SEAL, OIL, CRANKSHAFT (FRONT)
-
123006-124 SEAL, OIL, CRANKSHAFT (REAR)SEAL, OIL, CRANKSHAFT (REAR)
-
133006-158 PULLEY, CRANKSHAFTPULLEY, CRANKSHAFT
-
143006-159 BOLTBOLT
-
153004-540 KEYKEY
-
163006-765 SPROCKET, CRANKSHAFT TIMINGSPROCKET, CRANKSHAFT TIMING
-
173006-295 BELT, ENGINEBELT, ENGINE
